Item specifics
  • Dimensions (L x W x D)(mm): 18*11*8CM
  • High Definition: 1080P(Full-HD)
  • Special Features: Waterproof / Weatherproof
  • Technology: Infrared
  • Power Supply(V): DC12V (Not included)
  • Minimum Illumination(Lux): 0.001Lux / F1.2
  • Connectivity: Closed System/CCTV Wired
  • Sensor: CMOS
  • Model Number: BS-BM24HTC200F
  • Brand Name: BESAFE
  • Sensor Brand: SONY
  • Supported Operating Systems: Windows 7
  • IR Distance(m): 18 pcs LED 20Meter range(New IR LED)
  • Style: Bullet Camera
  • Lens (mm): 3.6mm
  • Supported Mobile Systems: Android
  • Video Compression Format: H.264
  • Type: Video Camera

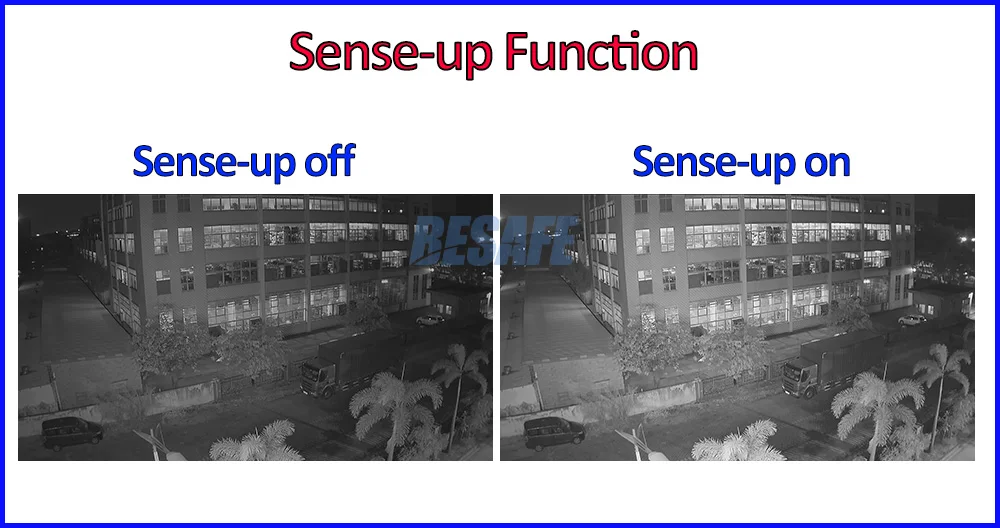

  • Special functions : DWDR, 3D NR, Sense-up
  • OSD Language : English, Russian, Espanol, Portuguese, French, German, Hebrew...
  • Power Supply : DC12V (Not included)
  • Lens (mm): 3.6mm HD Lens /F2.0 (6mm is optional)
  • Ships From: China
Product Description
To Russian friends:
1. Please leave your full name(first name, middle name, last name) for sending order.
2. Besides, if more pcs we can send order by SPSR, which will be faster.
Please let us know when ordering if you have any problems about SPSR.
Thank you!
This is 1080P AHD, CVI, TVI1.0 CVBS 4in1 camera, camera has one BNC connector but can have four kind of outputs.
AHD: Press OSD to UP
CVI: Press OSD to DOWN
TVI1.0: Press OSD to RIGHT
Default output is AHD, please leave us message if you want other outputs as default when ordering.
OSD-4 IN 1
Why we call it 4 in 1 camera?
It can work with
960H DVR(Analog DVR)
CVBS is just for installation and picture quality not as good as other three 1080P outputs.
If you will buy this camera only for CVBS(960H) output, please DO NOT order it, because we sell it as 1080P HD analog camera.
Camera  solution:
F22: F22+FH8536E
Special functions:
F22: IR-CUT,   DWDR,   DNR,   UTC,   OSD
SONY IMX323/IMX290:     IR-CUT,   WDR,   3DNR, Sense-up, Defog,   UTC,   OSD
Our camera with good quality    IR-CUT   :
WDR    (Wide Dynamic Range)
DNR   (Digital Noise Reduction)
UTC=Up The Coax
OSD menu can be controlled by DVR(Need DVR also supports UTC function)
OSD (2)
OSD Language: Chinese, English, Spanish, Russian, Italian
HTC 1080p+HTC960E OSD menu
Most important is----Its Price is better than 1080P IP camera.
Same 1080P(1920*1080) resolution.
Price is lower!
Besides, this is REAL time and without any DELAY.
In addition, Plug and play!
Easy installation as analog camera, we do not need network setting as IP camera.
Coaxial transmission, super long range, more than 500 meters by 75-3
Why not choose it?:)
We have below 1080P AHD DVRs to work with this camera:
Model name BS-BM24HTC200F
Image Sensor 1/2.7" 2.0MP CMOS Sensor/1080P
Solution F22 + FH8536E
Resolution 1920(H) x 1080(V)
Description 1080P AHD / CVI / TVI camera
Scanning system Progressive
Min. Illumination 0.01Lux / F1.2
S/N Ratio More than 56dB
Special function DNR
WDR (Wide Dynamic Range)
White Balance Auto
Transmission distance cable 75-3, >500M
IR 24 pcs LED (or New IR: 14miu *18pcs)          20Meter range
Day/Night IR-CUT
Lens Board Lens 3.6mm/F2.0
Video Output  AHD, CVI TVI,CVBS (4 in 1)
Auto Gain Control Auto
White Balance Auto White Balance
Material of housing Plastic (Waterproof)
Power Supply DC12V (Power supply is NOT included)
Temperature -20 - +55 degree
Humidity 0%-90%




Camera pictures:






multifunctional bracket, easy install


Camera dimension(mm):






Please check below pictures for 1080P AHD/CVI/TVI output of this camera, then you know how good of this camera!



F22+FH8536E Solution

1. AHD:

HTC200F Picture-AHD


2. CVI


HTC200F Picture-CVI

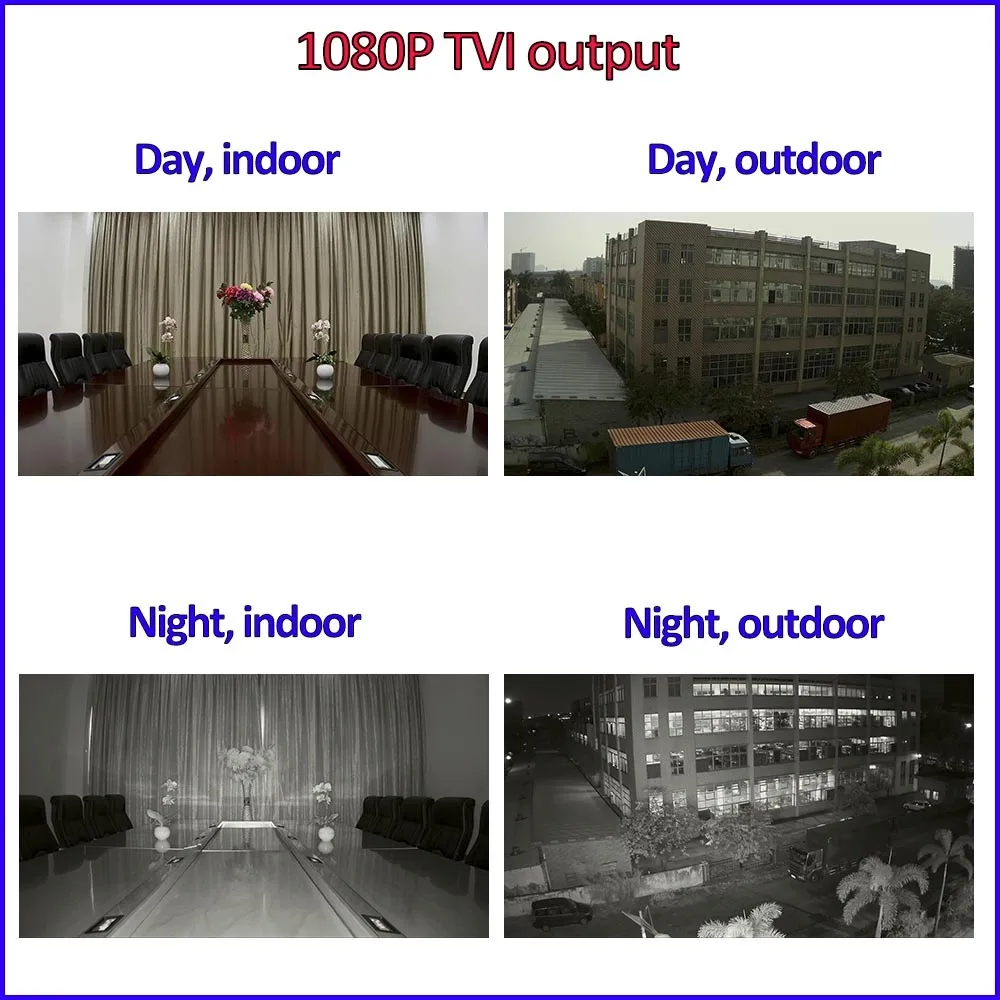

3. TVI


HTC200F Picture-TVI




Where is our camera produced?

We are factory!


production steps up

production steps down





Package contents:
1 * camera
1 * manual
1 * screws



packing information




1.We will send the goods within 3-5 working days after your payment is verify by Aliexpress.
2.Our free shipping only included China post air mail ,and the weight should be within 2KG. Please notice the China post air mail are slowly.
3.If you want to send by EMS.DHL and UPS, you should pay for the shipping cost.
4.When we send the goods , we will responsible for the problem in China Customs ,and the buyer should responsible for the problem in buyer’s country Customs.
5.You will trace the goods online after sending the goods 1-2 working days.
6.Please check your goods with shipping company face to face when you receive the goods.
7.If you find the camera is lost or damaged on the way. Please let the shipping company give you the prove. Then we will help you let the shipping company compensate you.


1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.
2. We promise warranty for quality in one year and we will repair it free of charge. The returning shipping should be paid by customer.
3. Your satisfaction of our products is guarantee. If you are not satisfied with the product, you may return the goods for exchange but please communicate with us before return. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.
4. All return items must be in good condition. They must be under resalable condition. Men-made defects are not guaranteed, such as broken, scratched and so on.


Feedback and Rating
We will work with you to until you are satisfied. we sincerely hope that you can leave us a positive
If, for any reason you are not satisfied with your purchaseplease contact us through "My Messages" or "Ask Seller Questions" before leaving neutral or negative feedback.PLEASE DO NOT leaves us 1, 2, 3 -star Detailed Seller Ratings because they are equal to negative feedback.




Packaging Details
  • Unit Type: piece
  • Package Weight: 0.4kg (0.88lb.)
  • Package Size: 18cm x 11cm x 8cm (7.09in x 4.33in x 3.15in)
