Report item
Item specifics
  • Dimensions (L x W x D)(mm): mm*mm
  • Alarm Action: FTP Photo,Email Photo
  • Technology: Infrared
  • IR Distance(m): AROUND 60M
  • Minimum Illumination(Lux): 0.01
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Brand Name: MISECU
  • Supported Operating Systems: Windows 7,Windows 8,Windows XP
  • Wall Bracket: Side
  • Video Compression Format: H.264
  • Model Number: PTZ635-4X20
  • High Definition: 1080P(Full-HD)
  • Special Features: Waterproof / Weatherproof
  • Color: White
  • is_customized: No
  • Power Supply(V): DC12V
  • Type: IP Camera
  • Sensor Brand: SONY
  • Installation: Ceiling
  • Connectivity: IP/Network Wired
  • Power Consumption(W): 6W-7W
  • Style: Bullet Camera
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Audio Output: NO
  • Lens (mm): 2.8-12mm Auto Zoom
  • Rotation Degree: Pan: 0-250° continuous rotation; Tilt: -10°~55° auto flip
  • Image Output: 1920 *1080P full HD
  • Electronic shutter: 1/25s ~ 1/100000s
  • Specialty: Pan Tilt Auto Zoom lens 2.8-12mm Outdoor/Indoor
  • Type: Bullet Infrared White Color
  • Leds: 4 pcs Array IR CUT
  • Chip: HI3516C+IMX222
  • Technology: super wide dynamic
  • Features: Waterproof ONVIF 2.0 P2P
  • Night Vision: 50-80m ( approx )
Product Description

TOP Picks


To get a $16 coupon right now! Exclusively usable on 00:00-23:59 on 11.11 only!

AliExpress Selected Coupon accepted by MISECU Official Store: $2 coupon for $19 orders.


4X Optical Pan Tilt Auto Zoom lens 2.8-12mm New 2.0MP FULL HD IP Array Onvif P2P NIght Vision Camera Camera cctv home security

Overview :


Focus lenght

 2.8-12 mm

Day/night mode

Automatic /multicolour /monochrome

Focus mode

Automatic/ manual

Noise-signal ratio


Back light compensation


White Balance

Automatic/ manual

Electronic shutter

1/25s ~ 1/100000s

Gain control

Automatic/ manual

Min illumination

0lux (IR ON)

Pan speed : 0.5°-12° /s

Tilt speed : 0.5°-10° /s



Network parameter:


Max image


 Heartbeat function


Security mechanism

Password protection, multi user access is controlled

Communications protocol


(SIP,SRTP,optical), ONVIF

Double stream



 One network interface, one power input


Infrared lamp


Infrared lamp



IR View Distance

4 high power array LEDs with IR

IR lamp control

60-80 meters


IR lamp consumption

Automatic  /manual / camera


Bullet IP Camera


Pan speed

Pan speed:0.5°~12°/s,speed is settable;pan preset speed:20°/s

Tilt speed

Tilt speed:0.5°~10°/s ,speed is settable;Tilt preset speed:20°/s


Pan: 0-250° continuous rotation; Tilt: -10°~55° auto flip


256 presets ( Chinese title)

Auto Scan

8 groups, settable boundaries and scan speed

Auto Cruise

8 groups, each with 32 presets with settable time interval

Pattern Tour

4 groups, each with 500 instructions

Video analysis


Auto tracking

Not Support

Heat dispersion structure

Out Cool Air Circulation to Sink the Heat Technology

Supply voltage

DC12V±10%  1.5-2A

Levels of protection

IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design

Working temperature


Working  humidity

<90%,No condensation


18W Max


1.1 Kg (approx)


 Wall-mount , bracket


Main features:


1: The Highly power  array LEDs with IR range up to 60-80 meters

2: Built-in digital HD module,the image can up to 1080 p.

3  Built-in camera : 4 X optical zoom.

4: Infrared light control software, suitable for various  occasions

5: Automatic defrost and defog function( manual operation)

6: IP66/ level 2  lightning protection,4000V prevent  thunderbolt surges design.

7:2.0 Megapixel HD IR Bullet outdoor indoor Onvif  IP Camera ,Auto zoom 2.8-12 mm ,new

8:super wide dynamic CMOS sensor

9:Dual H.264,dual-stream enconding

10:1920*1080 ( Main Stream )


11.11 global shopping festival note to all my valued clients (from MISECU , Vivi):

click at main page to see all the surprise

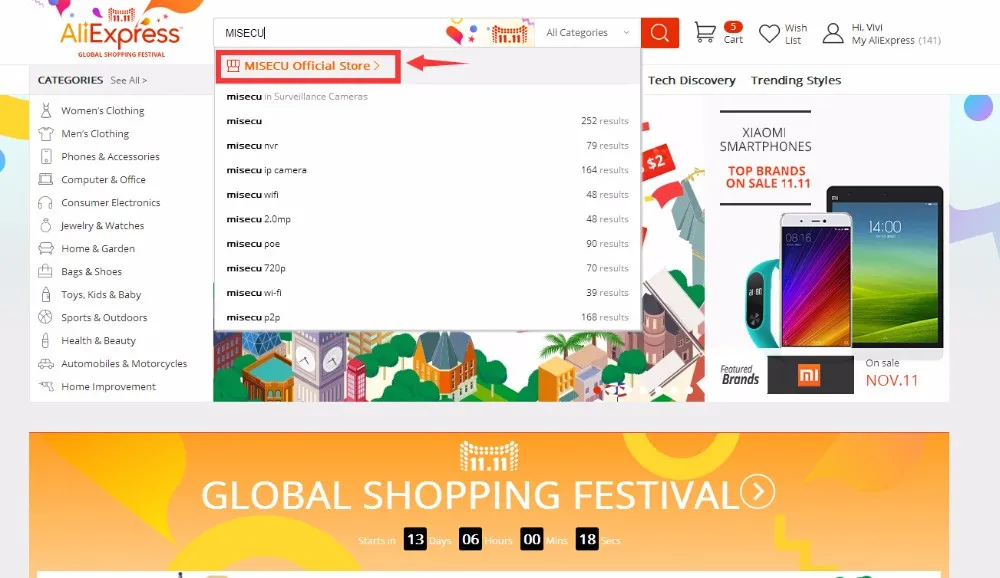

MISECU Official Store,as top brands in CCTV Surveillance field on Aliexpress,you may enter my store in so many ways:
1st way, in Aliexpress main page,
and choose the"Home Improvement & Security"channel, you will see MISECU Official Store in "TOP BRANDS"lists.  top MISECU
2nd way , input "MISECU" in searching blank,"MISECU Official Store"on top , that is my store .






How We Pack :

1x 1080P HD IP camera PTZ Auto zoom 2.8-12mm lens






IE Cloud Security-Video Management System make it easy to monitor what you care no matter where you are!





newest 6

Plug and Play

High Resistance

IP Camera Monitoring System



How to reset the camera configuration:

reset 1reset 2reset 3reset 4

MISECU focuses on high-qualified security products design, production, manufacture and sales. Over the years focused on security products, our video surveillance systems manufacturing, we developed a number of wholesalers and distributors , and countless retailers in different countries.We provide professional OEM & ODM services for customers, looking forward to more partners to work together with MISECU to create a brighter future.

Please feel free to contact us through AliExpress message center or Order page for any problem (9:00am to 18:00pm , except Sunday) email to phoebe(at)tinosec(dot)com
Our customer service and tech support will do our best to help you out.

1. WORLDWIDE SHIPPING. (Except some countries and APO/FPO)

2. Orders processed timely after the payment verification.

3. We only ship to confirmed order addresses. Your order address MUST MATCH your Shipping address.

4. The images shown are not the actual item and are for your reference only.

5. SERVICE TRANSIT TIME is provided by the carrier and excludes weekends and holidays. Transit times may vary, particularly during the holiday season.

6. If you have not received your shipment within estimated time of arrival, please contact us. We will track the shipment and get back to you as soon as possible with a reply. Our goal is customer satisfaction!

7. Due to stock status and time differences, we will choose to ship your item from our first available warehouse for fast delivery.

8. Import duties , taxes and charges are not included in the item price or shipping charges .

These charges are the buyers\' responsibility. Please check with your country\'s customs office to determine what these additional costs will be prior to ordering .

All of the items in MISECU at big promotion all through the year(365 days) , please just select what you need and what you like , and we have extra coupons or gift from time to time .Add it to wish store to get connected to more surprise!

1 year warranty .During this period, we will repair or replace a defective product or part with a new or refurbished item (not including artificially defect). The user

is responsible for all transportation and insurance charges for the product to the our facility.

Products may be returned for refund or replacement within 30 days of the purchase date. Returned
merchandise must be unused, in original packaging and include all accessories. Shipping costs are

non-refundable.Currently , buyers can pay using Boleto , Visa, MasterCard , QIWI , Western Union , Maestro DEBIT CARD , WebMoney and bank transfer . More payment options will be available on Aliexpress in the coming future.We maintain high standards of excellence and strive for 100% customer satisfaction , and only accept 5 star feedback! Feedback is very important We request that you contact us immediately BEFORE you give us neutral or negative feedback, so that we can satisfactorily address your concerns. Communication would solve 99.99% problems .

It is impossible to address issues if we do not know about them!


Packaging Details
  • Unit Type: piece
  • Package Weight: 1.1kg (2.43lb.)
  • Package Size: 30cm x 20cm x 20cm (11.81in x 7.87in x 7.87in)
