Item specifics
  • Viewing Angle (Degree): 90°
  • Alarm Action: FTP Photo,Email Photo
  • Model Number: LWIRDV4XS400
  • Technology: Infrared
  • Minimum Illumination(Lux): 0.01Lux
  • Brand Name: EasyN
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • Supported Operating Systems: Windows 7,Windows Vista,Windows XP
  • Video Compression Format: MJPEG,H.264
  • is_customized: Yes
  • Special Features: Vandal-proof
  • IR Distance(m): 30M
  • Dimensions (L x W x D)(mm): 95.5(W) x 95.5(H) x 62(D)mm
  • High Definition: 4.0 Megapixels
  • Style: Dome Camera
  • Color: White
  • Power Supply(V): 12V
  • Wall Bracket: Ceiling
  • Installation: Ceiling
  • Type: IP Camera
  • Connectivity: IP/Network Wired
  • Power Consumption(W): 3W-12W
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Audio Output: Optional
  • Lens (mm): 2.8-12mm Auto Focus lens
  • Color: White
  • Internet viewing: Support IE Firefox Google browser
  • IR Cut Filter: Yes
  • POE: External POE Optional
  • Material: Metal Vandalproof Weatherproof IP66
  • Remote Viewing: Cloud and Mobile Phone APP
  • ONVIF: ONVIF 2.4
  • Mobile Phone Viewing: Yes Via Freeip Pro APP
  • Ship From: China
  • Video Compression Format: H.265/H.264
Product Description

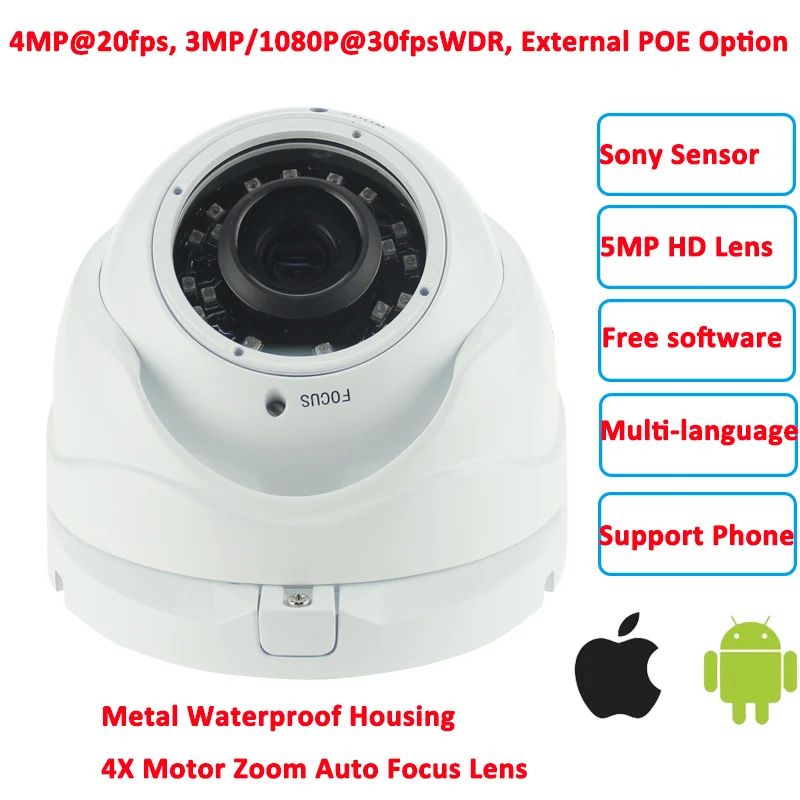

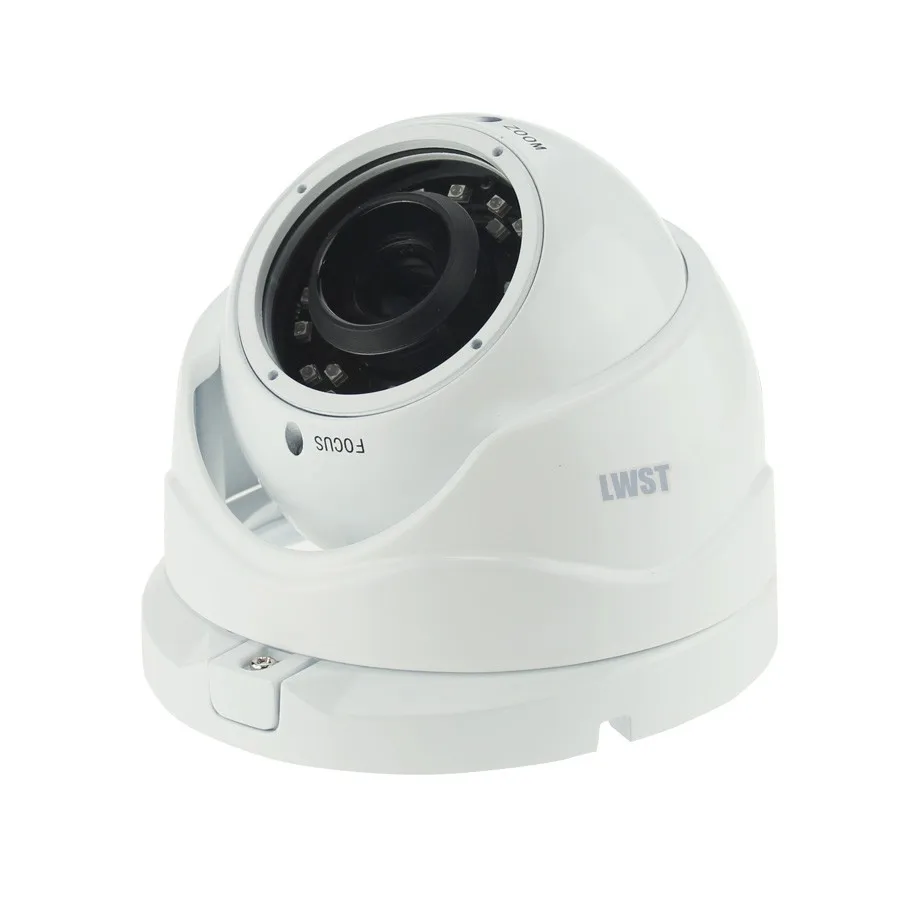

IP camera 4X Zoom Auto focus 2688*1520 Aluminum Metal Waterproof Outdoor Dome cctv system p2p ipcam infrared cam With IR Cut

Main Characteristics:
1,Support H264/H.265, support fog mode;
2,Support Audio/Reset function;
3,Use IR-CUT port,support automatic switching operation of optical filter,
4,Use standard 38*38 Single board module design structure,Suitable for most camera housings;
5,Maximum resolution 4.0MP- 2688(H)*1520(V) , high quality images;
Products Details:
1/3" OV High-resolution CMOS Sensor HISILICON Hi3516D, WDR; With IR-CUT; External POE
Main Stream: 4MP@20fps, 3MP/1080P@30fps; 4MP HD Lens
Vandalproof & Weatherproof IR Dome Camera
Water resistance: IP66
NEW IR LED: 14μ x 24PCS
IR LED: 5 (12μ) x 36PCS(Optional)
IR Range: 30m
This camera is with 4MP 2.8-12mm 4X Zoom Auto Focus Lens
Add ROI pattern : Area-of-interest have 3 option Area. function: Select a Area from the Image, it is the focus of
your image analysis. Select this area for further processing. Goals you want to read for delineating use ROI, which
can reduce the processing time, increase the accuracy .
Function Introduction
1.With Screen Capture command
2.Motion Detection Alarm (range18 * 22) FTP(FPEG&AVI, SMTP, JPEG&MESSAGE&AVI;
3.Timing: Manually, PC synchronization, network synchronization (nist\\windows\\nw.nist\\a.nist\\b.nist);
4.Privacy zone block (8 * 8), 3 groups can be supported;
5.Brightness \\ Contrast \\ saturation \\ Sharpness adjustment \\ White Balance: Auto & Manual \\ 3D NR(adjustment range 1-255);
6.BLC(off by default), ISO mode (normal \\ Enhanced - default), WDR (off by default), AE (automatic default, manually adjustment range 1-255
7.Electronic Shutter(off by default, manually adjustment range1/25 - 1/10000s);
8.PAL\\NTSC optional and default as PAL;
9. Support DDNS and DDNS types as Oray,NO-IP,DYN DDNS;
10. Safe: Passowrd is required when connect third-party software or device (such as a type of VLC player RTSP);
11. Support audio which need add mic, off by default;
12. User Management(add,delete,configurate competence), 10 group at most;
13. DHCP(default as off), support unified Port for HTTP\\RTSP\\ONVIF(default as 80);

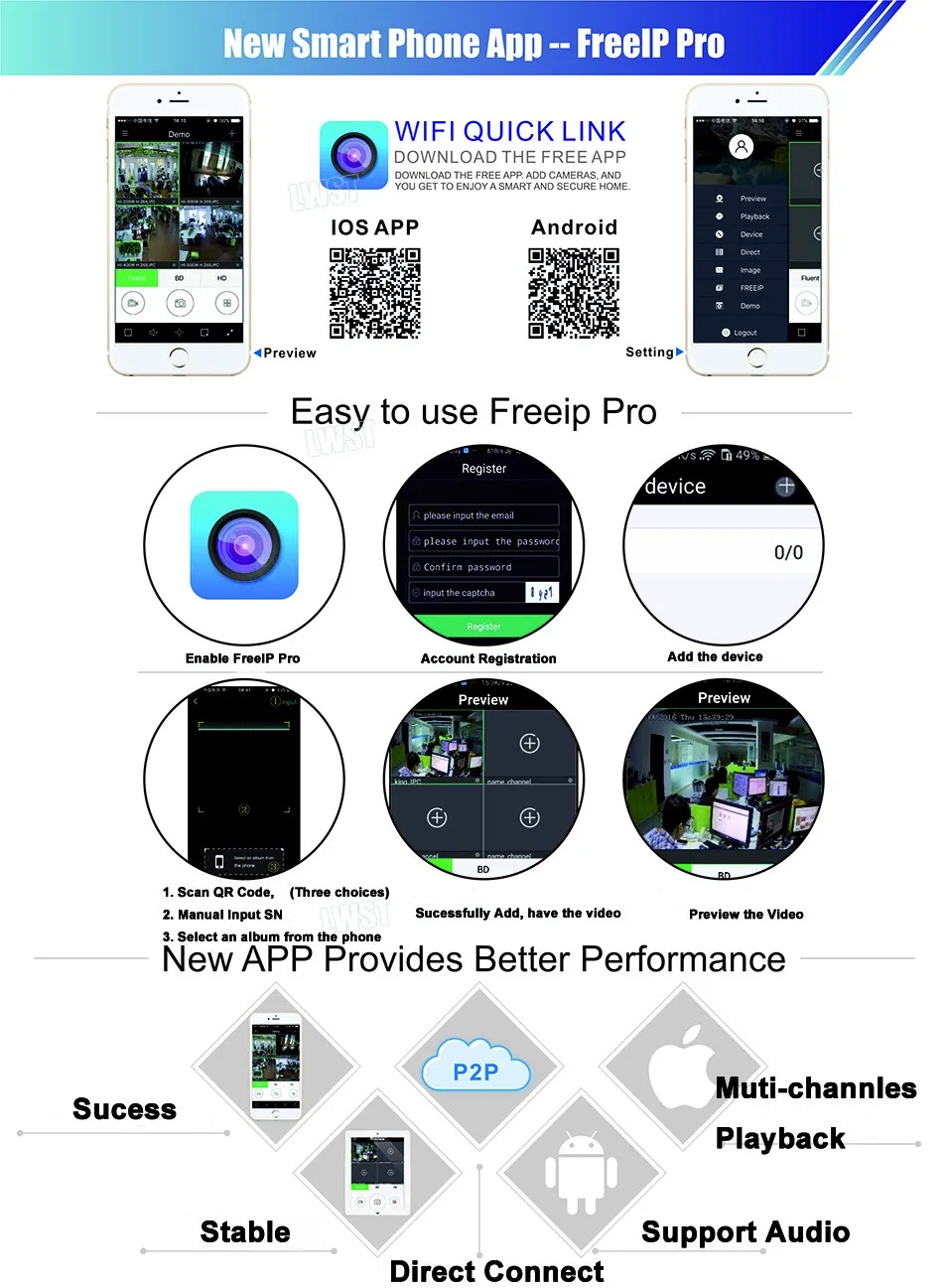

14. P2P(FREEIP), support login ways as SN\\IOS APP\\Android APP\\QR code scanning, and support connection status display;
15. Dual stream output default main stream as 1.3MP-1920*960&sub-stream as D1-720*480, Stream adjustment Frame rate, bit rate, VBR \\ CBR variable bit rate, frame interval),OSD menu(time + text, 2 lines);
16. Support OCX manual recording, manual shots, power outages memory support,  built-in & external reset button
New SMD LED: 1. Better Heat Dissipation effect
                             2. Stronger Stability
                             3. Preferable luminous efficiency
                             4. More Uniform Light  Higher performance

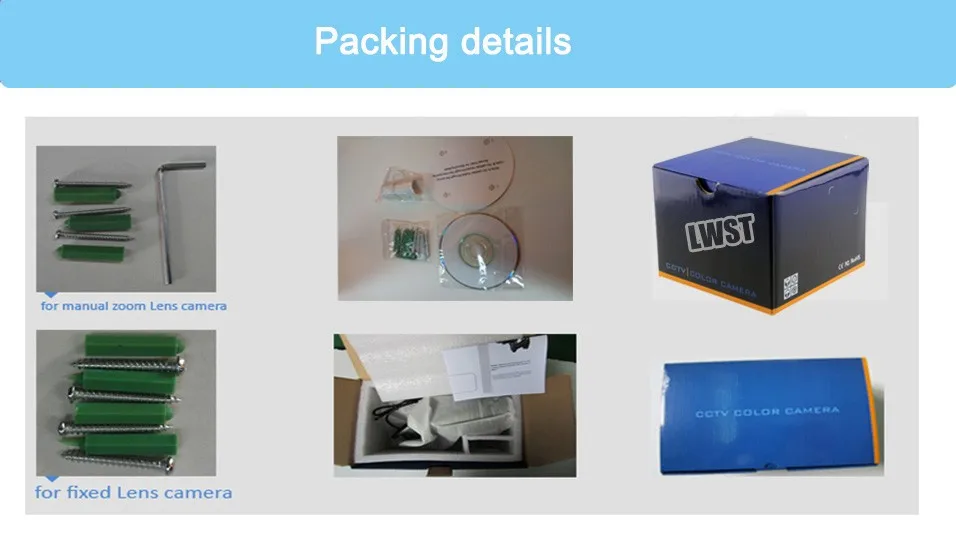

Packing content:
1*IP camera
Screws bag
1*CD(Softwares and User Guide)
1*Quik Operation Guide
waterproof wire
IP camera will support Firefox, Safari, Chrome(lower then  version  45), IE8-IE11 in Windows system and Mac OCX. t2 key1 okFREE IP CMS1
VMSxiangqing 4MP indoor1 4mp 2 4mp 3 IP system
packing data

HD-IP Camera 4.0MP Specification

Image Sensor


Main processor




Effective Pixels


TV System


Electronic Shutter time Auto

PAL 1/1-1/10000Sec; NTSC 1/1-1/10000Sec

Sync System


Usable Illumination


S/N Ratio


Scanning System


Video Output


IR Status

Under 10 Lux By CDS

IR Power On

CDS Auto Control


RJ-45 (10/100Base-T)




Support ONVIF 2.4


YES, Support QR Code


Optional, Support IEEE 802.3af



Video Delay

0.3S (Within the Lan)

IE Brower


Smart Phone

iPhone, iPad, Android, Android Pad


Color/ BW (IR-CUT )


H.264/H.265/JPEG,Support record AVI format

Motion Detection


Privacy  Masking

3 Rectangular Zone

Recording Mode



Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, total 17 type languages

Operation Temperature

-10 ~ +50 RH95% Max

Default IP address

1. We ONLY ship to Alibaba confirmed address. Please make sure your address on file is up to date.
2. Item will be shipped within 2-3 business days after payment confirmed.
3. All products are free shipping via  China Post Air Mail or HongKong Post Air Mail. The items usually take 10-21 business days to arrive, weekends and holidays not included. It may be up to 28 business days for some factors.
Please contact us for surprising additional price on UPS, DHL or EMS etc.
4. If you have not received your shipment within 30 days after we shipped, please contact us. We will check the shipment and reply you as soon as possible.
5. Buyer is responded for (in case) all tax or VAT under any circumstances.


1. Item will be checked and packaged in good condiction before ship out.
2. If you find any problems of our product, please contact with us first and we will help you to slove the problem.
3. Item comes with 12months warranty against any manufacturer defects. We provide replacement service for defective  product.
4.All sales are final, no refunds or returns on perfectly working items. Unauthorised returns will be ignored. The return policy does not cover accidental damage due to misuse, abuse or improper care.


Feedback is important to us, please kindly leave a positive feedback if you are satisfied with our product and service.  We guarentee to do the same for you. Please contact us first before giving a non positive feedback, so that we can try our best to resolve the issue.
We will be very appreciated if you give us 5stars, thank you!
To all dear customers, my dear friends, we are more than 10 years professional CCTV manufacturer, all products from us are more than 3rd QC tests, there is no middle man, true facotry direct selling, quality products in amazing facotry direct competitive price, welcom to contact us online or via email, we will relpy you within 12 hours, any support, please feel free to leave a message to Lewei. Thank you. Choose LWST, choose a quality reliable supplier, choose the best quality CCTV products.
