Item specifics
  • Dimensions (L x W x D)(mm): 131X93
  • Model Number: MS-1D2400-A
  • Alarm Action: FTP Photo,Local Alarm,Email Photo
  • Technology: Infrared
  • Sensor: CMOS
  • Minimum Illumination(Lux): 0.19
  • Supported Mobile Systems: iPhone OS,Android,Symbian,Windows Mobile
  • IR Distance(m): 30-40m
  • Power Consumption(W): 5w
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Mac os,Windows 8,Windows XP
  • Video Compression Format: MJPEG,H.264
  • Special Features: Waterproof / Weatherproof
  • High Definition: 4.0 Megapixels
  • Style: Dome Camera
  • Power Supply(V): POE / 12V
  • Color: White
  • Sensor Brand: SONY
  • Type: IP Camera
  • Installation: Ceiling
  • Connectivity: IP/Network Wired
  • Network Interface: RJ-45 10/100Mb Ethernet Slot
  • Lens (mm): 2.8mm-12mm motoried lens
  • Style1: 4MP 2592*1520 Auto focal ip network camera
  • Style2: motorized dome ip camera 2.8-12mm
  • High Definition: 4MP(2592*1520)
  • Viewing Angle (Degree): 98.5°~39°
Product Description

 H.265 4MP 2592*1520 Auto focal Motorized 2.8-12mm X4 Zoom Lens Dome IP Network Camera POE IP66 Waterproof CCTV IPCam cam


Dear customers,

     If you need more CCTV products please contact us directly. You can leave messages or send email thanks!

size



Feature:

  • HD resolution up to 4MP@18fps 1080P real time image
  • Progressive scan CMOS, capture moving images without jagged
  • Efficient infrared light, long life, irradiation distance of up to 40 m
  • ICR IR filter auto switch for true day and night surveillance
  • PoE
  • 2.8 - 12mm Motorized zoom lens auto-focal
  • bracket included
  • Support dual-stream, Support mobile phone monitoring
  • Meets IP66-rated dust and waterproof design, high reliability
  • Support for backlight compensation, digital wide dynamic, automatic electronic shutter function, adapt to different control environment
  • Multi language firware
  • H.265 saving half space and Compatible with H.264



operation

Specification




Camera Image Sensor:  1/3" Progressive Scan CMOS
Minimum Illumination:  0.01 lux @ F2.0, AGC ON
0 lux with IR
Shutter Time:  1/30s ~ 1/100,000s
Lens:  2.8-12mm motorized lens
98.5°~39°
waterproof YES
Day& Night:   IR cut filter with auto switch
Digital Noise Reduction:  3D DNR
Wide Dynamic Range:  Digital WDR
Compression Standard Video Compression:  H.265/H.264/M-JPEG
H.264 Compression Profile:  Main profile
Bit Rate:  32 Kbps~16Mbps
Image Max Image Resolution:  2592*1520
Image output

Main stream: 4MP 2592*1520@18fps; 3MP 2048*1536@23fps; 1080P realtime
Sub stream: 1280*720; 704*576@25fps

Image Settings:  Saturation, brightness, contrast adjustable through client software or web browser
BLC:  Yes, zone configurable
Network P2P Cloud:  Yes with Free P2P UID
Alarm Trigger:  Motion detection, tampering alarm, network disconnect, IP address conflict, storage full, storage error
Protocols:  TCP/IP, HTTP, DHCP, DNS, DDNS, RTP, RTSP, PPPoE, SMTP, NTP, UPnP, ICMP,IGMP,SNMP, FTP, 802.1X, QoS, HTTPS
System Compatibility:

ONVIF

General Functionalities (Security):  User Authentication, reset button, flickerless, dual stream, heartbeat, mirror, watermark
Interface Communication Interface:  1 RJ45 10 M/100 M Ethernet port
General Power Supply:  12 V DC ± 10%; PoE (802.3af)
Power Consumption:  Max. 5W (7W with ICR on)
Working Temperature (Operating Conditions):  -30°C ~ 60°C (-22°F ~ 140°F) humidity 95% or less (non-condensing)
Impact Protection:  IEC60068-275Eh, 50J; EN50102, exceeding IK10
IR Range:  Up to 40m

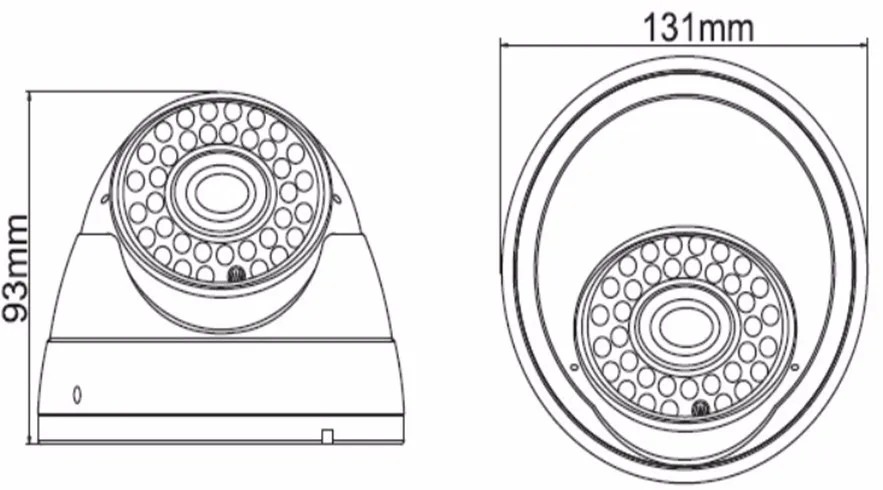

Dimensions:   131X93
Weather Proof:  IP66




*Adapter is not included, you can use POE or buy our Apdater by bellow link, thanks

http://www.aliexpress.com/store/product/DC-12V-2A-Power-Supply-Adaptor-12V-Security-professional-Converter-EU-US-Adapter-For-CCTV-Camera/1248727_32314001967.html



Payment:

1. We accept payment via Aliexpress(Escrow) only;

2. The payment does not include duties, local taxes or other importation fees;

3. Pls remark your special requests (color, package, value, declaration etc.) when making payment.

Shipment:

1. WORLD SHIPPING. (Except some countries and APO/FPO);

2. In default, we will shipped out based on you have chose shipping method, but in some case, we may change the shipping method to some faster   special line without noticing. We also support DHL, UPS, EMS and FEDEX. If you need them, please contact us;

3. Order processed timely after payment verification;

4. If you have not received your shipment within 38 days from your payment, pls contact us. We will track the shipment and give you a reply. Our goal is the customer satisfaction.

Warranty & Feedback:

1. All merchandise we sell are in good quality and under strict examination before they are shipped. We will try our best to avoid any quality problem.

2. We promise warranty for quality in 2 years and within the period we will repair it in free of charge. The returning shipping fee should be paid by customer.

3. Your satisfaction is our pursuing . If you are not satisfied with the product, you can return the goods or for exchange but please contact with us before the action.

4. The shipping and handling charge is not refundable and customer should be responsible for all the charges of returning and reshipping.

5.  Defects made by men are not guaranteed, such as broken, scratched and so on.

6.We will leave you with a 5 star feedback and we will server you until you are satisfied. We sincerely hope that you can also leave us a positive feedback (5 Star).



About Us :

Marvio Technology CO,.LTD(www.marviotech.com) is a China-leading and advanced security surveillance solution provider.

Hikvision cooperative partner.

Marvio Technology has been devoted CCTV industry more than 9 Years.In the beginning of we founded, we were devoted in Analog system. In recently 3 years, we keeping our

advantage product analog system. At the same time we develop digital system rapidly, digital system sales share from zero to more than 60 percentage.



We deeply know technical is the key Booster of our enterprise, So every year we invest more than 12% sales revenue to develop New technology & Innovation to keep the pace with the technology development. We have more than 20 professional development technicians, 40% of them educational background is master , Technical backbones are in CCTV industry more than 10 years.At the same time, we have good industry Cooperation with UESTC(University Of Electronic Science And Technology Of China).



Our product mainly welcomed by North American, Euro, Africa,Asia & Asia-Pacific area customers,We keep 2 years warranty for all our Global client. At the same time, we have special after-service team deal with our client any technical problems.



Today, Marvio’s products are widely applied in many fields, such as bank, public security, energy,telecommunication, intelligent-building, automobile system etc.



For most distributor & Agent, we provide OEM and ODM service.2
