Item specifics
  • Brand Name: JERUAN
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: METAL ABS
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color
  • Model Number: V80P-ID-1-p-lock
  • Camera: color
  • Power: 100V~240V
Product Description

New Arrival 7" Wired Video Door Phone Intercom System With Recording Function

700 TVL Color Camera, Clearer Video!

Supports Video Recording, Photo Taking

V80P-P-lock-1









Description:


The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card.  It is a good choice for your home security and intercom.

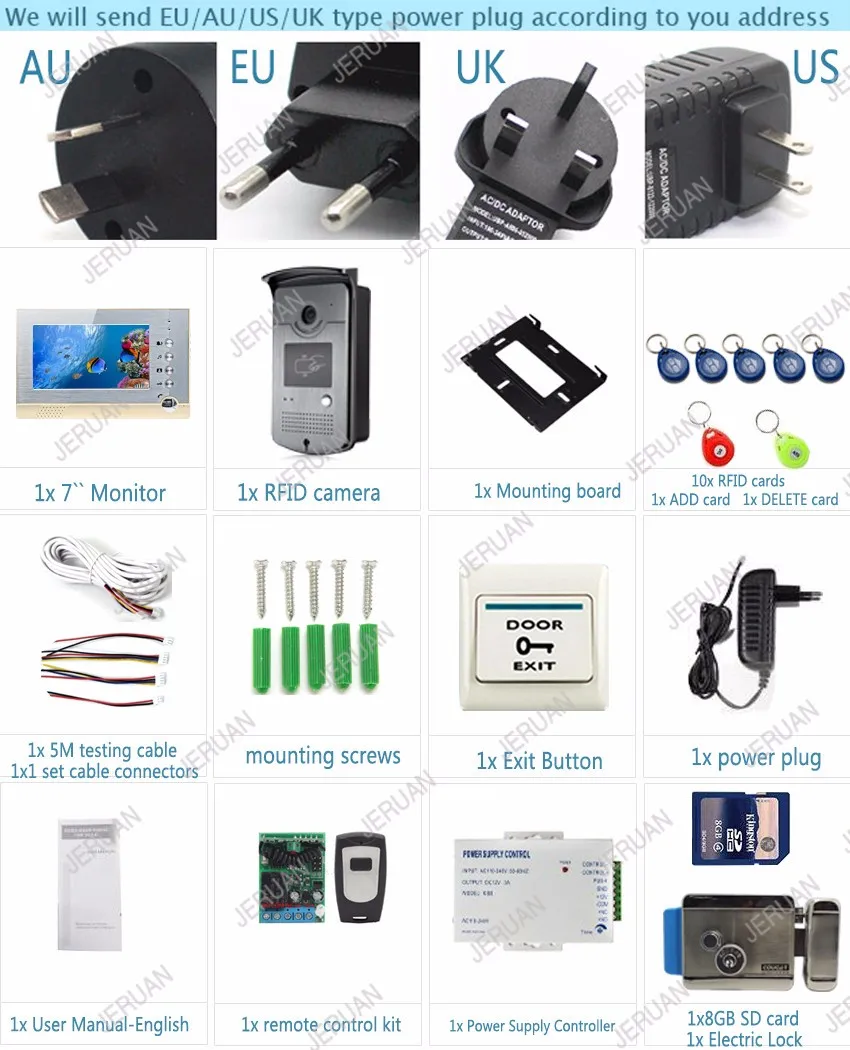

This item contains 1 outdoor unit and 1 indoor unit. We provide a 8G SD card.

Features:


  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom between the outdoor unit and indoor monitor.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, mute mode, do not disturb mode.
  • Comes with 5  RFID keyfobs, a push release button switch.
  • Supports maximum 500 rfid keyfobs
  • Video Recording and Photo Taking Function
  • Support Max. 32GB SD card
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • Additional monitor available up to 4(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)
Details
V80P-1 V80P-2 V80P-3 V80P-4 V80P-5 ID_3 ID_31 ID_41 ID_51 ID_61 ID_71

Electric Control Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 1500g;
  • Dimension (Face Plate): 120mm x 105mm x 35mm
  • Center distance: 60mm
  • Door distance: 35-55mm

HTB1l_I_JpXXXXa0aXXXq6xXFXXXO

Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble
  • Based delay control circuit, lock time can be in 0-15 seconds
  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off
  • Operative device: E/M Lock, Access Controller, Exit Push Butto

HTB1HPuaLXXXXXXlXFXXq6xXFXXXw

Remote Control:



If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries

HTB1ZEipLXXXXXafXXXXq6xXFXXXQ

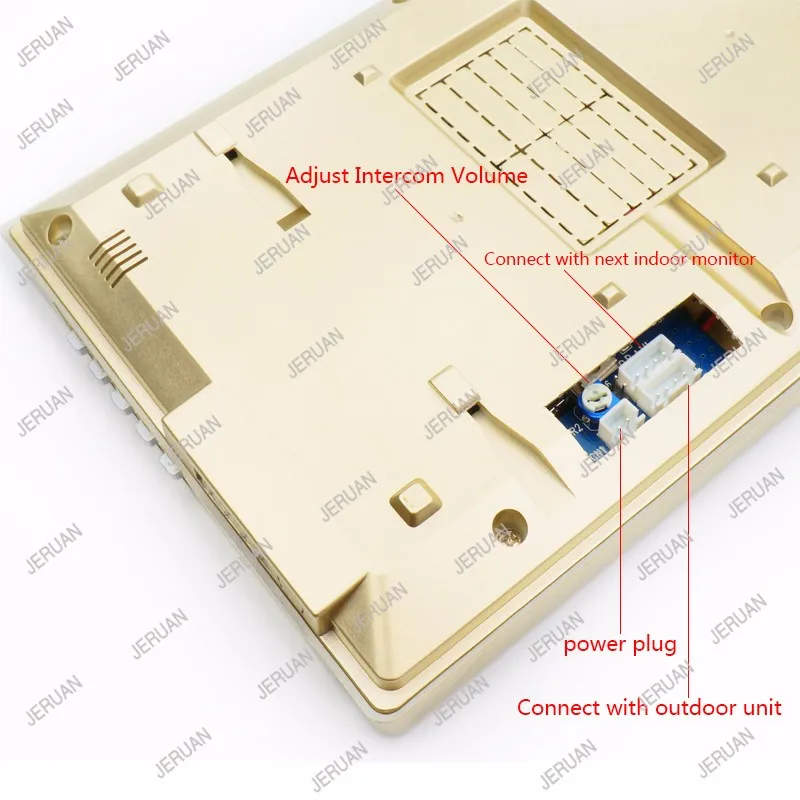

Wiring:


Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.


0.2mm2
0.5mm2
1.0mm2
Indoor to outdoor max distance
30m
50m
100m
Indoor to indoor max distance
20m
50m
100m
Outdoor to Electric lock max distance
2m
3m
5m

Specification

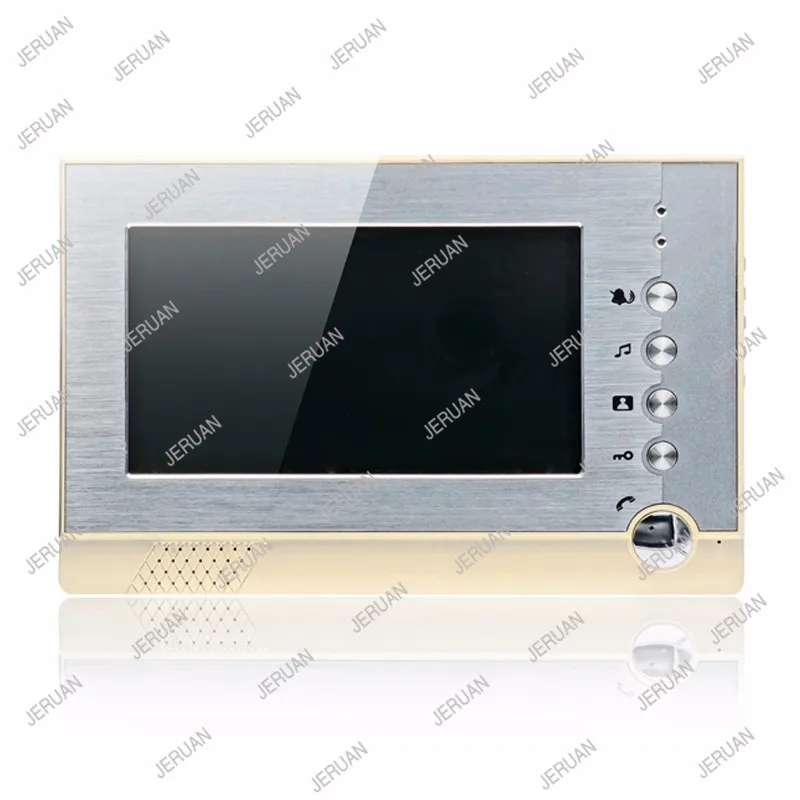

Indoor Monitor
LCD Screen
7" TFT
Resolution
800x480
Calling duration
About 120 seconds
Monitor duration
About 60 seconds
Power Consumption
Working: 9W; Standby: 2W
Adapter Input
AC 100-240V, 0.6A, 50/60Hz
Adapter Output
DC 15V, 2000mA
Working Temperature
-35 ~ 50 Celsius
Installation
Wall mounting
Material
Metal and ABS
Size
230(L) * 150W) * 27(H)mm
Net Weight
600g
Outdoor Camera
Camera Lens
1/3" CMOS
Resolution
700TVL
illumination
0LUX / F1.2
Night Vision
Visible within 1m
Power Supply
DC 15V, 0.5A
Working Temperature
-35 ~ 50 Celsius
Case
Alunimum panels, waterproof
Installation
Wall mounting
Size
174(L) *96(W) * 36(H)mm
Net Weight
420g





Package
