Item specifics
  • Camera Sensor type: CMOS
  • Sensor Size(Inch): 1/3
  • Installation: Dark Bottom Box
  • Doorbell: Yes
  • Communication Interface: Wired
  • Material: Front:aluminum alloy wire drawing; Back: engineering plastics;
  • Access Control: Inductive Card
  • Model Number: DS-KV8102-1A
  • Type: Entrance Machine
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Technology: Digital
  • Size: 182mm*100mm*32.5mm
  • Waterproof: Yes
  • Samrt Home Interface: Yes
  • Power: POE:24V with Hik swich;DC 12V;
  • Zone Input: 4
  • Camera: Color camera
  • Resolution: 1280*720P
  • Viewing Angle (°): 120
  • Display Screen Size(inch): 7
  • Power: ≤10W
Product Description
DS-KV8102-1A  is  one  button;


Mobile APP:Hik-connect
APP Support multi language;
Doorbell information push, mobile phone remote unlock, video call, answer and hang up;
Support alarm information push.

Access machine NVR access to the image, and display video;
DS-KH8301-A insert TF memory card, support video message playback video;
Alarm input and output function of the indoor machine disarm;
Control opening door lock and Hikvision fingerprint lock;
If you use multiple buttons of door outstation, indoor monitors support video dialogue between;
If you use a button of the outdoor station, the indoor machine does not support video calls, but can be simultaneously call the outdoor station.
Outdoor station swipe open the door, 485 external reading head swipe open the door;128301-no5

IMG_1872IMG_1871IMG_1870IMG_1886IMG_1885IMG_1884IMG_1883IMG_1882
Cabin bottom box, IC card entrance guard read head, 1.3 million pixels wide dynamic 120 ° wide Angle lens Single button the door machine, the machine can achieve the call more indoor machine model, or more than the door machine call many sets of indoor machine model, support the door machine directly authorized user card, call captured images, control of electric locks the door machine support. Can be added to the hik NVR video directly

System parameters
High-performance embedded processor SOC processors
Operating system, embedded Linux operating system
Video parameters
130 w pixel cameras, CMOS low illumination high-definition color video camera
Video compression standard h. 264
1280 * 720 resolution
Video frame rate of 25 frames per second
Mend a light infrared light
Audio parameters
Built-in audio input all point to the microphone
Audio output built-in speakers
The audio compression standard g. 711 u
Audio compression bit rate of 64 KBPS
Sound quality support for noise suppression and echo cancellation

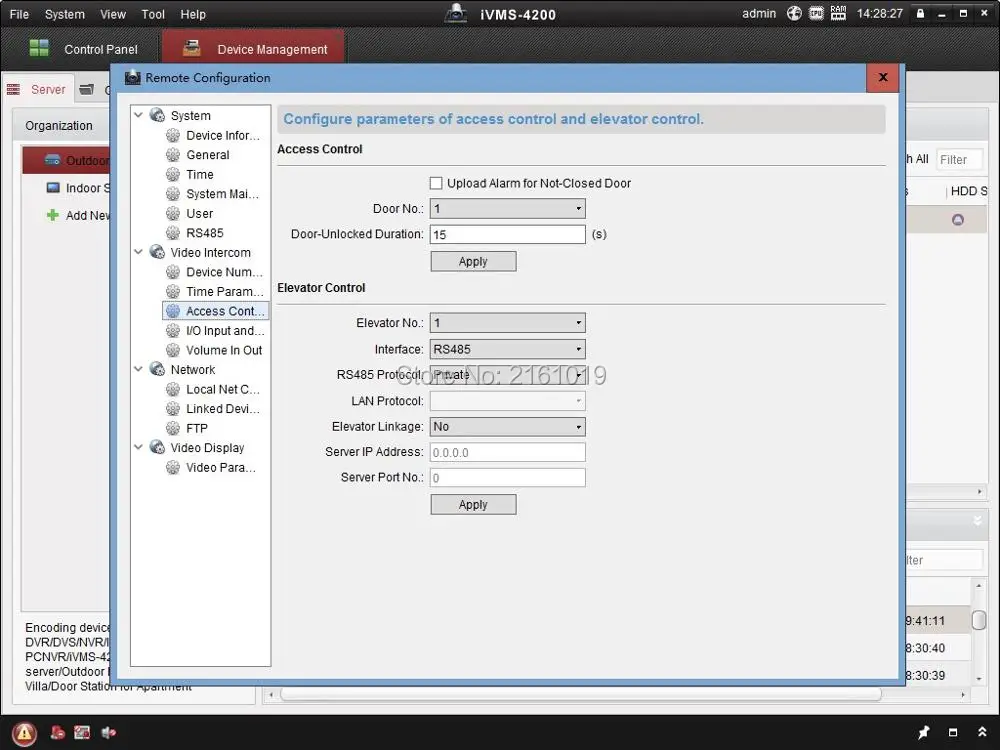

Access control parameters
Built-in card reader built-in IC card reading head
Door magnetic detection can detect door magnetic switch state
Through the open button to open the door open button
Normally open normally closed support setting normally open/closed

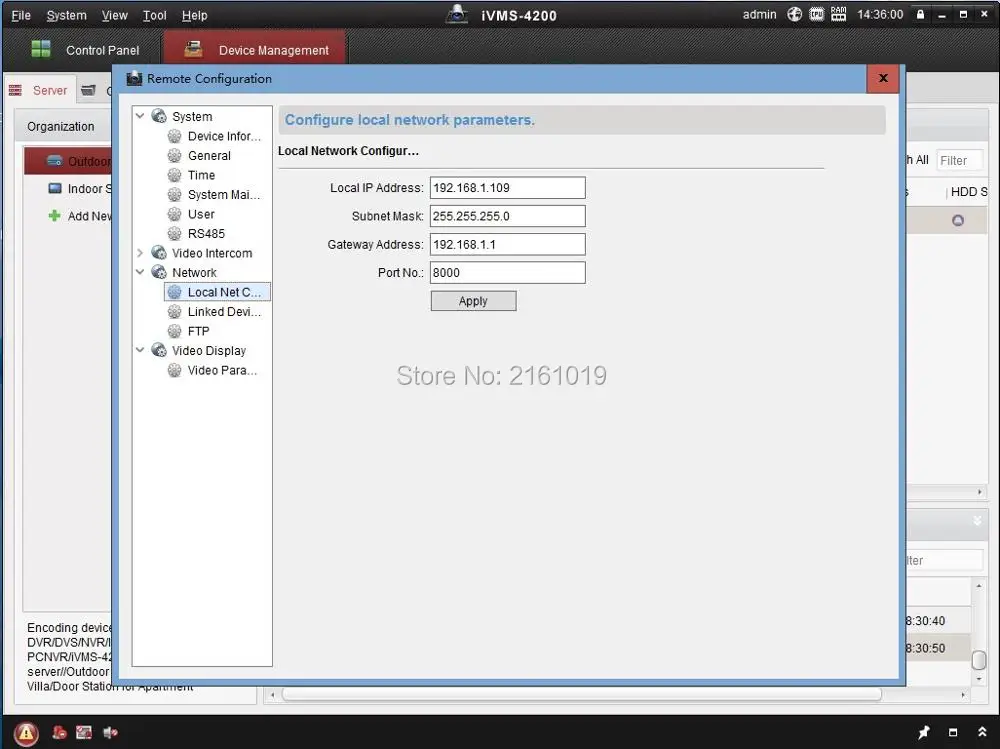

Network parameters
10 m / 100 m Ethernet adaptive
The network protocol TCP/IP, SNMP, SIP, RTSP
Alarm parameters
Alarm input tamper, door magnetic detection
Device interface
So a RJ45 10 m / 100 m adaptive Ethernet front-end ports
1 RS485 interface RS485 full-duplex
IO input 4
IO output 1
The work environment
Working temperature and 40 ~ 70(degree centigrade
Working humidity 10% to 90%
The power consumption of 10 or less w
DC12V power supply
The other parameters
Degree of protection IP65
Overall dimensions 182 mm * 100 mm * 32.5 mm
23
IMG_1888_meitu_6IMG_1887_meitu_5IMG_1885_meitu_3DS-KV8X02-IMDS-KV8X02-IM2DS-KV8X02-IMDS-8X02-1A2DS-8X02-1AIP420042002
Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 25cm x 17cm x 13cm (9.84in x 6.69in x 5.12in)
