Item specifics
  • Alarm Action: FTP Photo,Email Photo
  • Technology: Infrared
  • Minimum Illumination(Lux): 0.01
  • Sensor: CMOS
  • Supported Mobile Systems: iPhone OS,Android
  • IR Distance(m): 20m
  • Supported Operating Systems: Windows 7,Windows Vista,Windows 98,Windows 8,Windows XP
  • Wall Bracket: Side
  • Model Number: DWB-02031B
  • Power Consumption(W): 10w
  • Video Compression Format: H.264
  • High Definition: 720P(HD)
  • Special Features: Waterproof / Weatherproof
  • Dimensions (L x W x D)(mm): 15CM
  • Connectivity: IP/Network Wireless
  • Power Supply(V): 12V
  • is_customized: No
  • Brand Name: Holdoor
  • Network Interface: Wi-Fi/802.11/b/g
  • Type: IP Camera
  • Style: Bullet Camera
  • Lens (mm): 3.6mm
  • Audio Output: No
  • Lens (mm): 3.6mm
  • High Definition: 720P(HD)
  • Network Interface: Wi-Fi/802.11/b/g
  • Style: Bullet CameraModel
  • Number: DT-WIFIB-4-720PEffective
  • Pixels: 1280x720P
  • texture: ABS
  • P2P: Support
  • Onvif: 2.0.4
Product Description

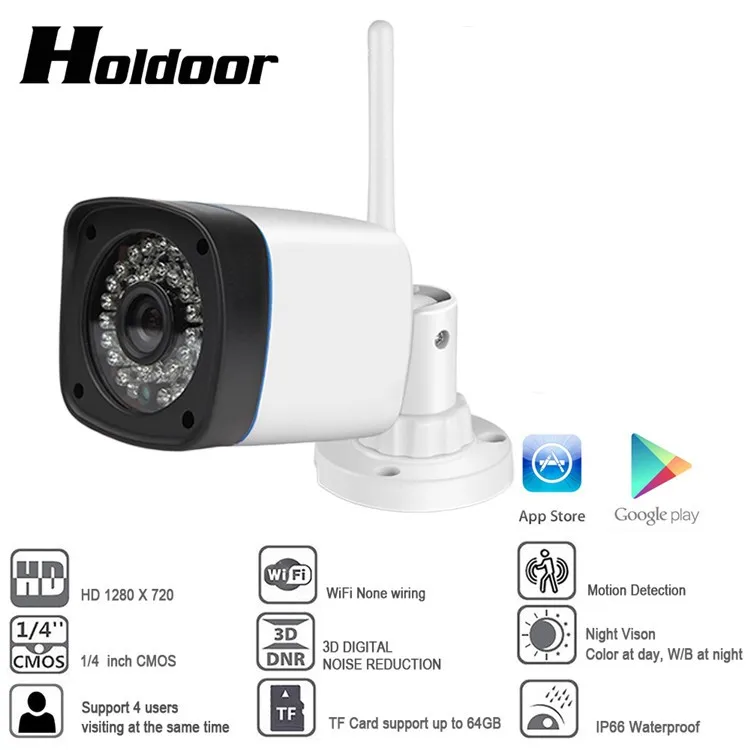

IP WIFI camera HD 720p 1MP Megapixel Onvif Outdoor IP65 Wireless Security CCTV IP Cam IR Infrared SD Card Slot P2P Bullet Kamera



Note: The price does not include the SD card. If you need it, please contact us.


>> Feature

Wi-Fi/802.11/b/g/n , Free Factory DDNS
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
Dual stream encoding / H.264 compression mode
1/4-inch 1.0 Megapixel CMOS, include 3,.6mm fixed lens
Night Vision:5-15m
wateproof
1MP:1280*720@25fps
Support Multi-Screen software and CMS
Onvif Compatibility
Wireless, P2P, Support Andorid , iphone
Support IR-Cut

Support 64G micro SD card slot. You need to unscrew the camera shell to see the sd card slot.
Note: The price does not include the SD card. If you need it, please contact us.

Lens size : Default : 3.6mm

Package including

1* 720P Wireless IP Camera
1* antenna
1* user mannual (including introduction)

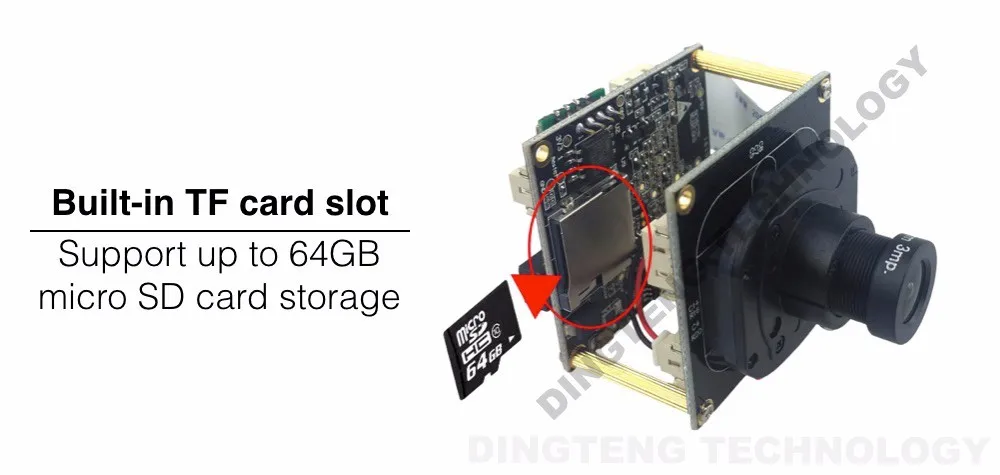

>> micro SD / TF Card slot

Dear Customer, This camera the SD card slot is inside the PCB board, Therefore you must be unscrew the camera housing and go into the sd card slot inside to put the sd card into it. If you have any question about this, please contact us freely. We are pleased to help you out.

4
>> Product Show

>> Feature Exhibition
9
101112
13 14

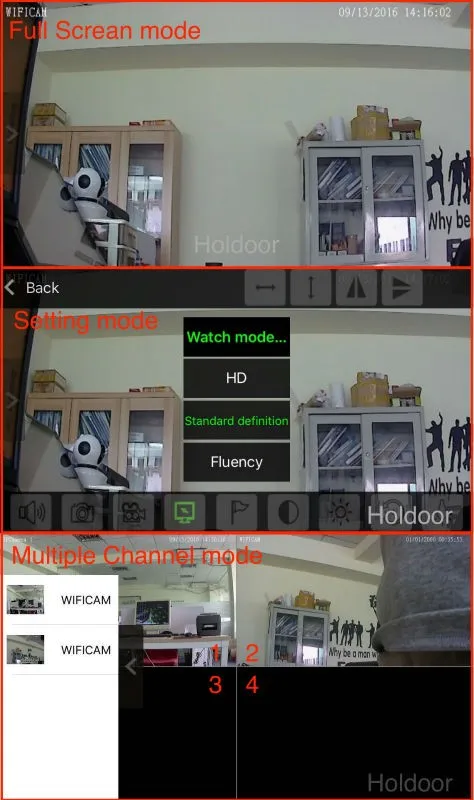

>>APP Simple Instruction
App available on both Android and iOS store 16 17 18 19

20

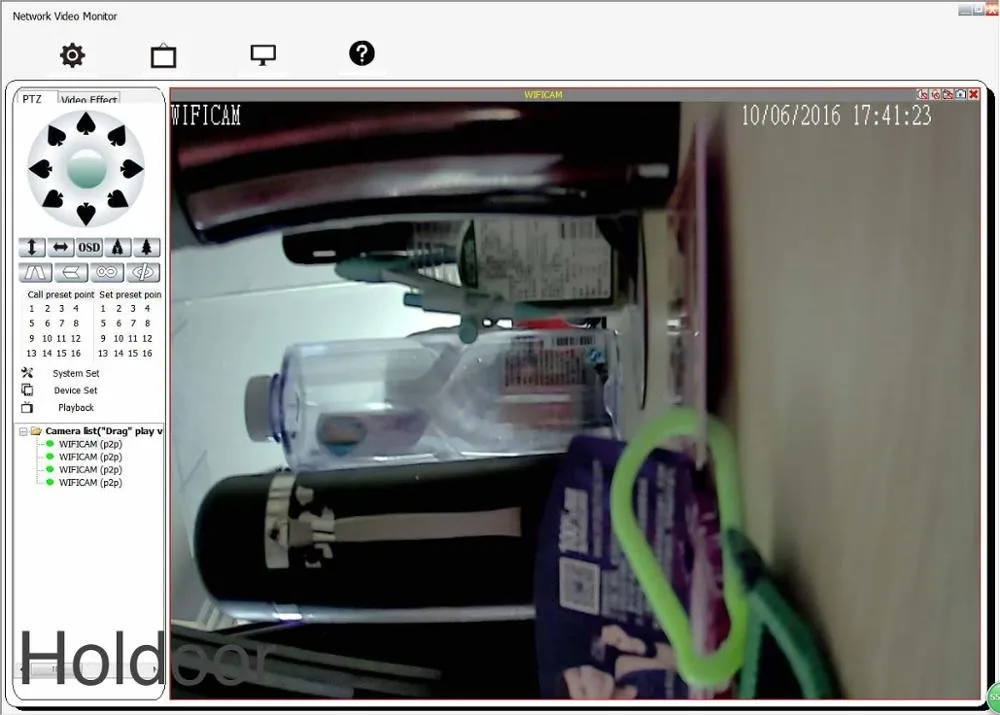

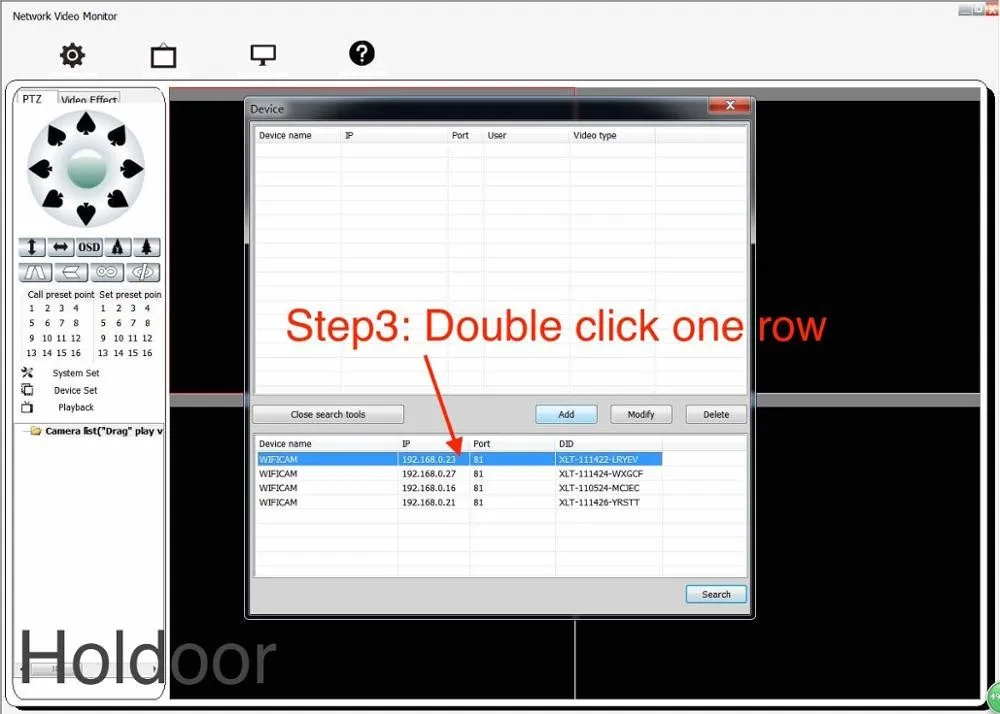

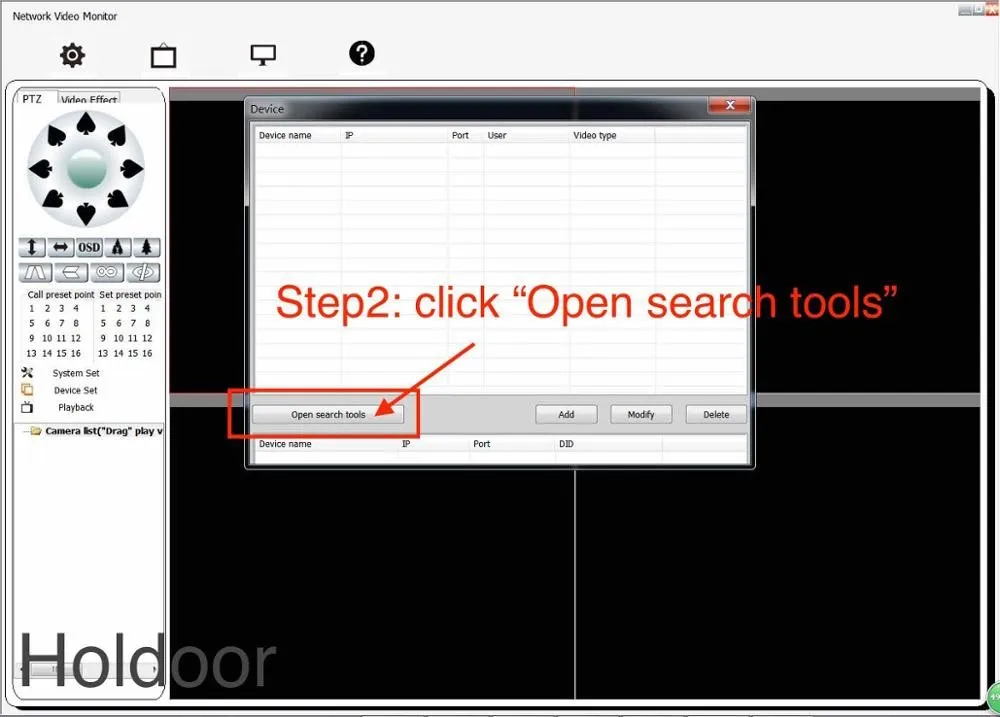

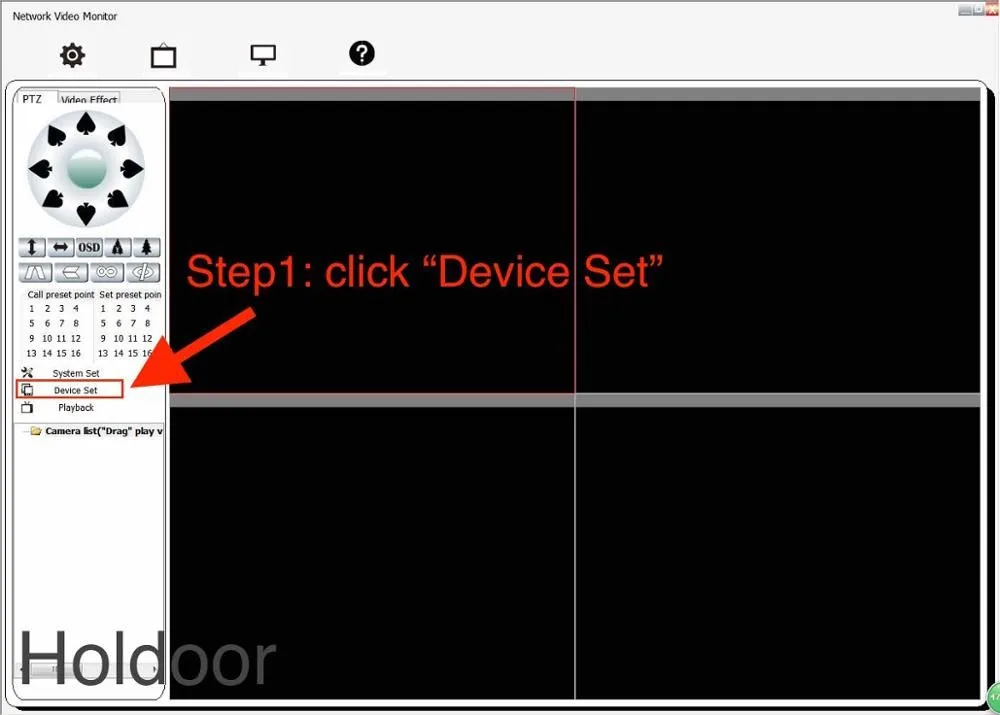

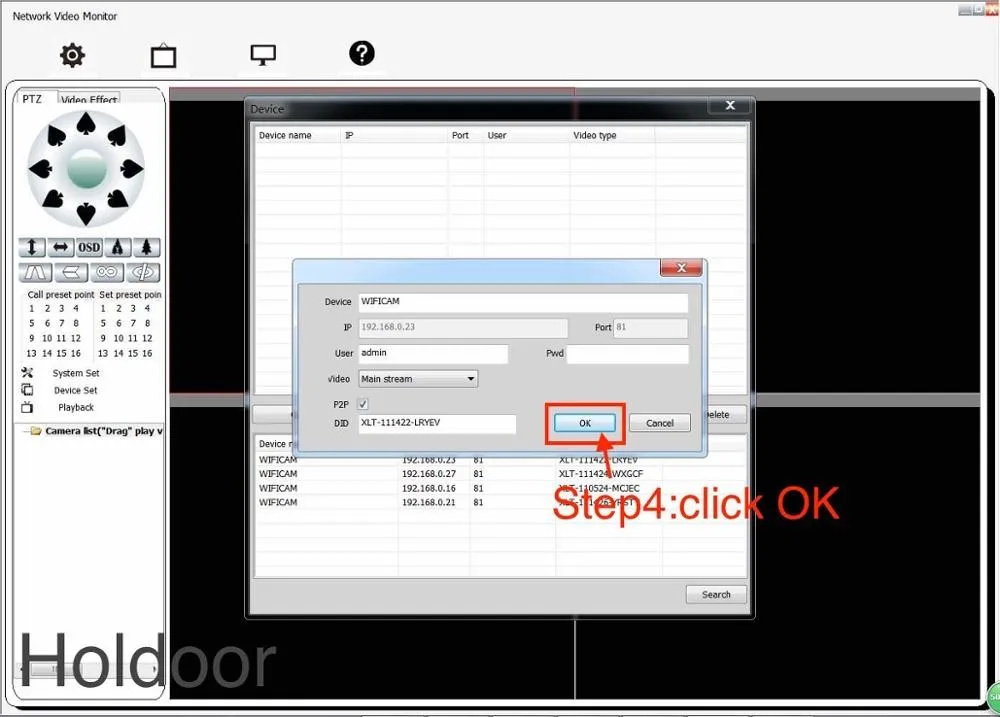

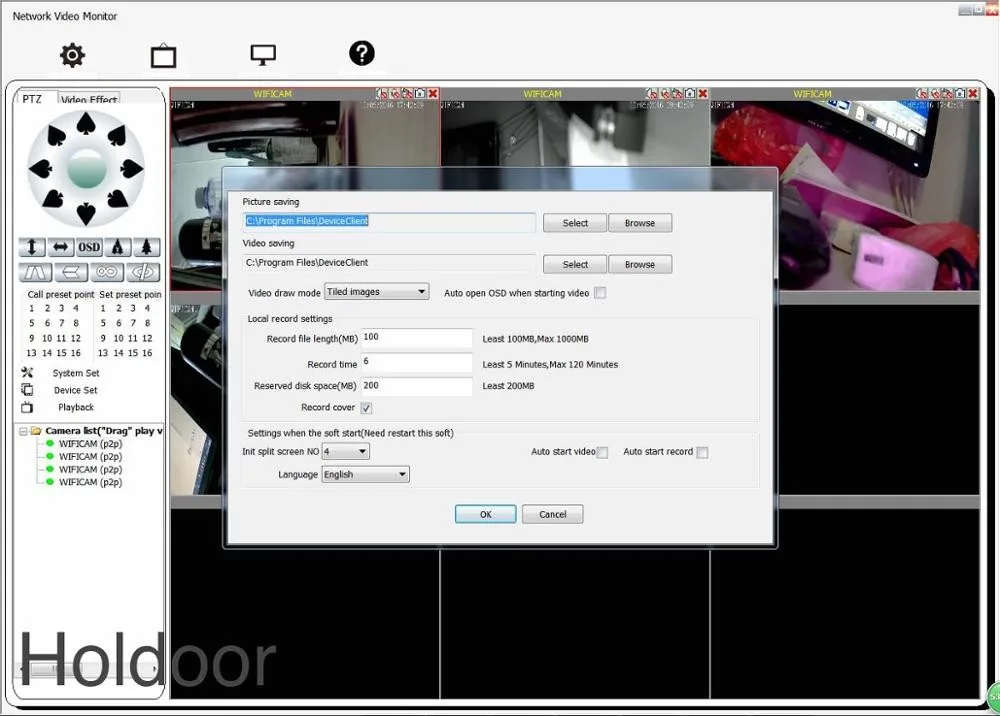

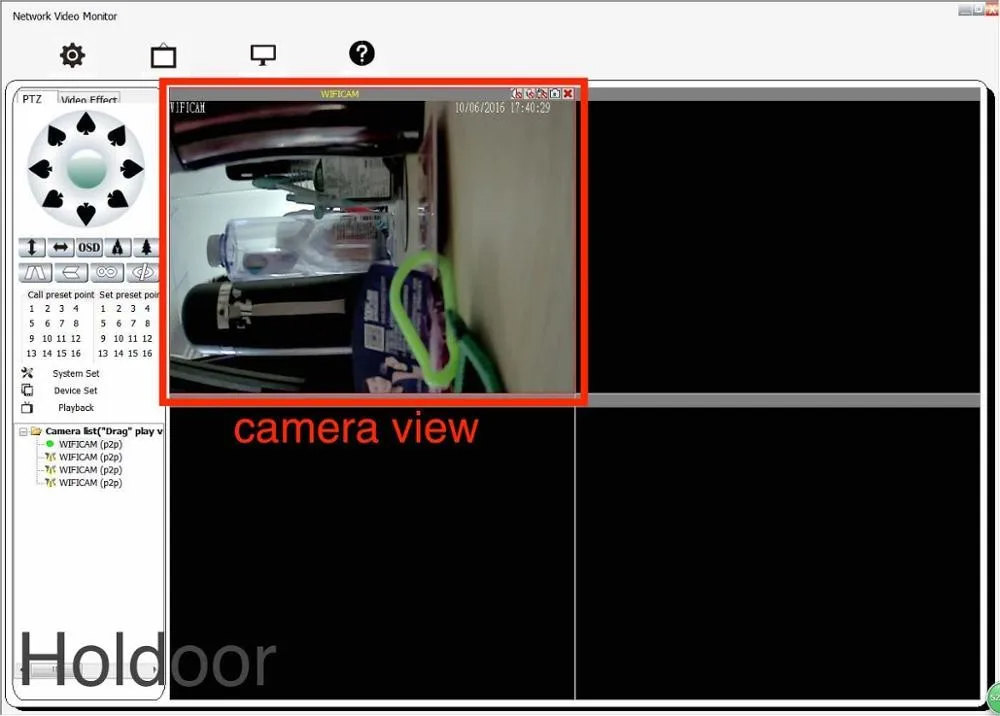

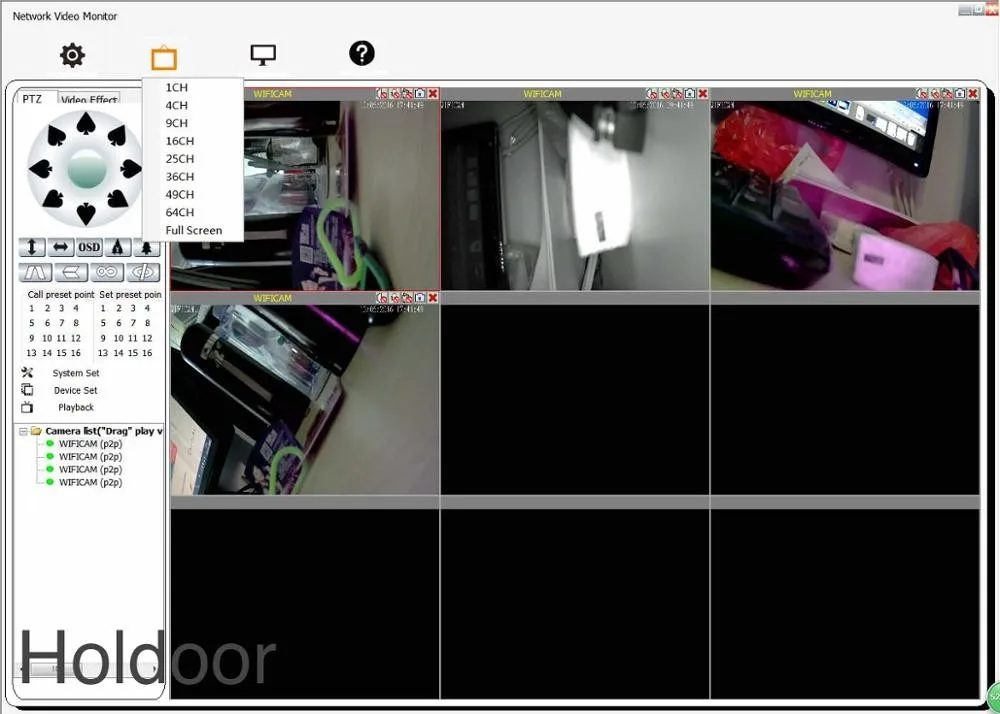

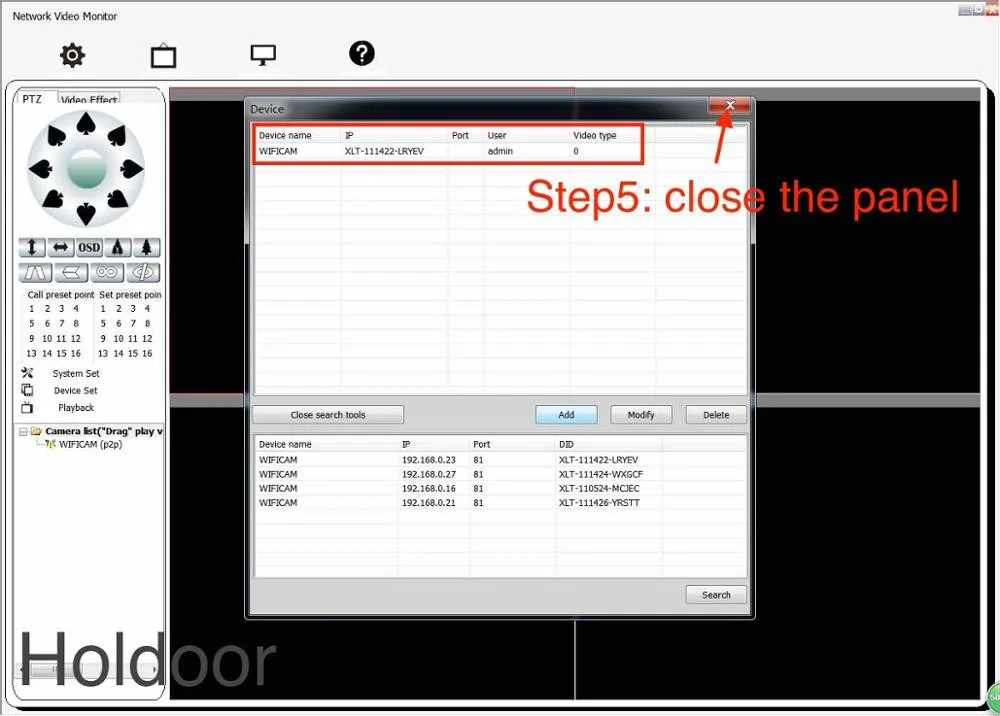

>> PC Client Simple Instruction



21 22 24 25 5
27 28 29 30 31 32
33
>>Local Web Remote Simple Instruction







>> Specification

Camera

Image Sensor

1/4" 1.0Megapixel progresive CMOS

Effective Pixels

1280(H) x720(V)

RAM/ROM

256MB/16MB

Scanning System

Progressive

Minimum Illumination

0.5Lux/F2.5(Color), 0Lux/F2.5(IR on)

S/N Ratio

More than 50dB

IR Distance

Distance up to 22m

IR On/Off Control

Auto/ Manual

LED

24

Len:

Lens Type

Fixed

Mount Type

Board-in

Focal Length

3.6 mm

Max. Aperture

F2.5

Angle of View

H:73.5°, V:/53°

Focus Control

Fixed

Close Focus Distance

N/A

PTZ

Pan/Tilt Range

Pan:0° ~360° ;Tilt:0° ~90° ;Rotation:0° ~360°

Video

Compression

H.264+/H.264

Streaming Capability

2 Streams

Resolution

1.0M 720P(1280×720)

Frame Rate

1.0M (1 ~ 25/30fps)

D1/CIF(1 ~ 25/30fps)

Bit Rate Control

CBR/VBR

Bit Rate

H264:24K ~ 8192Kbps

Day/Night

Auto(ICR) / Color / B/W

BLC Mode

BLC / HLC / DWDR

White Balance

Auto/Natural/Street Lamp/Outdoor/Manual

Gain Control

Auto/Manual

Noise Reduction

3D DNR

Motion Detetion

Off / On (4 Zone, Rectangle)

Region of Interest

Off / On (4 Zone)

Electronic Image

Support

Smart IR

Support

Digital Zoom

N/A

Flip

0°/90°/180°/270°

Mirror

Off / On

Privacy Masking

N/A

Audio

Compression

N/A

Network

Ethernet

RJ-45 (10/1000Base-T)

Protocol

HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;

DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP;

Bonjour;802.1x;Multicast;ICMP;IGMP;

Interoperability

ONVIF

Streaming Method

Unicast / Multicast

Max. User Access

5 Users

Edge Storage

NAS(Network Attached Storage)

Local PC for instant recording

Web Viewer

IE, Firefox

Management Software

NetCam

Smart Phone

iPhone, Android Phone

Certifications

Certifications

CE (EN 60950:2000)

UL:UL60950-1

FCC: FCC Part 15 Subpart B

Interface

Video Interface

N/A

Audio Interface

N/A

RS485

N/A

Alarm

N/A

Electrical

Power Supply

DC12V

Power Consumption

<8W



-39404243FAQ120144

46



29





Packaging Details
  • Unit Type: piece
  • Package Weight: 0.7kg (1.54lb.)
  • Package Size: 15cm x 10cm x 15cm (5.91in x 3.94in x 5.91in)
