  • Brand Name: blueskysea
  • Model Number: IPC-1600
Product Description
  Portable Wrist 3.5" Touch LCD Screen IP Analog Network Camera Tester PTZ Control

 Our device comes with one Free wrist band,real portable design!!

  3



Wrist IP camera tester/ Touch screen3.5 Wide angle screen display,320*240 Resolution / built in WIFI/ Compatible with more than 80 camera models test, such as Dahua, HIKVISION, and ACTI /Mobile apps of the IP camera/ 12V 1A power output

3.5 inch touch screen IP camera tester is designed for maintenance and installation of IP cameras and analog cameras t. Its portability, user-friendly design and many other functions make the IP tester an essential tool for all installers or technicians.





Apply for:

CCTV system installation and maintenance

Network cabling project installation and maintenance
Dome camera and all in one camera testing
Video transmission channel testing

PTZ control

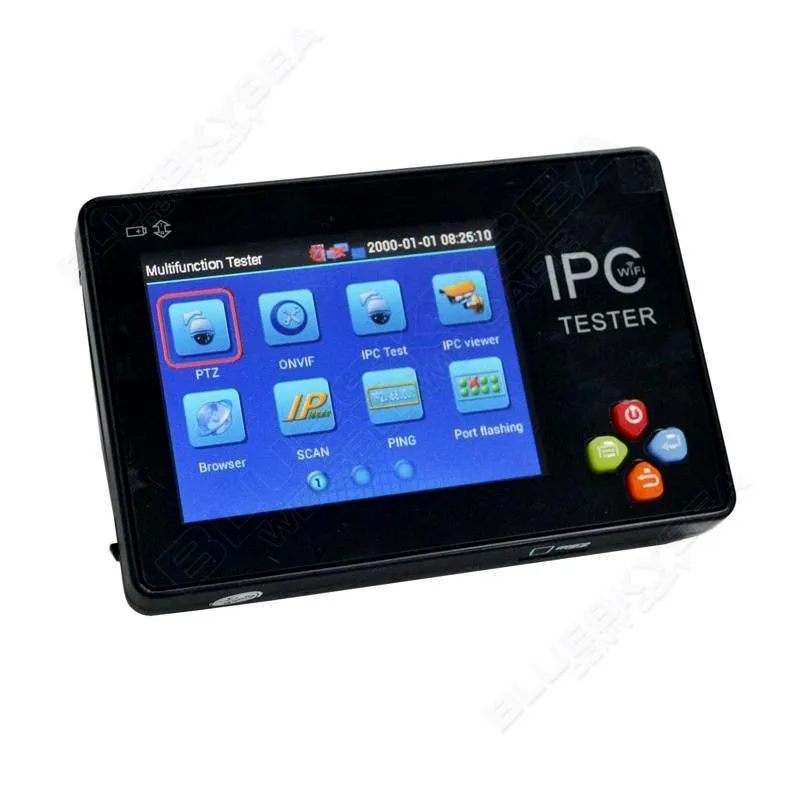

Main interface:
Supports IP Camera test+ Analogy Camera test
Can not test AHD/TVI/CVI/SDI camera

Specification:
1.Capacity touch screen 3.5 inch wide angle screen display ,320(RGB)*240 resolution

2.Wrist designer ,easy to carry and operate
3.Apps folder
4.Combine touch screen and key button
5.Built in WIFI, can receive image from wireless camera
6.Display IP camera\'s image by its genuine resolution, support 1080P
7.Compatible with more than 80 camera models test, such as Dahua, HIKVISION, and ACTI
8.Support Mobile apps of the IP camera
9.IP camera image display, Video record and snapshot
10.ONVIF PTZ control
11.Support 1080P HD video and MKA /MP4/media files play
12.Analog camera image display, PTZ control, 4x zoom the image, video record
13.PING, IP address scan, Port finder r etc
14.DC12V 1A power output
15.Audio in test
16.App tools (Calculator, Media Player etc)
17.Support customers self update software

18.Lithium Ion Polymer Battery, working time lasts 8 hours




Model

IP Tester IPC-1600

Screen display

Capacity touch screen 3.5 inch touch screen display, 320(RGB)*240 resolution

Network port

10/100M auto-adapt, RJ45

WiFi

Built-in WiFi, rate 150M, receive the image from the IP camera

IP camera test

ONVIF,ONVIF PTZ, Dahua IPC-HFW2100P, Hikvision DS-2CD864-E13, Samsung SNZ-5200, Tiandy TD-NC9200S2, Kodak IPC120L, Honeywell HICC-2300T, customizable acceptable

Video IN

1channel Video BNC IN,PAL/NTSC

Zoom image

Analog camera image 4xzoom ,and IP camera image 4xzoom and move

Snapshot, video record and playback

Capture the video image displayed and save as a JPEG file. The recorded files can play directly via Media player or under the function of "Playback".

DC 12Vpower output

Output DC12V1A power for camera

Audio test

1 channel audio signal input, test whether the sound normal, can save the record

PTZ control

Support RS232/RS485 control, rate 600-115200bps

Compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic, Lilin, Yaan, etc.

Data monitor

Captures and analyzes the command data from controlling device (RS185/RS232)

Network test

IP address scan, link monitor, Ping. Find out the connected IP camera or the other network equipment IP address quickly

Power

Power Adapter:

DC 5V(1.5A)

Battery:

Built-in 3.7V Lithium polymer battery ,3000mAh

Rechargeable:

After charging 3-4 hour, working time lasts 8 hours

Parameter

Operation setting:

English/Chinese and other languages can choose

Auto off:

5-30 (mins)

General

Working Temperature

-10C---+50C

Working Humidity

30%-90%

Dimension/Weight

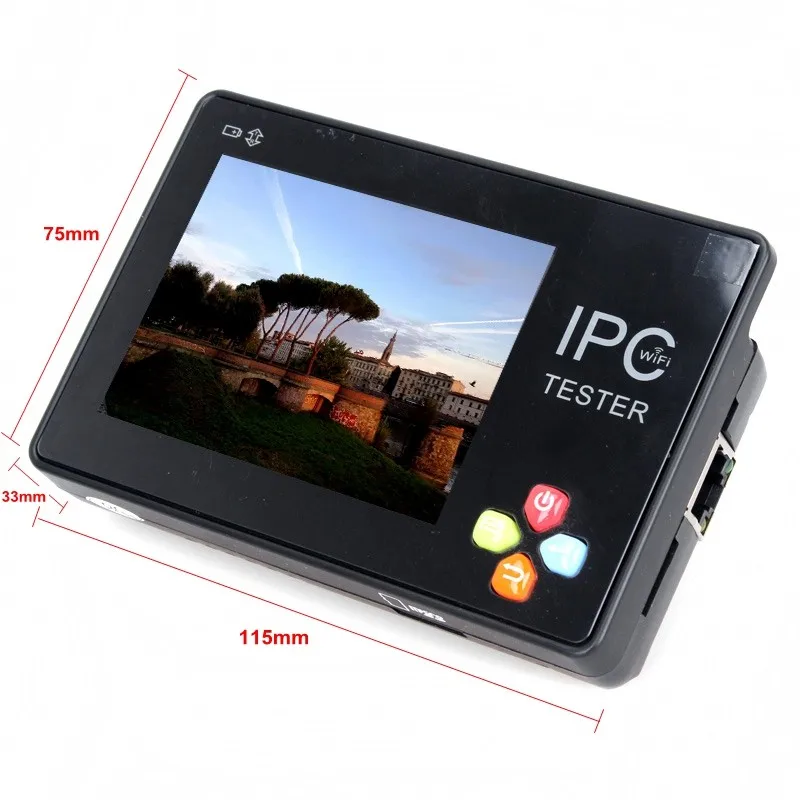

115mm x 75mm x 33mm / 300g

s-l1600 (2)

Note: The tester doesn\'t come with SD card.

s-l1600
What is in package:
1x host device
1x carry bag
1x USB charger
1x BNC cable
1x Audio test cable
1x RS232/485 Data cable
1x USB Cable
1x DC output cable
s-l1600 (3)


Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 18cm x 12cm x 7cm (7.09in x 4.72in x 2.76in)
