Item specifics
  • Brand Name: ximiir
  • Model Number: F18
  • Place of orgin: China
  • Fingerprint capacity: 3000
  • transaction capacity: 100000
  • Communication: TCP/IP USB RS232/485
  • Electric lock: 12V bolt lock
  • Power supply: 12V5A 110-240V 50/60HZ
  • Exit button: 12V Metal exit button
  • Door bell: 12V wired door bell
  • Remote control: 1 to 1 12V remote control
Product Description

A01



Introduction:
F18 is an innovative biometric fingerprint reader for access control applications, offering unparalleled performance using an advanced algorithm for reliability, precision and excellent matching speed. The F18 features the fastest commercial-based fingerprint matching algorithm and ZK high-performance, high-image quality optical fingerprint sensor. The device offers the flexibility to be installed standalone or with any third party panel that supports 26-bit Wiegand. All the operation can be done on the TFT-LCD. The fingerprint image will display on the screen . That will guide the user to put the finger on to proper position and increase the recognition rate.
TCP/IP and RS485 are available that the device can be used in different network.

Features:
Fingerprint reader with durable and highly accurate ZK optical sensor
1 touch a-second user recognition
Stores 3,000 templates,100,000 transactions
Reads Fingerprint and/or Card
Optional integrated smart card reader
Built-in Serial and Ethernet ports
Tamper-proofs switch and alarm outputs
Request-to-exit and alarm contacts
Audio-Visual indications for acceptance and rejection of valid/invalid fingers

Specifications:
Fingerprint Capacity:3000 templates
ID/IC card Capacity:Optional
Transaction Capacity:100,000
Sensor:ZK Optical Sensor
Algorithm Version:ZK Finger v10.0
Communication:RS232/485, TCP/IP, USB-host
Access Control Interface for:3rd party electric lock, door sensor, exit button, alarm, Door Bell
Wiegand Signal:Output and Input
Display:TFT LCD Screen
Standard function:Webserver, DLST
Optional function:MF card
Power Supply:12V DC
Operating Temperature:0 C- 45C
Operating Humidity:20%-80%
 Operating Temperature:0 C- 45C
 Operating Humidity:20%-80%



Image:

c02c03c07c09


0102

Electric Lock:

Features:
Secure mode: The door will lock while supplied with power, and unlock without power.
Especially suitable for glass doors.
It is made from durable and high aluminium alloy material, durable for use.
Special circuit design, the door will unlock until the power is cut off.
With no external interference, making it more stable and safer.

Specifications:
Color: Silver
Material: Aluminium Alloy
Working Voltage: DC 12V
Working Current:
Ordinary Mode:
Start State: 450mA
Persistent State: 450mA
Normal Mode:
Start State: 750mA
Persistent State: 180mA
Lock Mode: Magnetic Induction
Lock Size: 20.3 * 3.4 * 4.2cm / 8 * 1.34 * 1.65in (L * W * H)
Lock Weight: 425g / 15oz
Face Plate Size: 21.3 * 4.2cm / 8.4 * 1.65in (L * W)
Face Plate Weight: 31g / 1.08oz
Magnetic Base Size: 9 * 2.5cm / 3.54 * 0.98in (L * W)
Magnetic Base Weight: 16g / 0.58oz
Package Weight: 500g / 17.6oz

001002

B02

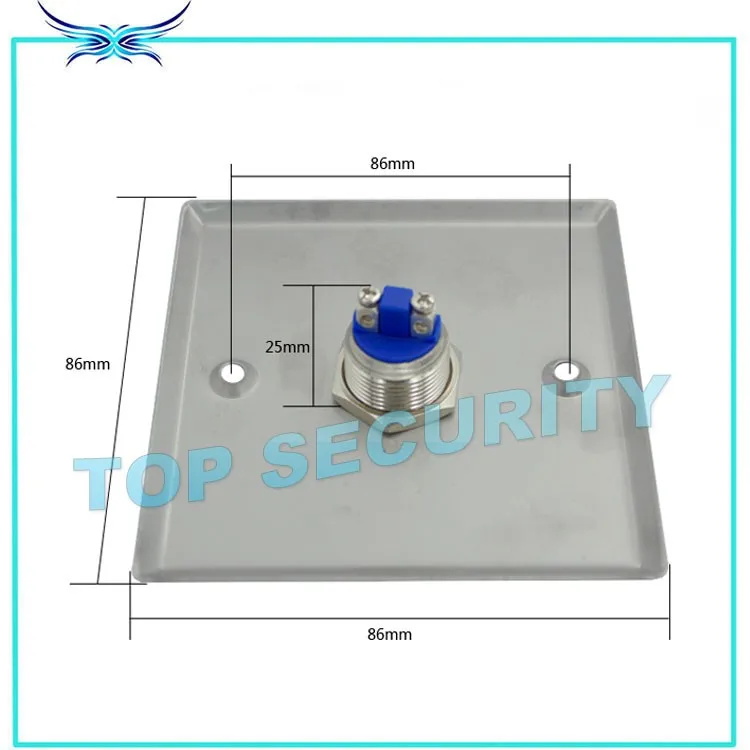

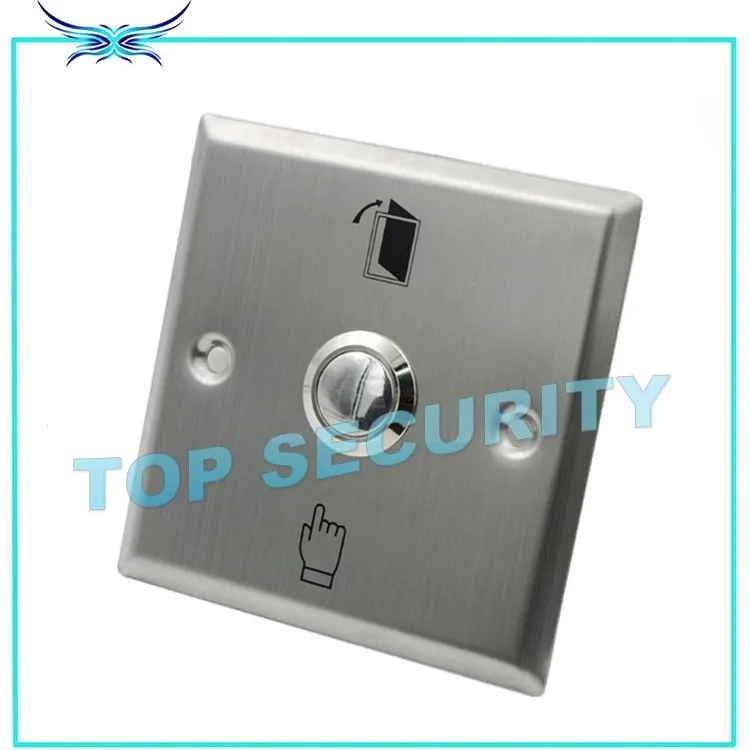

Exit Button:
Product  Description:

Door release buttons are the most common and the frequently used in the access control systems. They are often used in public authorities, banks, large, small and medium-sized enterprises, department stores and residences.



Specification:
Dimensions 86Lx86Wx20H(mm)
Input  DC12V
Contact Rating  3A@36VDC Max
Output Contact   NO\\COM
Mechanical Life 500000 tests
Suitable for Door  Hollow Door
Operating temp  -20~+55 degree(14-131F)
Suitable Humidity 0-95% (relative humidity)
Color White, Blue (luminescence)
Weight  0.15kg
Standard Packing  60pcs/carton





C01C02

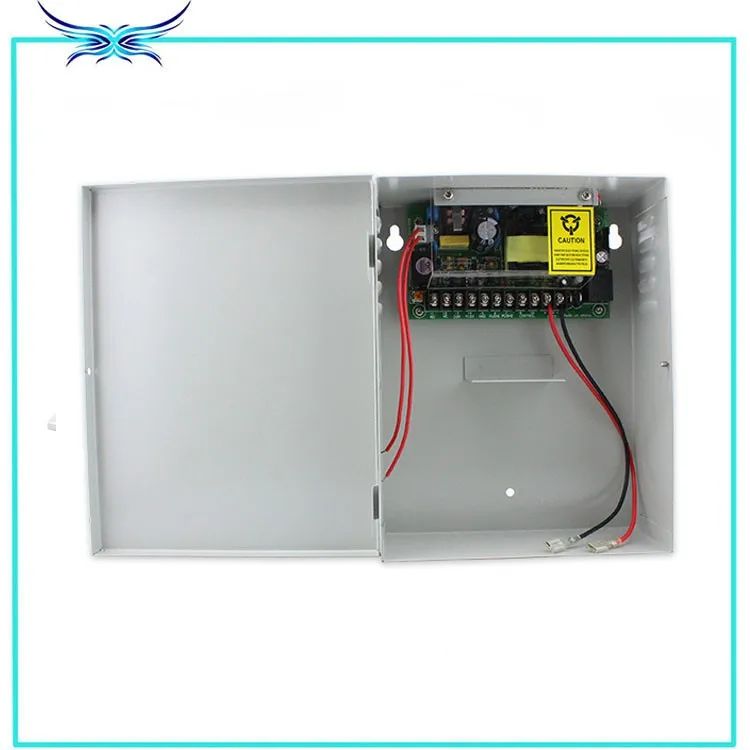

Power supply:
Features:
100% Brand New.
Size: Approx. 212 x 172 x 70mm(L x W x H)
Weight: 1.1kg
Input voltage: 110~240v
Input Frequency: 50~60Hz
Output voltage: DC 12V
Output Current: 5A
Output voltage trim range: ±10%~ ±15%
Insulation voltage: Junior/sub-polar inter-1500v ac, primary/shell between 1500V AC, subpolar/shell between 500V AC
Hold time: full load typically 20ms
Operating temperature: -20~ ±35 degree
Overload protection: All output in a short circuit, overload are protected; Power output of 0-15 seconds delay locks
C02C01
Wired door bell:
Specifications:
  • Wired door bell 12V for security access control
  • 100% Brand New and high quality
  • Features a bell sound, small size and wall-mount hole, very easy to install
  • Switch is not included
  • Working Voltage: DC 12V
  • Dimension:

    - Approx. 87 (W) x 62 (H) x 23 (D) mm
    - Approx. 3-1/2" (W) x 2-1/2" (H) x 1" (D) inch

  • Material: Plastic
  • Color: White



Wiring Instructions:

  • Red           +12V
  • Black         GND
  • Yellow       SWITCH
  • Green       SWITCHB03
Remote control:
Product instroction

The company receives the remote control board, suitable for security alarm, remote control electric doors and Windows, signal control, industrial control, the electric control circuit of lifting equipment, etc. All remote control switch module, relay contact output independently, is very suitable for direct control of various load; Products adopt wireless fixed code technology, omnidirectional, noninterference switch. 12 v remote control switch, the power supply proposal with more than 500 ma dc regulated power supply.



Specification:

1. Transmitter

Channel: 1 CH
Remote Control Distance: 0-50m
(Please notice that is the ideal distance without any block and signal interfere, it would rise and  fall about 10%-50% with the block and signal interference.)
Encode: Fixed code, soldering 2260 2262
Frequency: 315MHz or 433MHz (Default 315MHz)

2. Receiver
Channel: 1CH
Power Supply (Operating Voltage): DC 12V
Relay: 10A/250V AC, 10A/125V AC, 10A/30V DC, 10A/28V DC
Sensitivity: -105 dBm
Operating Temperature: -40 C ~ +80 C
Size:  70mm*50mm*18mm
Output way: Inter-lock
B01


packing5part6

Packaging Details
  • Unit Type: piece
  • Package Weight: 2.5kg (5.51lb.)
  • Package Size: 28cm x 25cm x 25cm (11.02in x 9.84in x 9.84in)
