Item specifics
  • Brand Name: ximiir
  • Model Number: SC700
  • Place of orgin: China
  • ID card Capacity: 30000
  • Log Capacity: 100000
  • Communication: TCP/IP,USB-host
  • Power Supply: 12V ,3A
  • is_customized: Yes
Product Description
Introduction:

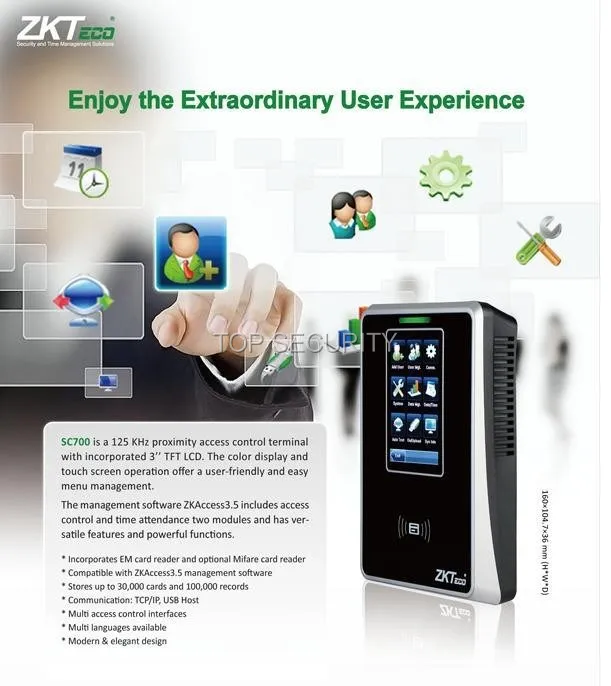

SC700 is a 125Khz proximity access control terminal with incorporated 3 TFT LCD, the color display and touch screen operation offers a user-friendly and easy menu management.
It can connect to ZKAcess3.5 management software by Ethernet, and also operate on standalone mode, downloading data by USB flash drive. Easy to install, and with a modern design, it is the perfect solution for small installations.


Features:
* 3-inch TFT color display and touch screen for operation
* Embedded with the latest firmware which is compatible with ZKAccess3.5 management software
* Incorporates EM card reader and optional Mifare card reader.
* Stores up to 30,000 cards and 100,000 records
* Access control interface for 3rd party electric lock, door sensor, exit button and alarm
* Multi-language available


Specifications:
Display: 3 Inches Touch Screen
ID Card Capacity: 30,000
Logs Capacity: 100,000
Communication: TCP/IP, USB Host
Standard Functions: RFID card, Automatic Status Switch,T9 Input, Multi-verification Method.
Access Control Interface: 3rd Party Electric Lock, Door Sensor, Exit Button, Alarm.
Optional Function: Mi-fare Card
Power Supply: 12V/3A
Operating Temperature: 0C-45C
Operating Humidity: 20%-80%
Dimensions (H*W*D): 160*104.7*36 mm


Image:
002004

E01E03E06E04E02E07
E08



5part5

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.0kg (2.20lb.)
  • Package Size: 25cm x 12cm x 8cm (9.84in x 4.72in x 3.15in)
