Item specifics
  • Sensor Size(Inch): 1/3
  • Communication Interface: Wired
  • Samrt Home Interface: No
  • Access Control: None
  • Display Screen Size(inch): 7
  • Material: METAL ABS
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Brand Name: JERUAN
  • Zone Input: None
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Viewing Angle (°): 92
  • Power: 15V DC
  • Doorbell: Yes
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Model Number: 720B-D5
  • Display Screen Type: Color
  • Waterproof: Yes
  • Resolution: 700TVline
  • Camera: color
  • Power: 100V~240V
Product Description

7 inch Color Video door phone  Intercom system 1 monitor+700TVL camera for metal panle IR camera



1 monitor + 700 TVL camera

720B-D5

7`` color TFT LCD screen ,low power consumption without radiation ,real wide display wish high resolution.

The item you are watching is our new arrival video door phone system ,This allows you can see who visited your house.

The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design.  It is a good choice for your home security and intercom.

This item contains 1 outdoor unit and 1 indoor unit.

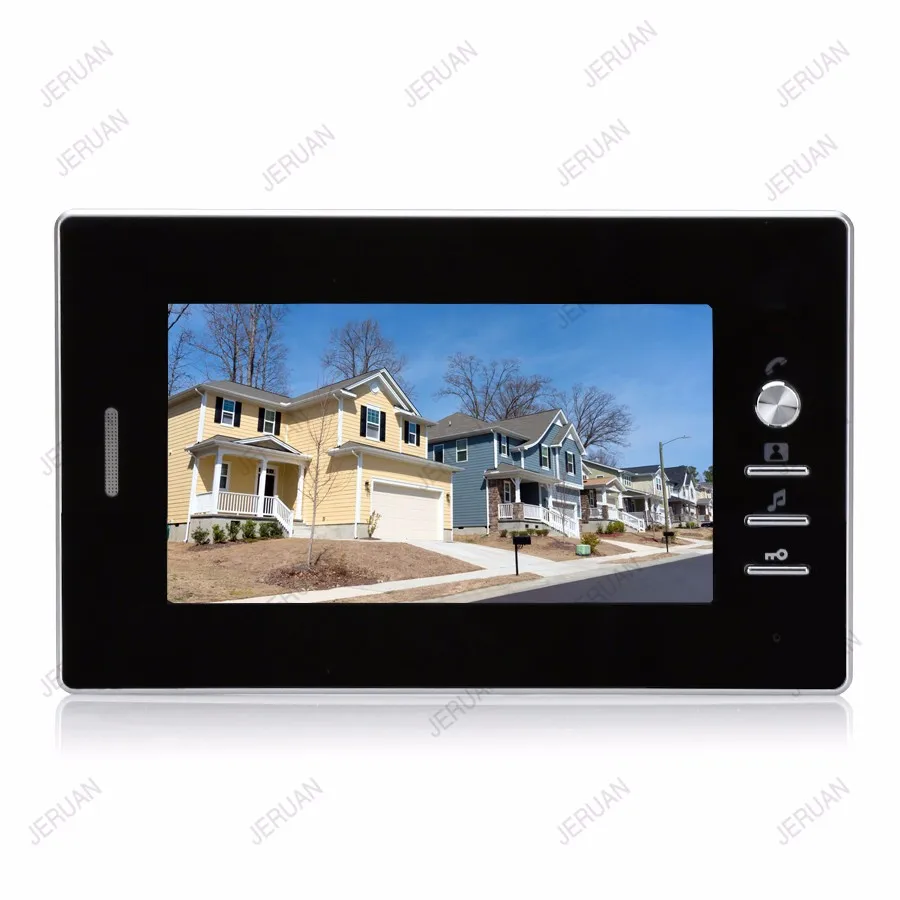

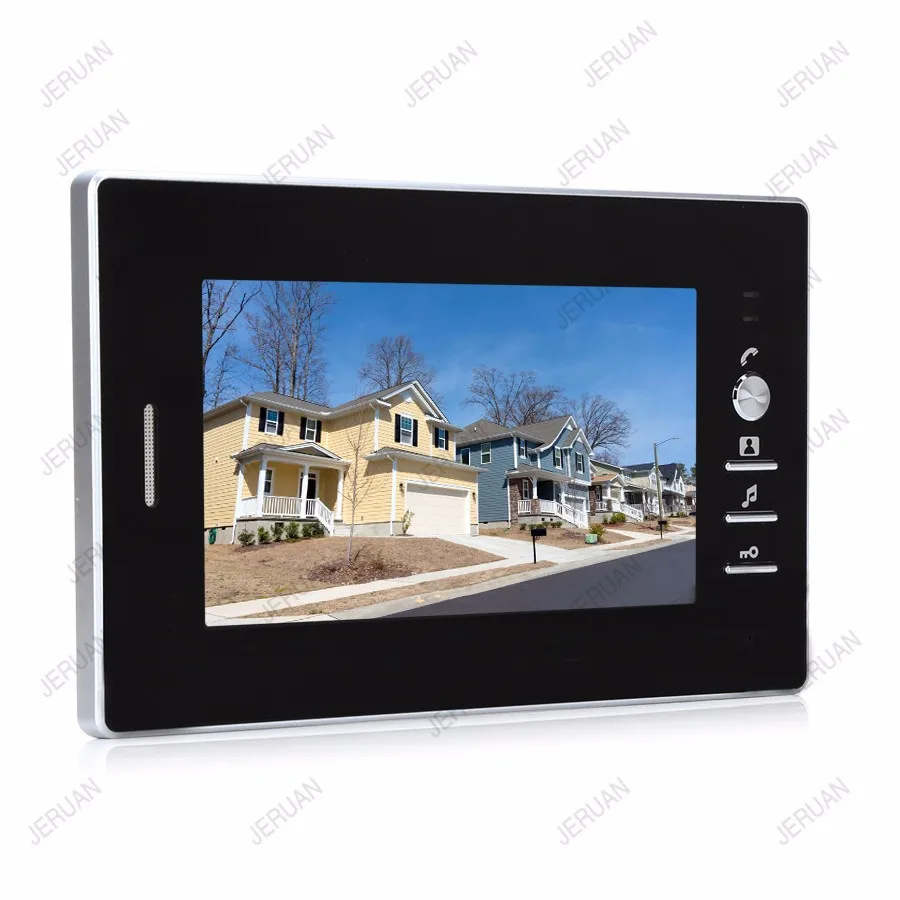

Indoor Unit Specification:

Screen size:7”(16:9 display)
Resolution: digital:800(RGB)×480Pixel
Visual angle: up 50 degree, down 70 degree, left or right 70 degree
Brightness: 200cd/centiare
Ringtone: chorded polyphonic ringtone
Sensitivity: 56db
Signal system: PAL/NTSC (optional)
Input voltage: AC 100V-240V ~ 50Hz/60Hz
Overall Power Consumption:≤6W(400mA)
Stand-by Power Consumption:<1.1W
Power Adapter Specifications: DC 15V 1000-1500mA
Talk Time Delay: 120S±10%
Monitor Time Delay: 40S±10%
Effective distance:200M(4×0.75M centiare)
Operating Temperature:-20~+60 degree
Relative humidity:10%~90%(KH)
Indoor unit installation method: wall-mounted type

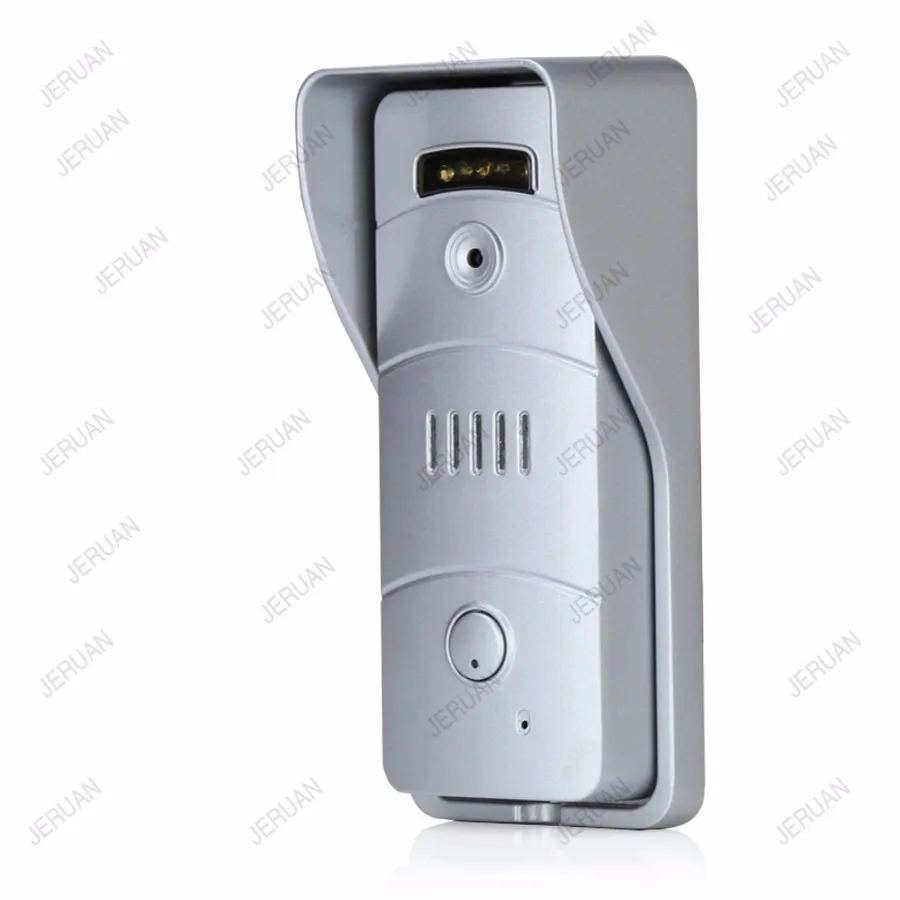

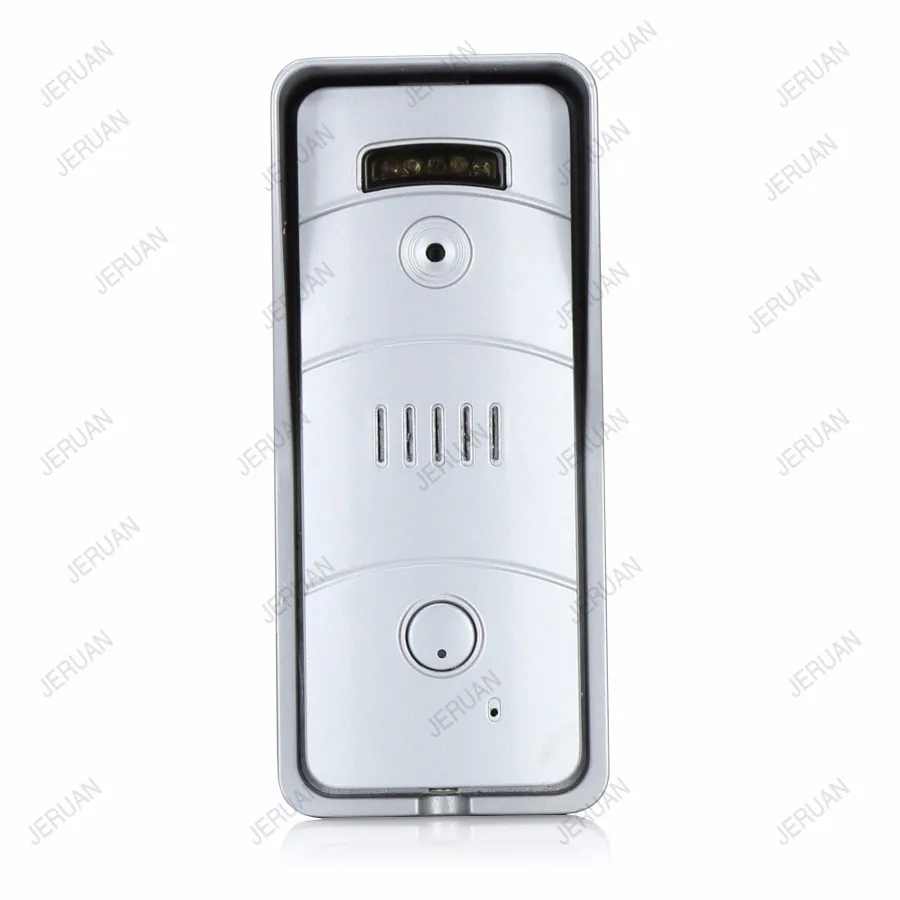

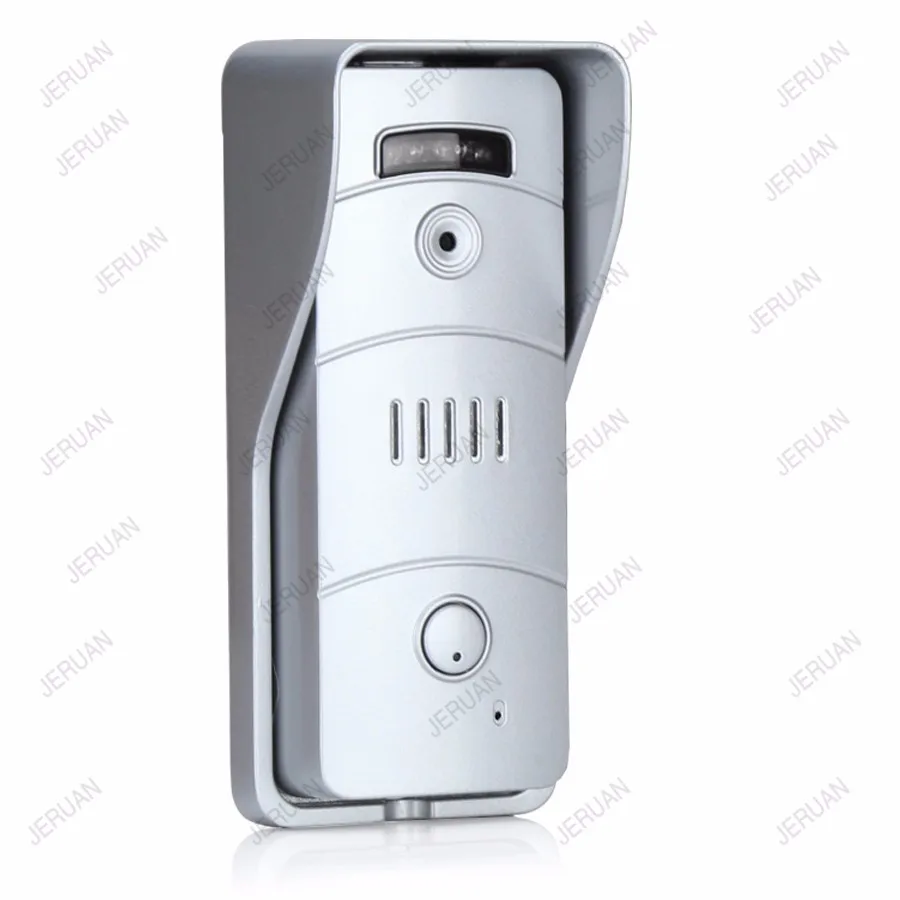

Outdoor Unit Specification:

Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution: 700  lines
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle:  92
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-20~+60 degree
Outdoor unit installation method: embedded or wall-mounted type

720-B-3 720-B-4

720-B-2S
720-B-1

D5-2 D5-3 D5-4 D5-5s

D5-1

Note:If your door lock  is Electric control  lock, you can connect the door phone to the lock follow the picture  , if your  door lock is mute lock  or magnetic lock , You need to connect by access control power supply. Thank you

Note:

The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

Specification:

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance
More than 2 meters
Working Temperature
-20 degrees ~ +60 degrees
Intensity of Illumination
0.01 lux
Lens
2.3mm

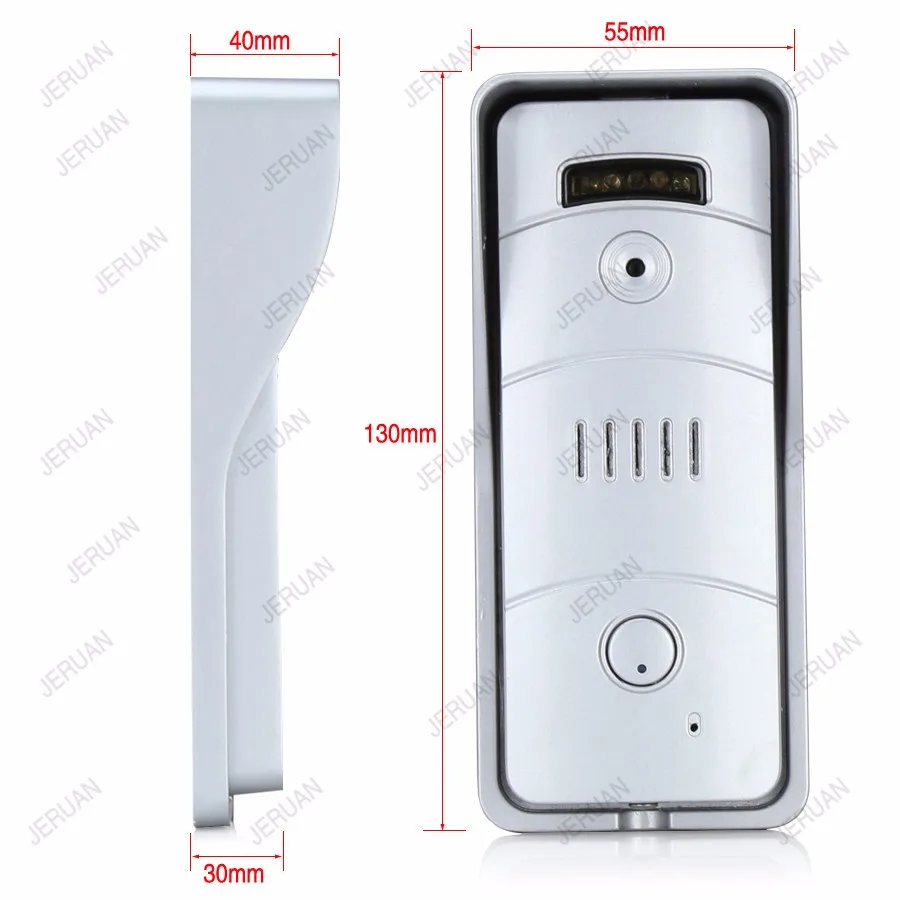

Dimension
130mm(L) x55mm(W) x 30mm(H)
Installation
Surface mounted
Material
METAL
Net Weight(g)
300
Model
D5
Indoor Monitor
Screen
7" LCD Digital 4:3 Display
Effective Pixels
800 x 480
Delay Calling Time
120s ± 10%
Delay monitoring time
40s ± 10%
Adapter Input
AC100 - 240V 50-60HZ
Adapter Output
DC15V
Unit Consumption
Less than 6W 400mA, standby than 1.1W
Working Temperature
-20 degrees ~ 60degrees
Installation
Wall mounted

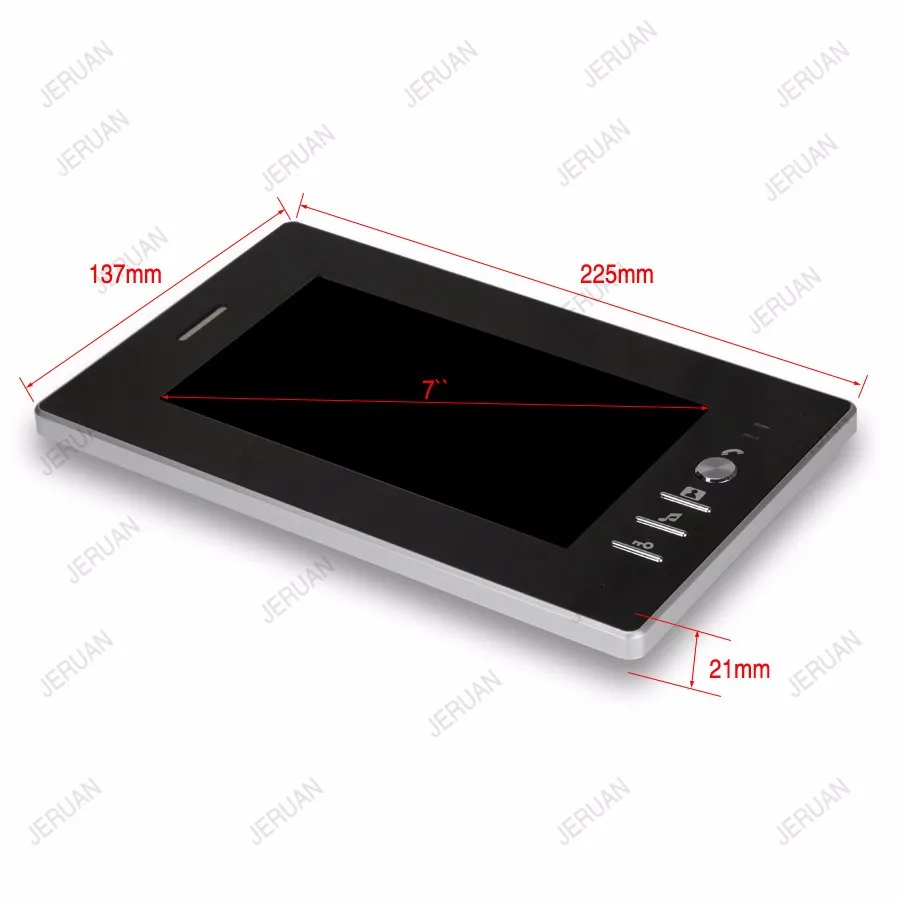

Dimension
225mm(L) x 130mm(W) x21mm(H)
Weight
320G
Model
720B

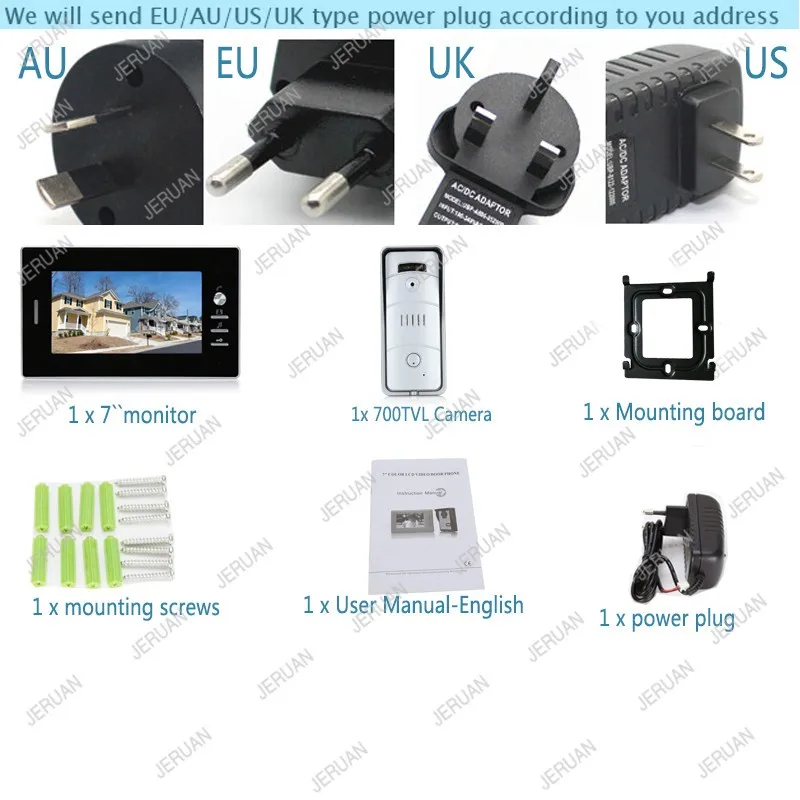

What\'s in the box:
