Report item
Item specifics
  • Size: 217 mm *142 mm *26 mm
  • Waterproof: No
  • Type: Indoor Machine
  • Communication Interface: Wireless
  • Camera Sensor type: CMOS
  • Power: POE:24V with Hik swich;DC 12V;
  • Zone Input: 8
  • Access Control: Inductive Card
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: No
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: Yes
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Display Screen Type: Color Touch Screen
  • Model Number: DS-KH8301-A
  • Camera: Color
  • Power: 10w
  • Resolution: 1024*600 color TFT LCD
  • Viewing Angle (°): 120degree
Product Description

custom module-recommend

cumtom--module(1)_01cumtom--module(1)_02cumtom--module(1)_03cumtom--module(1)_04cumtom--module(1)_05cumtom--module(1)_06cumtom--module(1)_07cumtom--module(1)_08



Hik 7\'\'\' Color Touch Screen Video Intercom DS-KH8301-A With 8 Access SOS Emergency Indoor Video Mornitor Support IP Camera Alarm

DS-KH8301-A for 7\'\' touch indoor machine, toughened glass panels, silver frame, after the dermatoglyph shell, highlight the noble qualities. A variety of color, black and silver (black gold, platinum, silver optional). Interface flattening, information visualization with capacitive touch screen and touch key, make

information within reach.



DS-KH8301-A Integrated with 0.3 MP camera, many sets of indoor machine can video calls

When using multiple keys at the door of machine, also can communicate between indoor machine;

Hik can be connected to the same local area network cameras and video surveillance video images;

The door machine from indoor machine can be used alone, but only a credit card to open the door, when simple entrance guard controller is used, as well as access to the LAN hik in video recorder;

Indoor machine can be used alone out of the door machine, may receive alarm detector (gas detectors, smoke detectors, infrared detectors, emergency button, gate magnetism, etc.), when the alarm host, you can also preview LAN hik in the camera images.



features

l support visible intercom

l support family video calls

l support video monitoring

l take message function

l automatic reply and don\'t disturb function

l privacy protection

l hardware noise suppression and echo cancellation, ensure the quality of voice clear and bright

l hall function

l alarm function (8 access road protection zones, SOS emergency)

l community bulletin

l Wifi access wireless network

l mobile phone APP access (iOS)

l engineering installation convenience





Specifications



DS-KH8301-A

System

Image Sensor:         | High-performance embedded processor SOC processors

Operating system:     | Embedded Linux operating system

Video

Lens:             | CMOS 30MP

Video Compression: | H.264

Resolution:         | 648x480

Frame Rate:         | PAL:25fps  NTSC:30fps

Display

Display screens:     | 7 inch TFT color LCD screen

Max. Image Resolution: | 1024x600

Operating Mode:     | Capacitive touch screen, touch the keys

Operation interface:    | Flat style UI interface, beautiful atmosphere, easy operation



Audio

Audio Input:         | Built-in all point to the microphone

Audio Output:         | Built-in speakers

Audio Compression: | G.711U

Audio bit rate:         | 64Kbps

Sound quality:         | support for noise suppression and echo cancellation

Network

Ethernet:             | 10 m / 100 m adaptive

Protocols:         | TCP/IP.SNMP.SIP.RTSP

Wireless networks:     | WiFi  802.11b/g/n



Alarm

Alarm Input:         | 8 access road protection zones, SOS emergency

Interface

Communication Interface: | 1 RJ45 10M/100M Ethernet port

RS485:             | 2  RS485 Half duplex

I/O Output:         | 2

On-board storage:     | TF card, up to 128 GB

General

Operating Conditions: | -10 °C ~ 55 °C

Humidity             |   Working humidity 10% to 90%

Power Supply:         | 12 VDC ± 10%, PoE (802.3af)

Power Consumption: | Max. 10 W

Dimensions:         | 217 mm × 142 mm × 26 mm

applications

step1_Active:Open the ivms-4200. Activate the device.

1-1

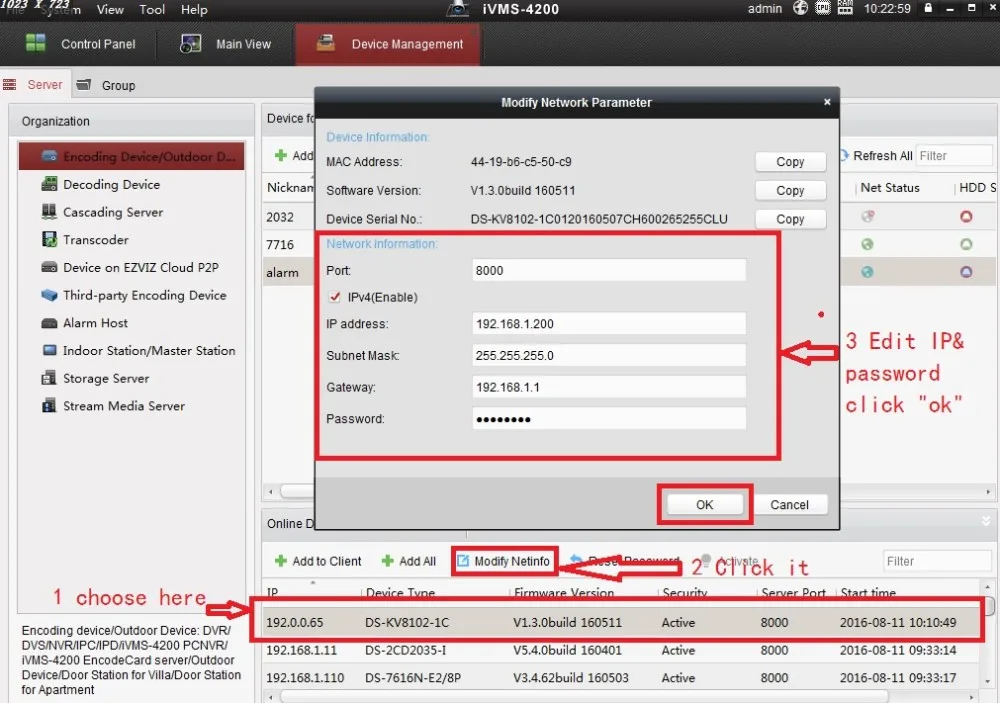

step2_Edit NET Parameters:


1-2

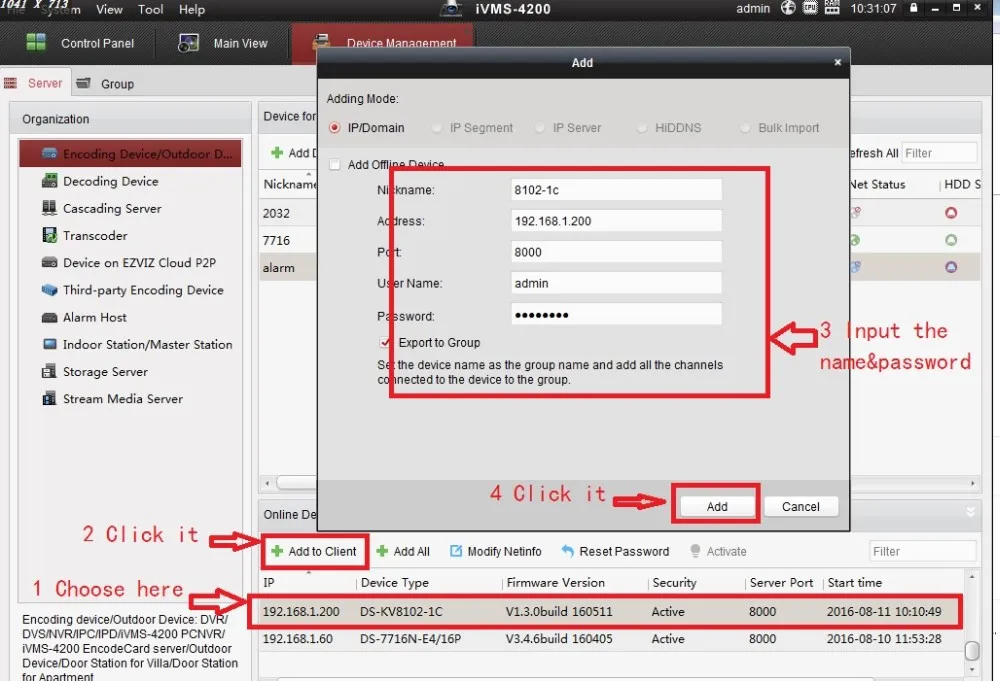

step3_Add to Device List:


1-3

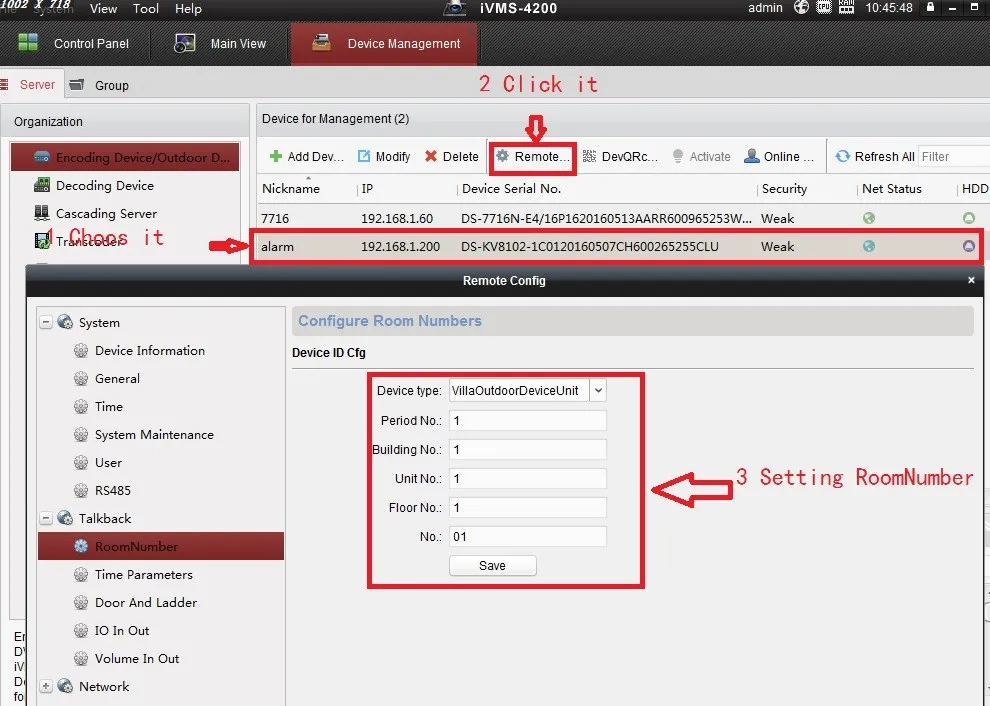

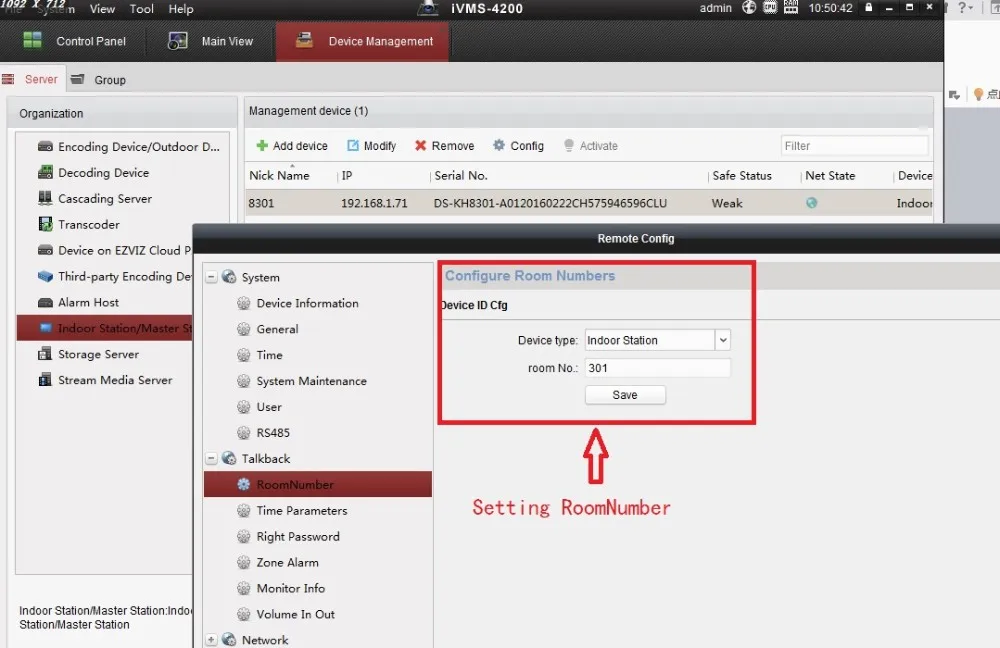

setp4_set Room No:Outdoor device :DS-KV8102-1C  Indoor Device:DS-KH8301-A.


1-41-5

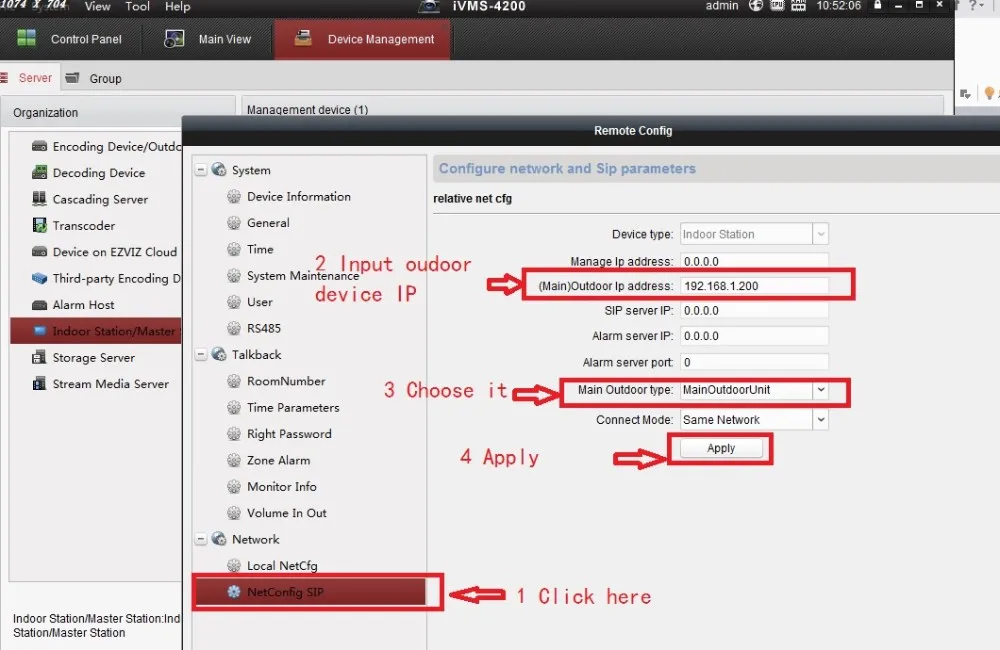

setp5_set Outdoor Device IP in Indoor Device:



1-6

Important:

If you want to configure the second or more indoor Monitor,

There are two kinds of schemes

it depends on your Out Door Stations

If you want to press a button, all the Indoor Monitor of ring, Like this:

2-1

You need this operation on the Indoor Monitor:

2-2

2-52-32-4

If you want to separate each button, call each layer of the extension,you should use the DS-KV8402-1A the Like this:

3-43-13-23-3

Of course, you can use the DS-KV8402-1A used as DS - KV8102-1C .

4-1

4.Input the camera name, IP,password,then click the “save”button4-2

The Live View

1.Door station live view


:

4-3

1.The camera live view:

4-4

1234
