Item specifics
  • Kit Configuration: One to One video doorphone
  • Power: DC15V
  • Model Number: MJIDSE12
  • Answering Mode: Hands-free
  • Viewing Angle (°): 92
  • Display Screen Type: Color Touch Screen
  • Camera Sensor type: CMOS
  • Display Screen Size(inch): 7
  • Waterproof: Yes
  • Type: Intercom System
  • Sensor Size(Inch): 1/4
  • Installation: Wall Mounting
  • Size: 155*95*55MM
  • Technology: Digital
  • Communication Interface: Wired
  • Doorbell: Yes
  • IP Camera Interface: No
  • Samrt Home Interface: Yes
  • Connection Method: Wired
  • Access Control: unlock button+password+remote control
  • Zone Input: The doorbell motion detecting
  • Power: working state: 8W, standby state: 0.5W
Product Description

7" LCD Touch Button RFID&passowrd Video Intercom Door Phone doorbell Home Intercom&1000 TV Line IR Camera 5pcs keyfobs remote

Unlock via unlock button on the monitor, RFID key fobs, password +Remote control

Descriptions



The outdoor unit is controlled by code and rfid, it is internal integrated with the visual intercom circuit to connect indoor monitor.and use it to intercom, and unlock the door.



This is wired security system product you are watching now is the latest popular, fashional, goodlooking and convenient door phone kit with 1-camera and 1-monitor which has a large screen and provides a beautiful vision and safe feeling with a very simple installation and usage. It adopts advanced technology and the latest computer chips which highly improves the stability and durability of the system. The design of ultrathin wall mounting will also make this product light and convenient. As to the applications, it can be widely used in apartments, villas, hotels and offices etc.



The funtions mainly include big screen, hands-free monitor, two-way intercom, high-definition visibility, lock control, infrared night-vision outdoor station, adjustable intercom volume and screen color of the product . More details are shown as follow.

The outdoor unit  is s a standalone access control, they use the latest microprocessor technology to operate door strikes and security systems that require a momentary (timed) or latching dry contact closure.

All programming is done through the keypad. Codes and operating parameters are stored within the microprocessor and can not be lost due to power failure.

Support 125KHz EM card.

3 ways to unlock( remote unlock, code,rfid)
Can work as a standalone keypad (PIN code length: 4-6 digits).
Relay output load can be 3A max.


Features

7”color TFT LCD with sensitivity touch panel, low power consumption.

Infared LEDs for night vision, more convenient.

Rainproof cover design, antioxidative Outdoor Unit with PMMA panel.

25 kinds of rings for selection.

The Volume, brightness and contrast can be adjusted.

PMMA panel design on indoor unit, more fashionable and luxury.

Hands free intercom, one-button touch makes perfect experience.

Can work with an electronic strike lock , a push release button switch ect.

one outdoor camera can support up to four indoor monitors or two outdoor cameras can support up to four indoor monitors.



Detail shows

7 inch TFT color LCD display screen,adopt advanced touch technology,without radiation, low power consumption, high definition and with sensitive touch key press control.

brings more sensitive touch experience

816-1



It combines many functions in one: two-way intercom, surveillance, unlock, hands free call and talk, etc.

816-2

The ultra-slim design, nice and luxurious, and with a mounting plate, it can be installed on walls easily.

816-1

The back-hang design also is one of the advantages, which make the monitor be installed more easily and convenient.It can be installed anywhere you want.

816-6

The Volume, brightness and chroma can be adjusted to meet your need. Besides, there are 25 kinds of music rings for selection.

816 (2)

The outdoor camera is attached with a rain proof cover to prevent the water and protect the outdoor camera from damage. But, we still suggest you do not install your outdoor camera the place where is easily expose to the heavy rain

A-MJIDS (1)

Outdoor camera with clear IR night vision can monitor and capture images in low-illumination environment.

videodoor phone (6)

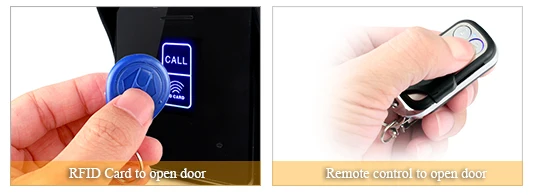

Indoor unlock

There are 3 ways to open the door lock when you are indoor: pressing the unlock button on the screen; pushing the release button switch; using a wireless controler. It is very convenient for your daily life since you can unlock the door lock from 3 different places as you like.





Note: the function of the added card and delete keyfob (the added/delete keyfob can not unlock the door lock) ,the remote control not include,if you need,pls feel free contact us.

Added keyfobs

This card can authorize the ordinary RFID card to open the E-lock and the operations are shown as follow: Brushing the Added card on the camera-then brushing the ordinary RFID card- Brushing the Added card on the camera again at last. At this time, the ordinary RFID card can be used for opening the door lock.

Deleted keyfob

This card can be used for canceling the authorization of opening the door lock, and the operations are shown as follow: Brushing the deleted card on the camera-then brushing the ordinary RFID card on the camera- Brushing the deleted card on the camera again at last. At this time, the ordinary RFID card is not available to open the door lock.





Specifications of indoor monitor:

Screen: 7" TFT LCD (16:9 display)
Resolution: 960 * 480
Power supplied by: power adapter
Power adapter: input: AC 100-240V 50/60Hz output: DC 15V 2000mA
Adapter type: US EU AU UK plug
Adapter cable length: 1.45m
Consumption: working state: 8W, standby state: 0.5W
Call duration time: approx,120 seconds
Monitor duration time: approx,60 seconds
Material: plastic


Specifications of outdoor unit:

LED: 6 * infrared LED lights

Camera: 1/3 CMOS  1000 TV Line

Viewing angle: 92 degrees

Consumption: calling state: 12W, standby state: 0.1W

Valid distance (6 * 0.75mm² copper wires): 80m/ 262.4ft

Working temperature: -10 degrees centigrade to +50 degrees centigrade

Working humidity: ≤85%

Intput Voltage:12VDC

Input current: <60 mA

User Capacity: 500 User Card,  1 Password

Card Type: RFID compatible card

Frequency: 125Khz

Read range: 10-50mm

Wiring connections: Electric Lock, Exit Button





Application:

This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.



Packing list:

1 * Outdoor unit with rain shield with fingerprint access control
1 * Indoor Unit
1 * Power adapter (us/au/eu/uk plug)
1 * 6 pin cable (5m)
1 * 2 pin cable
1 * Mounting plate
1 * Bag of screws
1 * User manual
5 *125KHz RFID Cards

1*Remote Control

1 * User manual











Packaging Details
  • Unit Type: piece
  • Package Weight: 1.6kg (3.53lb.)
  • Package Size: 29cm x 19cm x 13cm (11.42in x 7.48in x 5.12in)
