Report item
Item specifics
  • Brand Name: SYSD
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: Metal ABS
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: 420TVLine
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 92
  • Display Screen Type: Color
  • Model Number: 816MA11
  • Camera: CMOS
  • Power: 110V-220V
Product Description

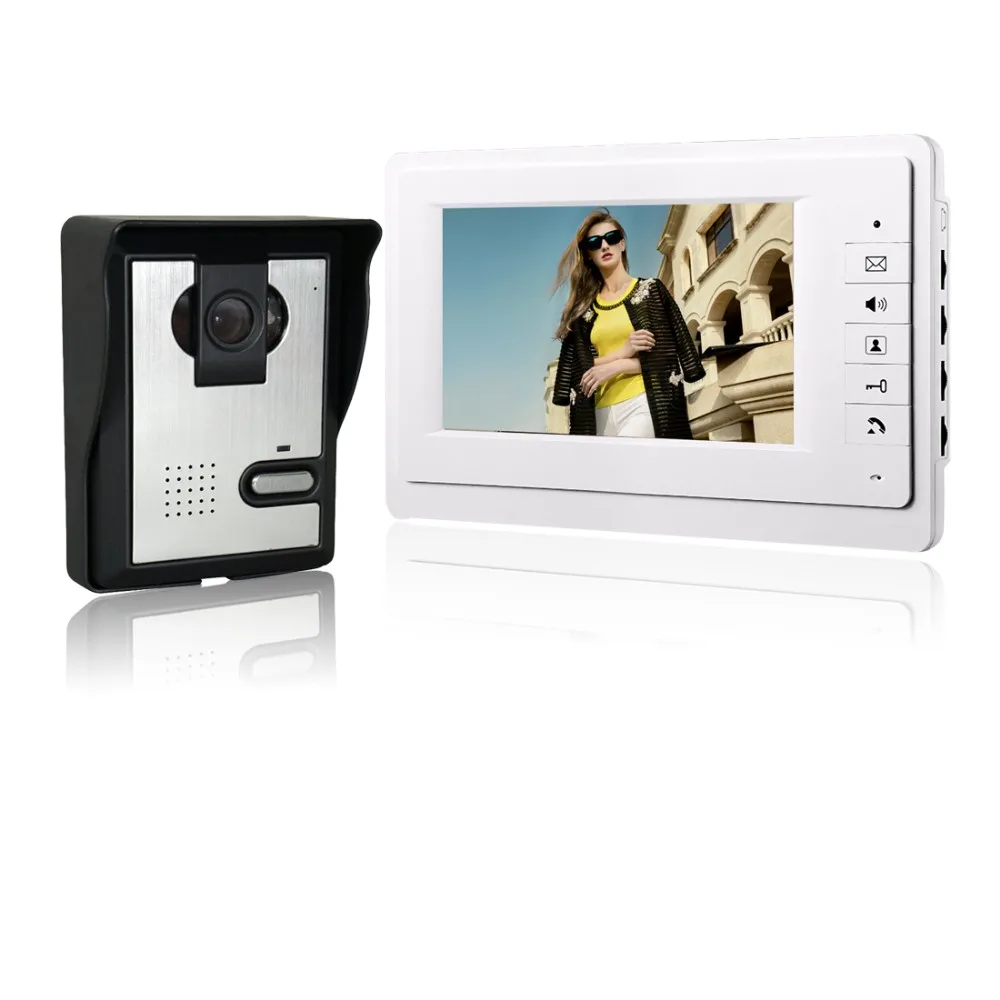

Fashionable and Luxury 7`` TFT Color Video door phone Intercom Doorbell HD Color doorphone monitor Speakerphone Intercom



Features:

Ultra-thin design indoor unit, fashionable and luxury.
7" TFT LCD screen with no radiation, low power consumption and high definition.
IR Camera with Night Vision.
Electric lock-control function.

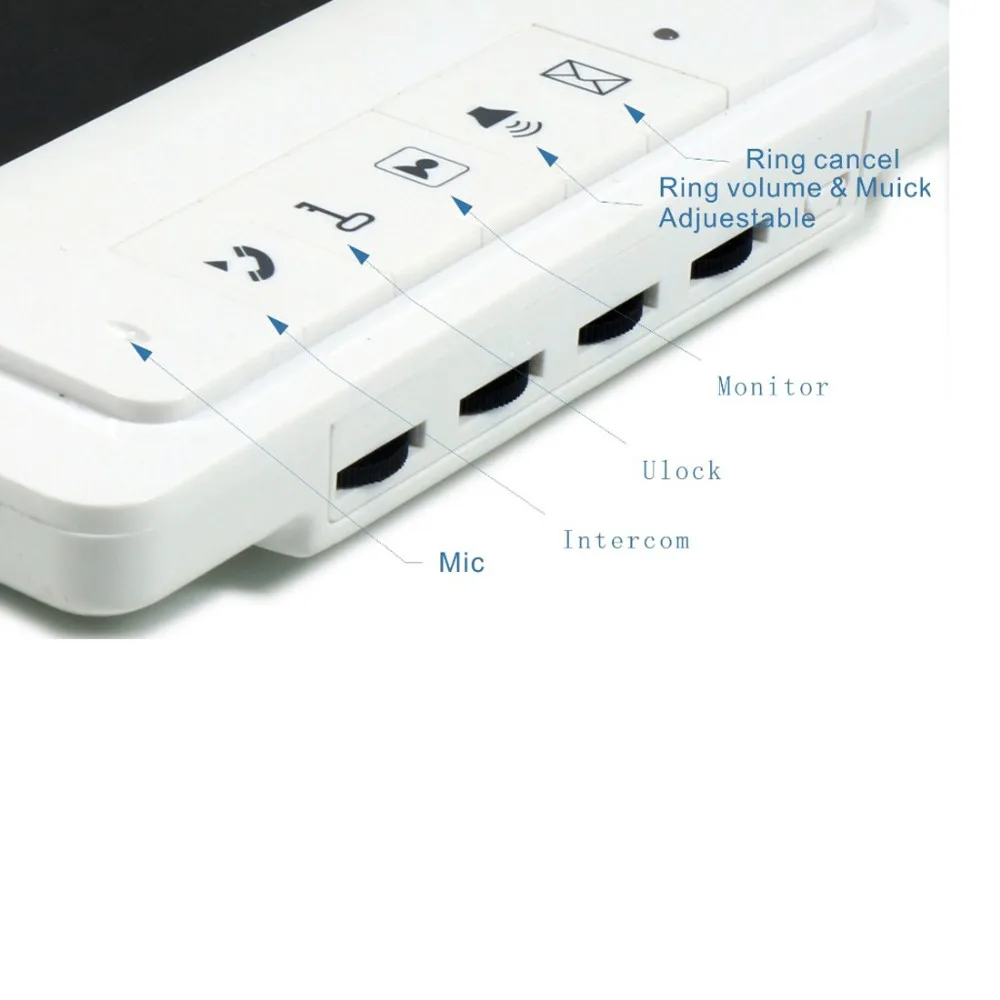

Hand-free intercom function.
Mute indoor intercom function.
Monitoring the outside of the door.
16 kinds of doorbell rings.

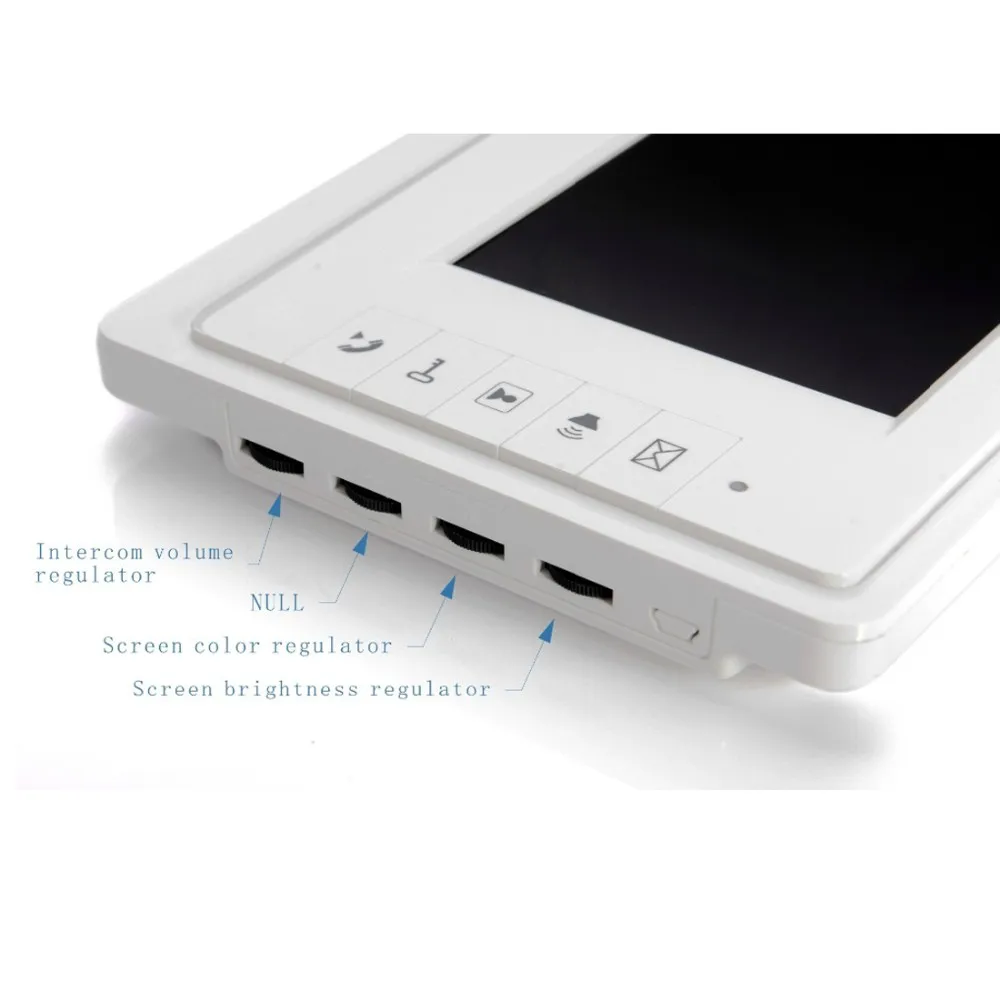

Volume, brightness and contrast adjustable.
The camera could be high definition
monitor, intercom, unlock, wireless control, code unlock., hand free, monitors talks to monitor
Suitable most of the electronics lock, with delay unlocks functions

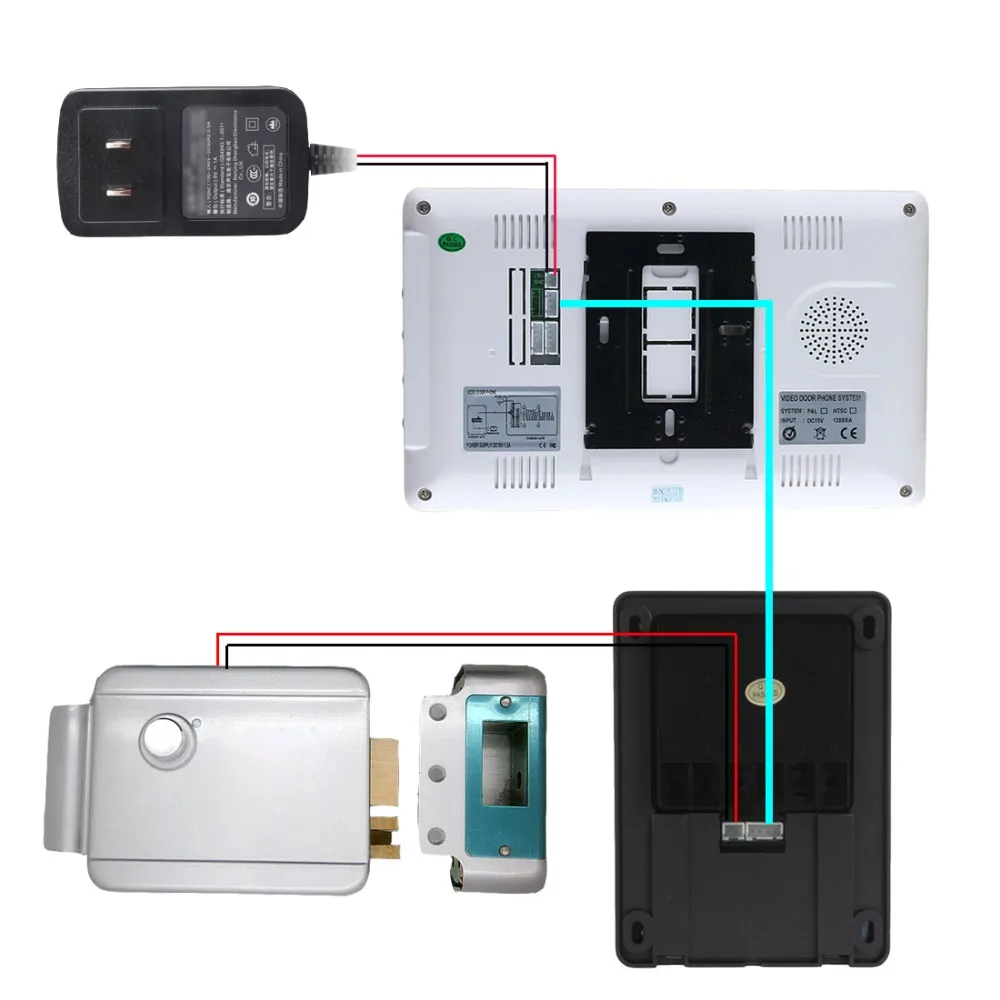

Easy installation by yourself with adapter and cable we provided in this kit.

Specifications:
Screen: 7" TFT
Resolution: 800 * 480
Camera: 1/4"HD color CMOS can reach 700 line
Camera lens: 3.6mm
Camera viewing angle: 92 degrees
Call duration time: 120 Seconds
Monitor duration time: 60 Seconds
Power consumption: Static state <0.5W, calling <10W
Power input: AC 100V-240V 50/60 Hz
Power output: DC15V

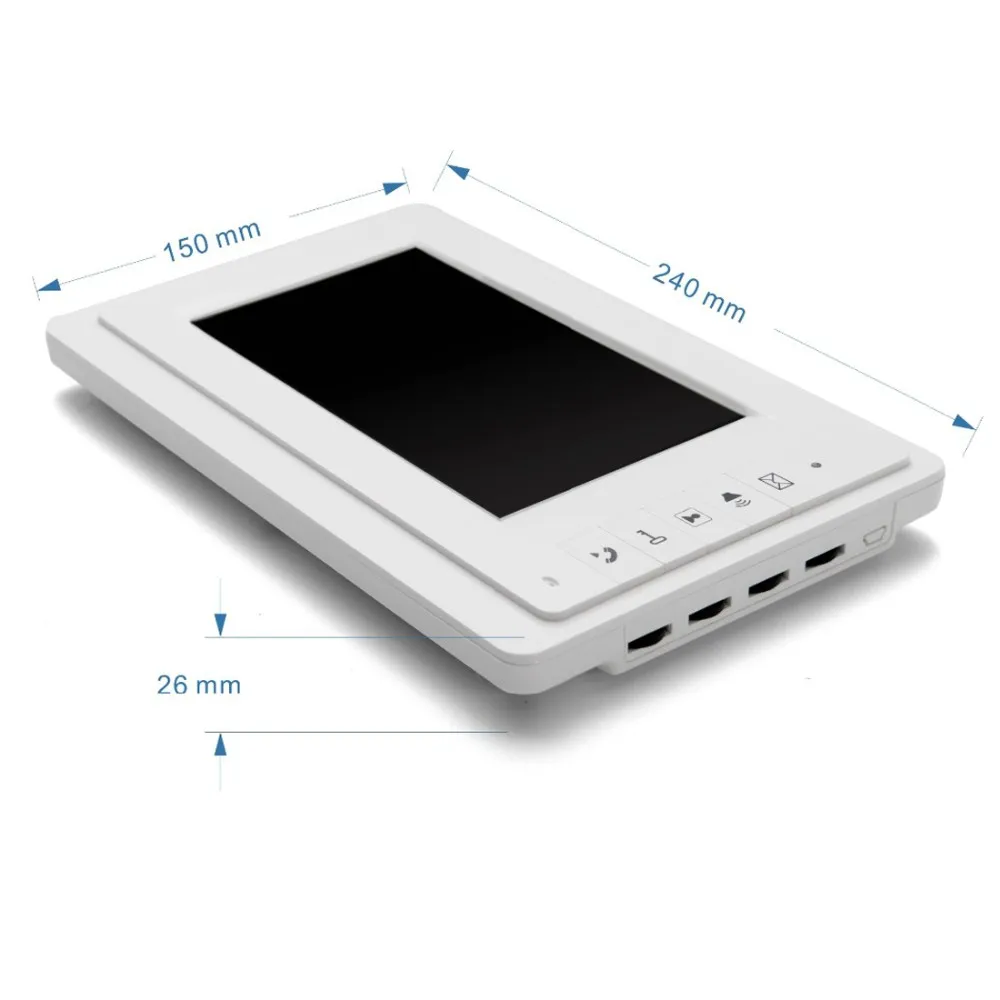

Indoor monitor: 240* 150 * 26mm

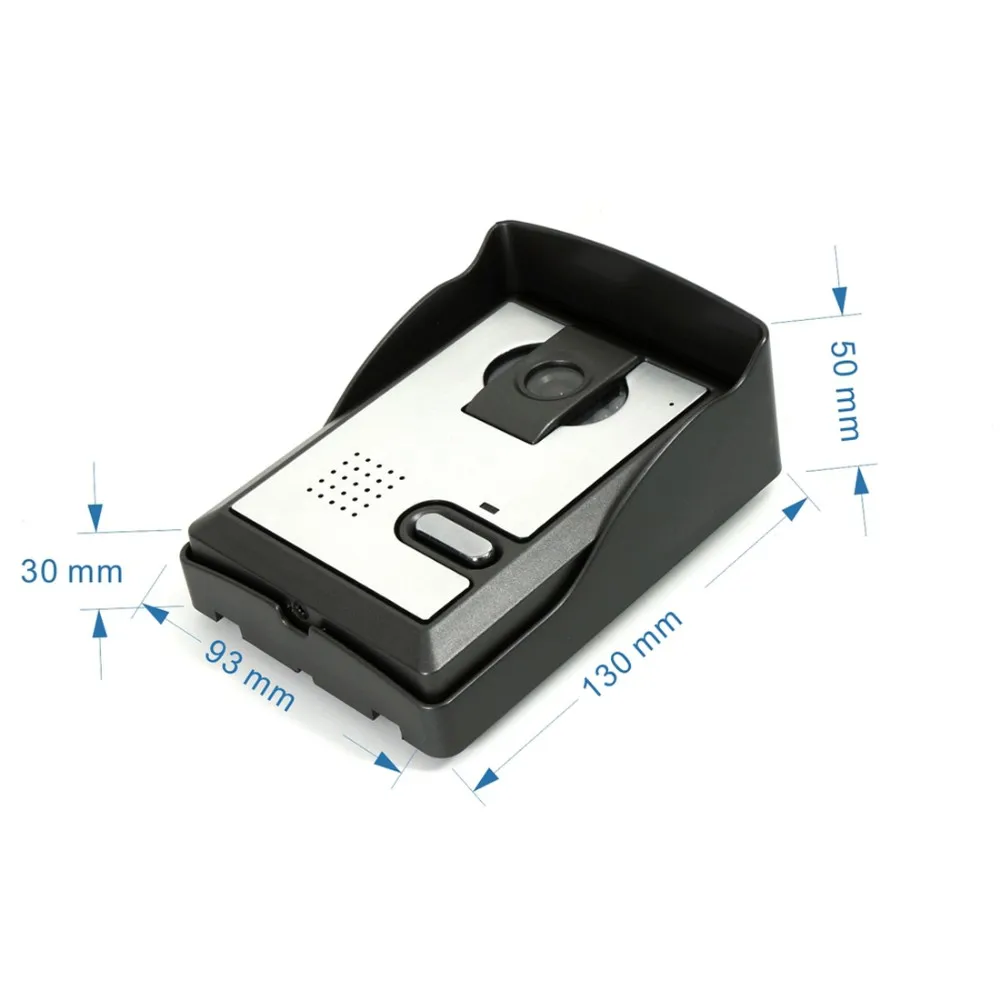

Outdoor camera: 130 * 93* 50mm
Package size:265 * 180 *105mm

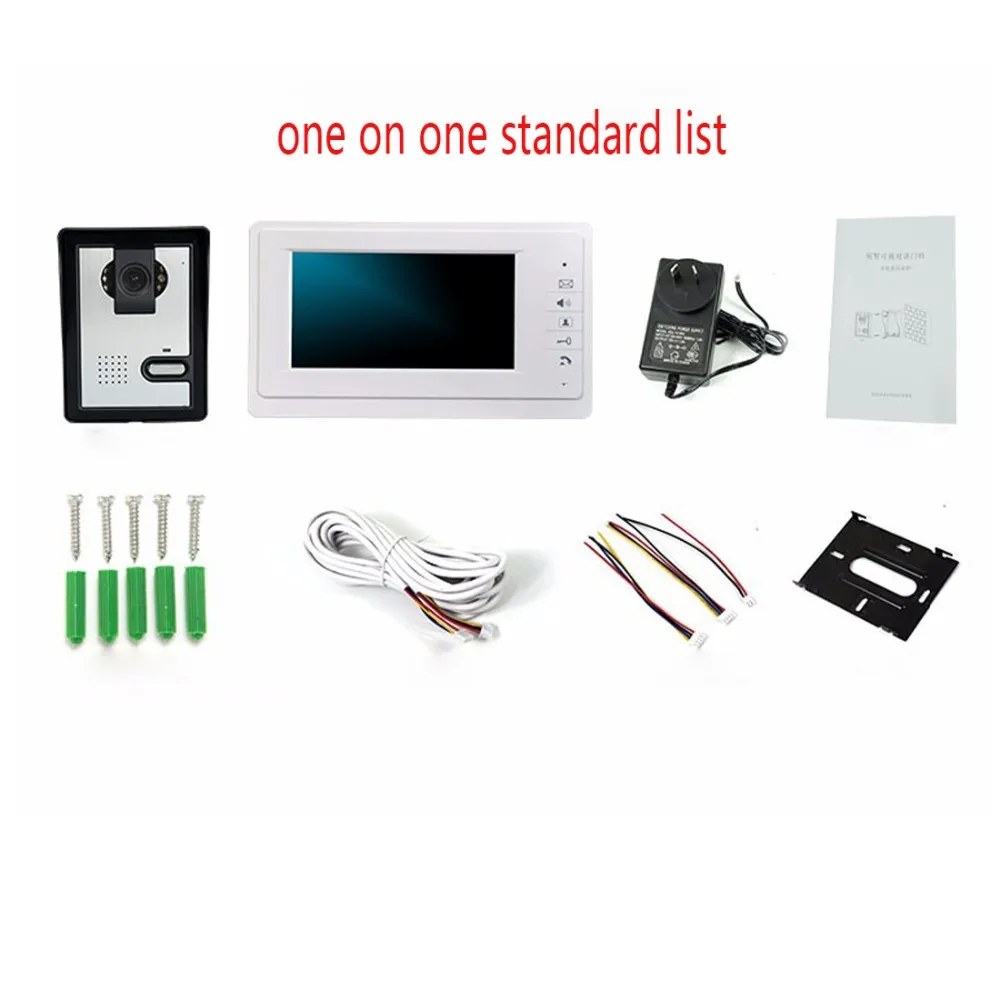

Package includes:
1 * Outdoor camera
1 * Indoor monitor
1 * AC adapter
1 * 5m 4-core Connection cable
1 * 2-core Connection cable
1 * Package of screws
1 * User manual – English

816MA



1

4

2

5

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.5kg (3.31lb.)
  • Package Size: 26cm x 18cm x 26cm (10.24in x 7.09in x 10.24in)
