Item specifics
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 90
  • Display Screen Type: Color Touch Screen
  • Doorbell: Yes
  • Power: 15VDC
  • Samrt Home Interface: No
  • Communication Interface: Wired
  • Access Control: Inductive Card
  • Kit Configuration: One to One video doorphone
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Material: Metal PMMA ABS
  • Installation: Wall Mounting
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Technology: Digital
  • Waterproof: Yes
  • Brand Name: Grenseure
  • Zone Input: None
  • Resolution: > 420 TV Line
  • Model Number: V7TID1V1 + Electric control lock
  • Power: 15VDC
  • Camera: 700TVL
  • Color: Black
  • E-LOCK: Electric control door lock
  • size: 7 inch
  • power adapter: EU AU US UK
  • type: video intercom / video doorphone
  • wiring type: wired
  • is_customized: Yes
Product Description

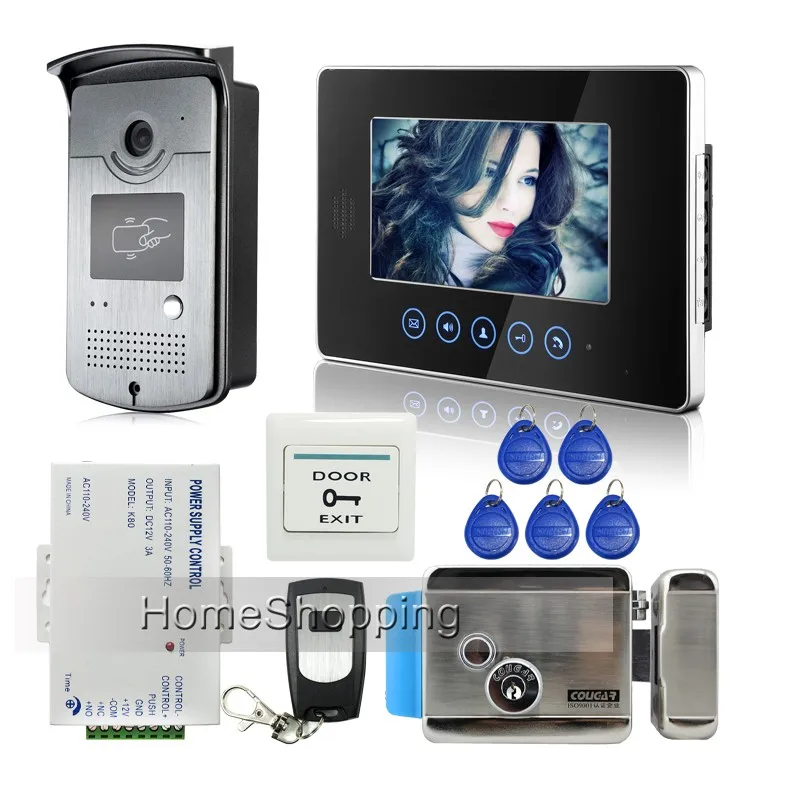

WIRED 7" TFT LCD HOME VIDEO INTERCOM RFID READER SYSTEM
700 TVL Camera, Clearer Video!
Unlock Via Remote control, ID keyfobs!

aeProduct.getSubject()



Functions of this product are reliable and convenient to use and install. Hence, this product is the ideal theft prevention equipment.It is widely used in single-family houses, villas, office and so on, meanwhile it also the ideal present giving to friends or relatives.In order to create more comfortable and securer living environment, please choose our visible intercom doorbell product to ensure your safety and comfort.It is a luxury household security product for one-family buildings or upscale villas.  It adopts advanced technology and the latest computer chips which highly improves the  stability and durability of the system.




Features

  • 7" TFT digital color LCD;
  • Touch sensor button on the panel
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function
  • Comes with 5 RFID keyfobs, a push release button switch.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • Max: 1camera+3 monitors; 2 cameras+2 monitors.



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.







aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()







aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()





Remote Control



aeProduct.getSubject()



Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.





  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()







Electric Control Lock

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.




aeProduct.getSubject()

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;

  • Working Voltage: 12VDC

  • Working Current: 0.2-0.45A

  • Weight: 1500g;

  • Dimension (Face Plate): 120mm x 105mm x 35mm

  • Center distance: 60mm

  • Door distance: 35-55mm





Application





aeProduct.getSubject()

Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m



Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 160(W) * 27(H)mm
Net Weight 510g
Outdoor Camera
Camera Lens 1/3" Sony CCD
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Alunimum panels, waterproof
Installation Wall mounting
Size 185(L) * 85(W) * 40(H)mm
Net Weight 540g





Package

NOTE: We have the user manual in English , French, Spanish and Russian language.
We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.

aeProduct.getSubject()

aeProduct.getSubject()
