Item specifics
  • Sensor Size(Inch): 1/3
  • Model Number: S801B-D6V-ID-lock
  • Communication Interface: Wired
  • Samrt Home Interface: No
  • Access Control: Inductive Card
  • Material: METAL ABS
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Brand Name: JERUAN
  • Zone Input: None
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Viewing Angle (°): 92
  • Power: 15V DC
  • Doorbell: Yes
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Resolution: 700TVline
  • Camera: color
  • Display Screen Size(inch): 8 inch
  • Power: 100V~240V
Product Description

8 inch video door phone doorbell intercom system video recording photo taking video doorphone speaker intercom



801-96-8

8inch color TFT LCD screen ,low power consumption without radiation ,real wide display wish high resolution.

Product Features:

1.8 inch color TFT digital LCD screen,low power consumption without rediation real widedisplay with high resolution
2.Hands-free talkhack funtion
3.Electronic control lock function
4.Outdoor monitioring function
5.Indoor mutual talkback funtion
6.Voiding disturbing during rest time function
7.Photo/Recording:
The unit is with build in 2M memory(can store 50pcs photos),also you can insert external memory card into the system for photo/recording,It will photo automatically and make a 15S video once the visitor pressing the outdoor camera call bottom.if the memory is full,The new file will overwrite the earlier file automatically(Note:the item should be installed with TF card in advance)8.Brighness,color and sound volume of indoor phone can be adjusted
9.Indoor phone has thin design,aluminum deck or top grad Acrylic panel electroplating buttoms;all of this makes its luxurious high-quality decorative style
10.There are 24 pieces beautiful chord music ringtone can be chosen
11.outdoor station is exquisite and durable;it has function of viewing at night by infrared.The embedded istalltion makes it nice and safe
12.The available distance is 200M to connect the connection wire;it will not affect the picture it shows and talkback
13.Complete accessories are attached.users can install the machine by themseves according to the“Operation instruction".they also enjoy the happiness which is from the installation
Indoor Unit Specification:



Picture format:JPG
Indoor unit installation method:wall-mounted or desktop scaffolding
Relative humidity:10% to 90%(KH)
Operating temperature:-20 to 60 degree
Effective distance:200M(4*0.75M*M
Monitor time delay:40S±10%
Talk time delay:120S±10%
Power adapter specifications:DC15V 1200mA
Stand by power consumption:1.1w
Overall power consumption:≤6W  400mA
sensitivity:56DB
Ringtone:chorded polyphonic ringtone
Brightness:250cd/
Visiua angle:up 50 degree,down 70 degree,left right 70 degree
Resolution digital:800(RGB)*600
Screen size:8inches 4:3display)
RAM:50 pictures
Outdoor Unit Specification:
Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution: 700  lines
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle:  92
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-20~+60 degree
Outdoor unit installation method: embedded or wall-mounted type
Waterproof level :IP55
Touch panle
Tamper alarm

in

12345801

out

D6-1 (1)D6-1 (2)D6-1 (3)D6-1 (4)D6-1 (5)D6-1 (6)D6-1 (7)

Electric Control Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

  • NO Mode - (Locked while power is off);
  • Material: Stainless Steel;
  • Authority Certification: CE & MA Approved
  • Application: wood/iron doors;
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 1500g;
  • Dimension (Face Plate): 120mm x 105mm x 35mm
  • Center distance: 60mm
  • Door distance: 35-55mm

HTB14XVdLFXXXXcoXXXXq6xXFXXX3

Power supply:



This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button


Remote Control:



If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

NOTE:The remote control without batteries


Wiring:



D6-1

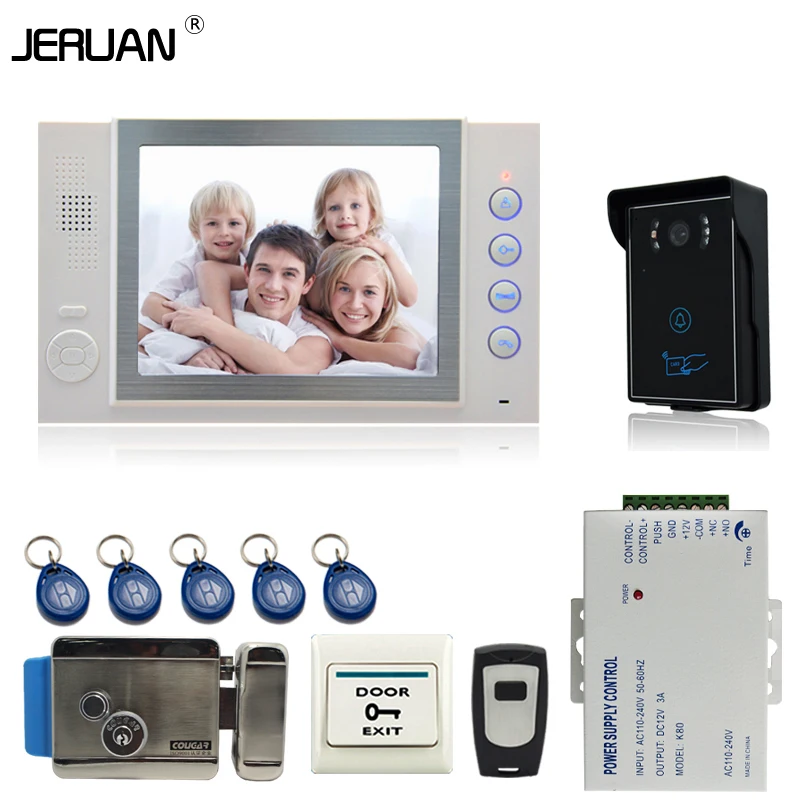

Package includes:

1 x Outdoor camera

1 x Indoor monitor

1 x 12V 3A power supply

1 x Remote control (NOTE:The remote control without batteries)

1 x power adapter (We will send AU/EU/US/UK type according to your address)

5 x RFID keyfobs (Please leave us message if you need more keyfobs)

1 x testing cable

1 x exit switch

1 x connetcors and screws for installation

1 x user manual

2x Management card (1pcs ADD,1pcs DELETE)

1 x Electric control door lock

1 x 8GB TF CARD
