Item specifics
  • Size: 30cm x 22cm x 15cm
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 100V-240V
  • Material: ABS
  • Zone Input: None
  • Power: 220v
  • Access Control: None
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 92
  • Display Screen Type: Color
  • Model Number: 714C9
  • Camera: other
  • Resolution: 600TVL line
Product Description
Features:
·         7" Full Color LCD Screen
·         Easy Intallation
·         CMOS Camera
·         Rain-proof Outdoor Unit
·         Automatic Stand by
·         24 door bell ring
Specification:
·         Power Supply: 15V/2A
·         Power Consumption: Stand by State=3W; Working State=12W
·         Display Screen: 7 inch Full Color LCD
·         Resolution:800 x 480
·         Brightness: 250cd
·         Doorbell Sound: 8 types (free to set)
·         Monitoring Timing: 1 minute
·         Working Temperature: -15 to 60 degreeHTB1K72XMpXXXXc4XVXXq6xXFXXX6



HTB1P5LpMpXXXXcWXpXXq6xXFXXXs
HTB1kF_iMpXXXXcbXFXXq6xXFXXX4

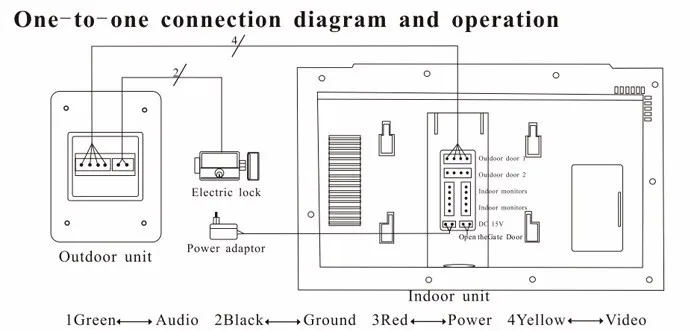

1.Connect the 4P cable with the outdoor camera,the other side to the indoor monitor 1 socket,
and then connect the 2P cable to the indoor monitor socket,at last plug the power in
2.When the visitor press the call button in the outdoor unit,the indoor unit rings and show the
vistor\'s image.when the house master press the talkback button,they can talk with each other.the
talk tiem and image delay is approximate 120 seconds.
3.When the unit is power on,you can press unlock button in the indoor unit to unlock the electronic
lock
4.When you press the monitor button in the indoor unit,you can monitor the outdoor suituation for
40 seconds each time
5.Press the monitor button and then the talk button and you can monitor the outside and talk with
the visitor.if you finish talking,you can press the talkback button to shutdown the indoor unit
6.The birghness.color.ringtone volume of the indoor can be adjustment by the rotary button or menu
to get the optimal effect
7.In the monitor situation,press the ringtone button and you can hear several ringtones,you can choose
the one you prefer and doing no more operation means set it successful.when the indoor unit is blakout.
all the ringtones will resume to the default setting





Packaging Details
  • Unit Type: piece
  • Package Weight: 1.35kg (2.98lb.)
  • Package Size: 30cm x 22cm x 15cm (11.81in x 8.66in x 5.91in)
