Item specifics
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 90
  • Doorbell: Yes
  • Power: 15V DC
  • Communication Interface: Wired
  • Access Control: Inductive Card
  • Kit Configuration: One to One video doorphone
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Installation: Wall Mounting
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Technology: Digital
  • Display Screen Type: Color
  • Waterproof: Yes
  • Samrt Home Interface: Yes
  • Material: Metal ABS PMMA
  • Model Number: V70F-ID-1V1 + 12V Power supply
  • Brand Name: Grenseure
  • Zone Input: None
  • Resolution: > 420 TV Line
  • Camera: 700TVL COLOR
  • Power: 110-240V AC
  • Color: White
  • Monitor amount: one
  • type: video intercom / video doorphone / door camera
  • wiring type: wired
  • room to room intercom: Yes
  • RFID access control: support
  • function: intercom / monitor / unlock
  • monitor size: 7 inch TFT Color monitor
  • waterproof: yes, suppports outside working
  • night vision: support
Product Description



WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM
700 TVL Camera, Clearer Video!
Unlock Via RFID keyfobs!



aeProduct.getSubject()

This full Hard-wired Video Door phone Intercom System consists of one 7\'\' color TFT monitor,  one door camera, 5 RFID keyfobs, a push release button,  and a power supply. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.






Features

  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Supports communication between two indoor monitors.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 rfid keyfobs.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()





Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()

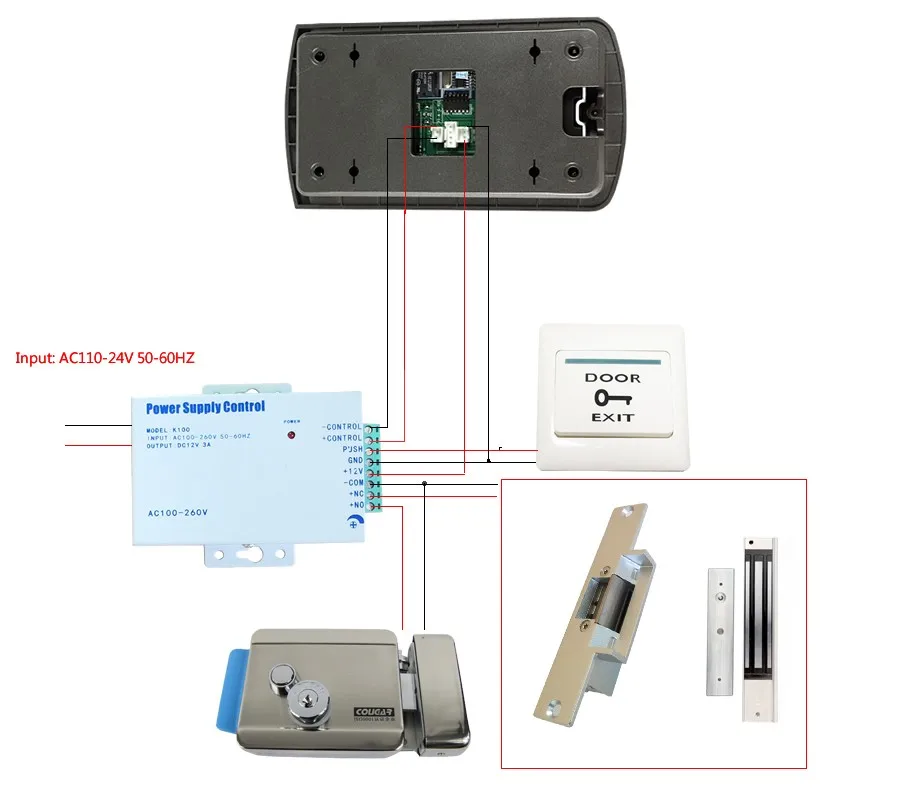

Application



aeProduct.getSubject()





Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m





Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 150(W) * 26(H)mm
Net Weight 500g
Outdoor Camera
Camera Lens CMOS
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Alunimum panels
Installation Wall mounting
Size 174(L) *96(W) * 36(H)mm
Net Weight 640g





Package

NOTE: We have the user manual in English , French, Spanish and Russian language.We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.
