Item specifics
  • Brand Name: JERUAN
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Analog
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: METAL ABS
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/3
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to Two video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color
  • Model Number: V70DB-B-ID-2
  • Camera: color
  • Power: 100V~240V
Product Description

7" Wired Home Security Video Intercom Door Phone RFID Keyfob Doorbell System

Unlock via RFID cards and unlock button

V70D-B-2









Description:

This Hardwired Video Door Phone Intercom System consists of one 7" ultrathin LCD monitor and one outdoor station. Upgraded chips are adopted for highly stable performance. With this special outdoor station, you can open the lock from unlock button on the monitor. You can also  monitor outside image even without people pressing the Monitor button on the Indoor unit. It is your perfect choice to use this system which can achieve monitoring, two way intercom and unlocking.  With the id reader camera. You can unlock via id card, remote control, exit button and unlock button on monitor.

Features:
  • With micro-processing technology, auto-remote control, excellent performance and high reliability.

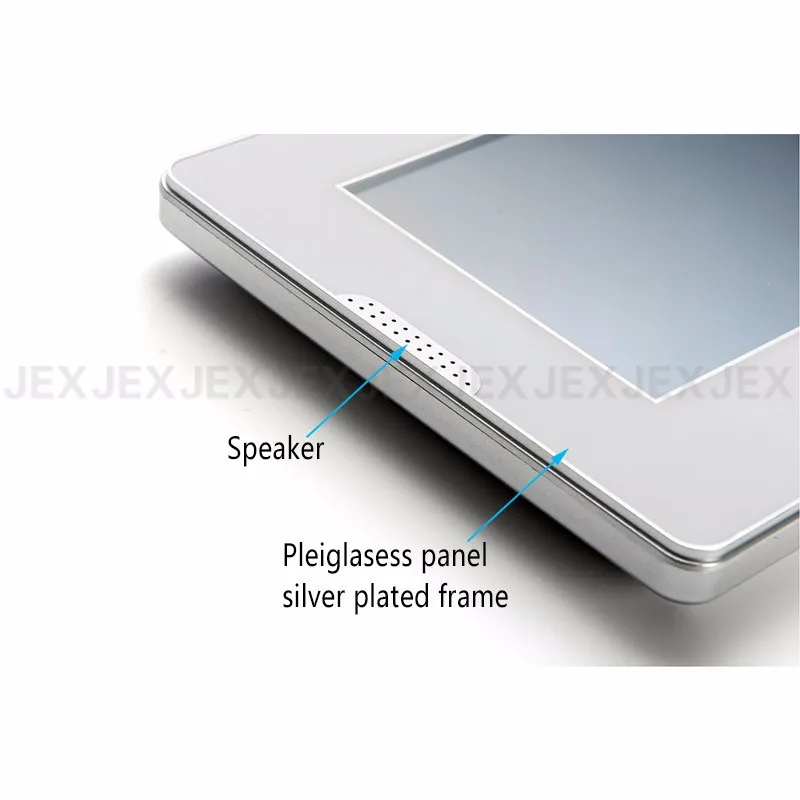

  • The TFT 7 inch digital color LCD for monitor.

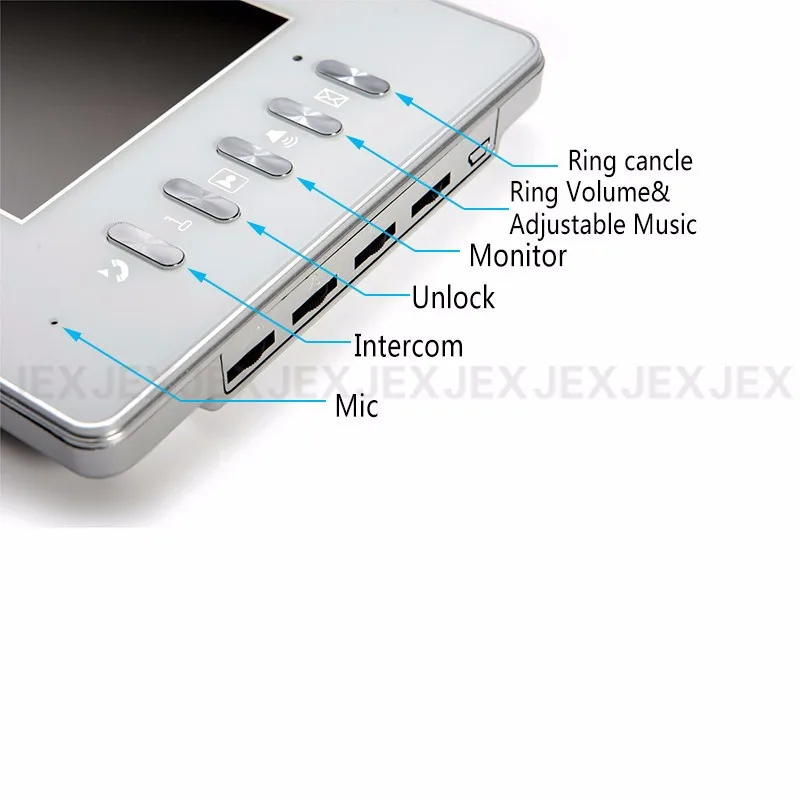

  • Monitor outside manually.

  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.

  • Additional monitor available up to 6(optional) and 3 outdoor cameras at most.(It needs a controller when install 2/3 outdoor cameras, please contact us if you want to install 2/3 cameras)

  • TFT color screen with low power consumption, no radiation and high definition.

  • Hands-free intercommunication.

  • Brightness, chroma and volume adjustable.

  • 16-chord melody rings for option.

  • 700TVL camera. Results in clearer video.

  • Do not disturb mode

V70D1_2 V70D1_3 V70D1_4 V70D1_8 V70D1_9 ID_3 ID_31 ID_61 ID_71
Wiring:
We recommend you to buy this 12V 3A power supply if you use strike lock, magnetic lock and drop bolt lock etc. Please check below link. The wiring diagram is for reference.
Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.




0.2mm2

0.5mm2

1.0mm2

Indoor to outdoor max distance

30m

50m

100m

Indoor to indoor max distance

20m

50m

100m

Outdoor to Electric lock max distance

2m

3m

5m

Specification


Indoor Monitor

Display

7” TFT(16:9 display)

Resolution

800 x 480

Charger

Adapter input voltage
AC100-240V 50Hz-60Hz

Adapter output

DC15V 1500mA

Material

Aluminum panel

Installation

Surface mounting

Power consumption

waiting-0.2W Working-0.8W

Ring the bell

16-chord

Dimensions

240 x 150 x 23mm (H x W x T )

Net Weight

0.7kg



Outdoor Camera

Power

input: AC 100-240V
50/60Hz
output: DC 15V/2A

Camera

SONY 700TVL

Powe consumpt ion

Standby:2W; unlock:12w

Valid distance

80m(6*0.65MM2)

Viewing angle

92 degrees

Working temperature

-10C~+50C

Installation

Wall mounted

Dimensions

174*96*36mm(L*W*H)





Package

1 x Outdoor camera
2 x Indoor monitor
2 x power adapter (We will send AU/EU/US/UK type according to your address)
5 x RFID keyfobs (Please leave us message if you need more keyfobs)
1 x testing cable
1 x exit switch
1 x connetcors and screws for installation
1 x user manual
