Item specifics
  • Type: Intercom System
  • Brand Name: Yobang Security
  • Size: 7inch
  • Model Number: 806MJW13
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 92
  • Connection Method: Wireless
  • Doorbell: Yes
  • Samrt Home Interface: No
  • Communication Interface: Wireless
  • Kit Configuration: One to Three video doorphone
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Installation: Wall Mounting
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Technology: Digital
  • Display Screen Type: Color
  • Waterproof: Yes
  • Power: 12V
  • Zone Input: None
  • Resolution: > 420 TV Line
  • Camera: color
  • Access Control: yes
Product Description

startaeProduct.getSubject()

 7" Color Hands Free Video Doorphone

Wireless video door phone

New touch keypad with 0.3 Mega pixel IR Camera

002





>>>introduction:



(1)2.4GHz launch frequency, Approx 300meters barrier free remote
control distance;
(2) With micro-processing technology, auto-remote control, excellent
performance and high reliability;
(3) 7" TFT color display;
(4) 0.3Mega pixel camera;
(5) Clear night-viewing; 24hours monitoring, calling, speaking and
unlocking remote controlling etc;
(6) One monitor for up to four cameras;
(7) Time shown on the indoor monitor;
(8) Rechargeable lithium battery through mini use charger;
(9) Monitor can take/ save/ view more than 100photos automatically;
(10) Build-in chord melodies;


aeProduct.getSubject()

>>>Feature:

• 7”color TFT LCD with sensitivity touch panel. No radiation, low power consumption
• Infared 6 LEDs for night vision with clear image
• Rainproof cover design, antioxidative and aluminium alloy Outdoor Unit
• 16 kinds of rings for selection
• The camera could be high definition
• Monitor the view out of the door
• The Volume, brightness and contrast can be adjusted
• Piano bakes lacquer panel design on indoor unit, more fashionable and luxury
• Hands free intercom, one-button touch makes perfect experience
005007

>>>Specification:

Indoor Monitor:
Power input: AC 100-240V 50/60Hz(4line)
output: DC 15V/2A
screen: 7” TFT 960×480
Valid area: 154.08(H) ×86.58(V)
Power consumption: Standby:2W; unlock: 12w
Talk time: 120s±10%
Monitor time: 60s±10%
Working Temperature: -10 C ~ +50 oC
Installation: Wall mounted
Size: 228×130×25mm (L*W*H)

aeProduct.getSubject()

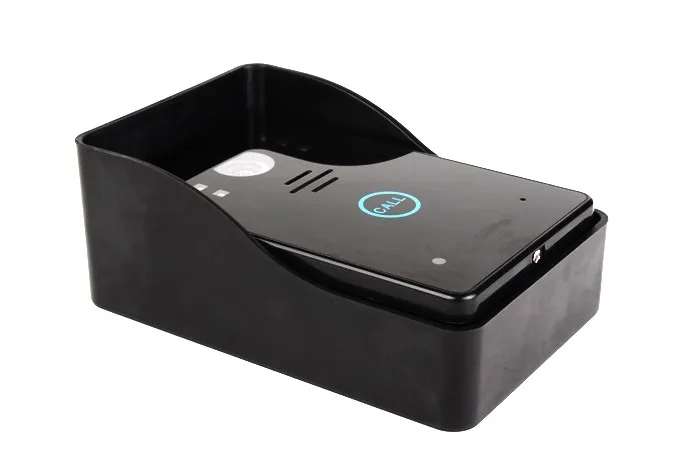

Outdoor Camera:

Working rate: 2402~2483.5MHz
Transmitting power: 16~20dBM
Camera: 1/4" CMOS 1030
Working current: 300mA
Standby current: 20~30mA
Battery: Rechargeable lithium battery
Battery capacity: 1400mAh
Standby time: 2 months
Adapter input: AC100~240V, 50/60Hz
Adapter output: DC 5V/1.0A

201302210330019_6


>>>Package contents:

1 * Outdoor unit +3* Indoor Units (Monitor)+ Power adapters+ lithium batteries+screws+ User manual


aeProduct.getSubject()

806mj122-2



aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

201302210330019_5201302210330019_6201302210330019_7201302210330019_8



Packaging Details
  • Unit Type: piece
  • Package Weight: 4.0kg (8.82lb.)
  • Package Size: 25cm x 20cm x 15cm (9.84in x 7.87in x 5.91in)
