Item specifics
  • Brand Name: Grenseure
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: Metal ABS PMMA
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 90
  • Display Screen Type: Color Touch Screen
  • Model Number: XSL-V70TN-ID-1V1 + power supply controller
  • Camera: 700TVL color in daylight and B/W in night vision
  • Power: 110-240V AC
  • monitor size: 7" TFT LCD monitor
  • type: video intercom / video door phone / door bell intercom
  • wiring type: wired
  • Color: white monitor
  • remote control unlock: Yes
  • RFID access control: yes
  • Material of outdoor uni: metal
  • Room to Room intercom: support
  • touch sensor button: support
  • 12V DC 3A power supply controller: 110-240V AC input
Product Description

WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!
aeProduct.getSubject()



Description

This full Hard-wired Video Door phone Intercom System consists of one 7\'\' color TFT monitor,  one door camera, 5 RFID keyfobs, remote controller and power supply controller. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.

With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.






Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.

  • The TFT 7 inch digital color LCD for monitor.

  • Clear night-viewing , 24 hours monitoring, calling, speaking and unlocking remote controlling etc.

  • Additional monitor available up to 6(optional) and 3 outdoor cameras at most.

  • TFT color screen with low power consumption, no radiation and high definition.

  • Hands-free intercommunication.

  • Comes with 5 RFID keyfobs, a push release button switch.

  • Support maximum 500 id keyfobs or cards.

  • Room to room intercom

  • Brightness, chroma and volume adjustable.

  • 25-chord melody rings for option.

  • Cabling: 4-core connection cable

  • 700 TVL HD Camera

Function

Powerful function

Monitoring, intercom, unlocking, dual communication, night vision, auto display ,auto turn off, 16 chord melody ring for choice.

High-definition picture

The high resolution camera and TFT LCD screen, 7 inch 800X480, make the image vivid and clear.

Easy to install and use

Plug-in-out installation, easy to install, use and maintain.

Multi-style system

The system can be installed through various ways of connection such as one camera to one monitor, two to one…max 3 outdoor units to 6 indoor monitors. It can satisfy all kinds of villa. It needs multi-door controller when install 2/3 outdoor unit.

Night Vision

Infrared LEDs on the camera allow you to see the visitor clearly at night before you open the door.

Room to Room intercom

Besides support intercom between monitor and camera, It also supports communication between the monitors.

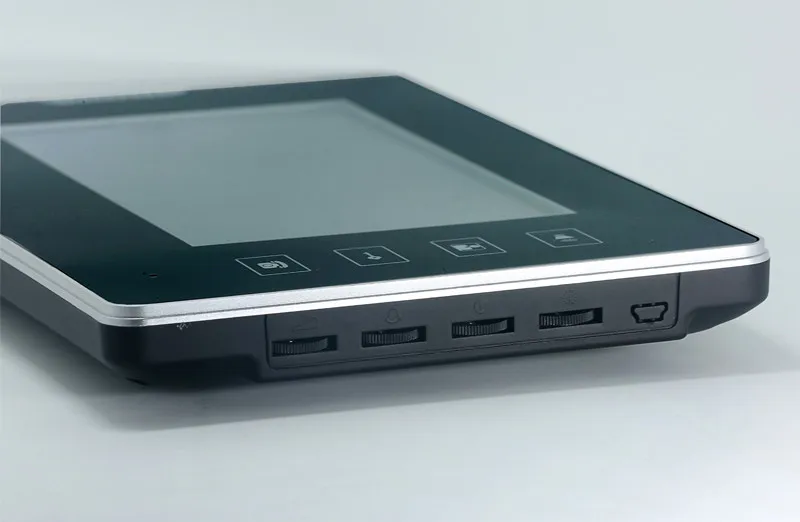

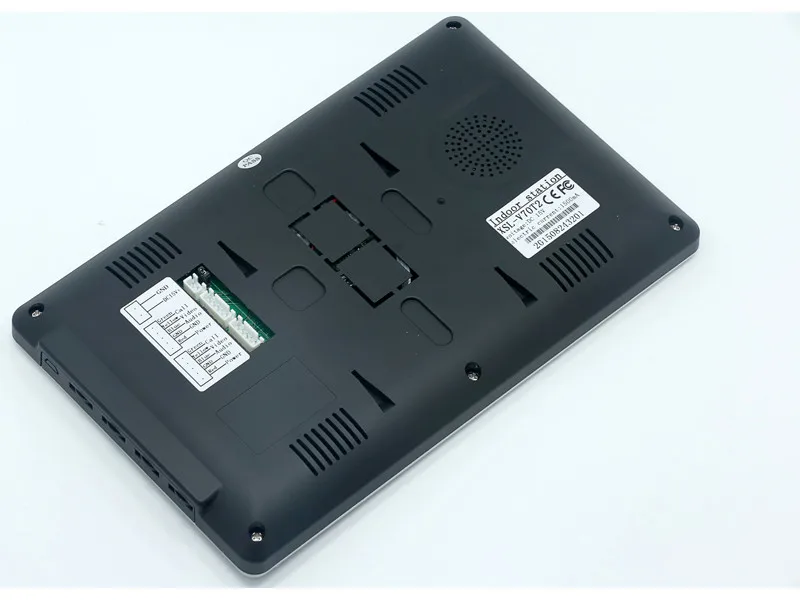

Details


aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()
aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()

Remote Control



aeProduct.getSubject()



Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()

Wiring


aeProduct.getSubject()



Note:

  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m




Specification

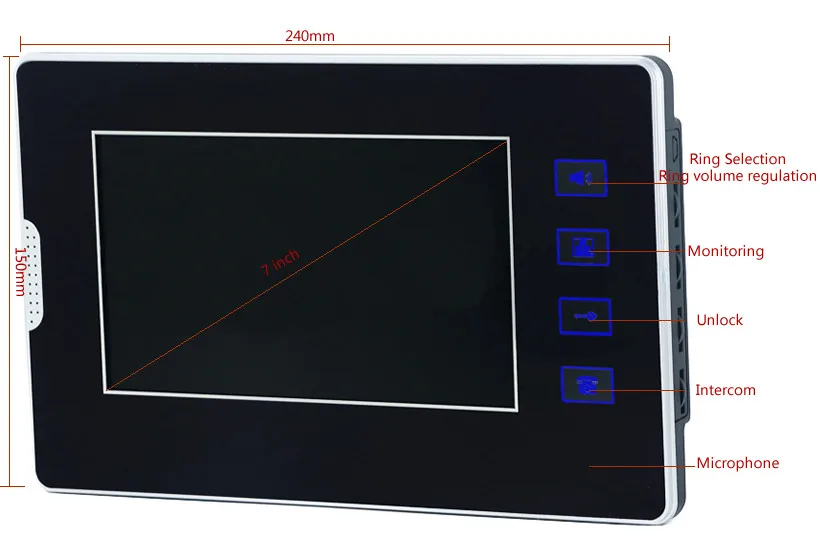

Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 150(W) * 27(H)mm
Net Weight 600g
Outdoor Camera
Camera Lens CMOS (Color in day vision, and B/W in night vision)
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Alunimum panels
Installation Wall mounting/Buried wall installation
Size 174(L) *96(W) * 36(H)mm
Net Weight 640g
