Report item
Item specifics
  • Camera Sensor type: CMOS
  • Power: 12V DC
  • Model Number: ML-WIFI02 + Electric strike door lock
  • Viewing Angle (°): 90
  • Display Screen Type: Color Touch Screen
  • Connection Method: Wireless
  • Doorbell: Yes
  • Communication Interface: Wired
  • Access Control: Password
  • Kit Configuration: One to One video doorphone
  • Sensor Size(Inch): 1/4
  • Type: Entrance Machine
  • Installation: Wall Mounting
  • IP Camera Interface: No
  • Waterproof: Yes
  • Samrt Home Interface: Yes
  • Material: ABS
  • Brand Name: Grenseure
  • Resolution: > 420 TV Line
  • Answering Mode: Telephone
  • Display Screen Size(inch): phone / pad
  • Camera: color in daylight and B/W in night vision
  • Zone Input: Max support 99 groups 433MHZ learning code wireless alarm input .
  • Power: 110v -240V
  • Technology: wifi
  • Wiring type: wireless WIFI
  • supported OS: IOS Android
  • wifi: support
  • e-lock: electric strike door lock
  • record video: support
  • type: wifi wireless doorbell / video intercom
  • function: intercom / monitor / unlock / record / network
  • waterproof: support
  • night vision: support
  • code / keypad unlock: support
Product Description

aeProduct.getSubject()



Description

This WIFI/IP video intercom doorbell uses H.264 image compression.This product is easy and safe to operate. It is applicable under both LAN and 3G/4G network. Unlock is safer with its sole ID number as factory unlock password. Restoring factory setting is not necessary if mobile phone is lost; just make missing devices disconnected by changing admin password.  All events that happen can be recorded. Moreover, this item has video message function and all important information will not be missed. Outdoor unit\'s videos can be remotely downloaded by mobile devices; removing TF card and downloading from other terminals are not necessary. 120° wide view angle camera with real time motion detection function. You can control your door at any place and in any time.

The smart video doorbell that lets you answer the door from your smartphone, allows you to see, hear and talk to your visitor from an iOS or Android mobile device with Wi-Fi or 3G/4G coverage.– anywhere in the world!

Features

  • WiFi doorbell support PIR and motion detection alarm,with IR night vision,12V power supply.
  • 2.4G Wifi,real time viewing,max to support 100M broadband,support Android and IOS operation system.
  • With CE, FCC and ROHS certificate.
  • With touch code panel;
  • With rain-proof cover,
  • With unlock function(suitable DC 12V often open/often atresia lock),can connect to access control power supply.
  • One doorbell can support multi mobile devices (Android 6, and IOS 4).
  • One mobile device can support multi WiFi doorbells.
  • With intercom function,voice loudly .
  • Support motion detect alarm
  • With IR night vision.
  • Support monitor function through mobile device.
  • Support take photo and video recording
  • Can open the door via code.
  • Support remote monitor, remote ulnock, remote alarm, remote intercom, remote recording by phone.
  • Support to connect 433MHZ Door Sensor, PIR, Smoke Sensor etc
  • All activities (including visit info, tamper alarm, motion detection, visitor, message and unlock) can be viewed by APP devices.
  • Max support 99 groups 433MHZ learning code wireless alarm input.





APP Introduction

a.   For Android users, please log in Google Play, download and install APP (name: idoorphone); or scan QR code on color box and download APP.
b.   For iPhone users, please log in APP Store, search "idoorphone", download and install APP; or scan QR code on color box and download APP.



Details

APP Remote Control

Support remote monitor, remote ulnock, remote alarm, remote intercom, remote recording by phone. All activities (including visit info, tamper alarm, motion detection, visitor, message and unlock) can be viewed by APP devices. Outdoor unit\'s videos can be viewed and downloaded. Everything at door can be monitored at any place and in any time.



aeProduct.getSubject()aeProduct.getSubject()

Easy Installation

Pairing: Mobile device auto searches and matches outdoor unit; manual ID and password input is not necessary. Operation is easy and quick.

aeProduct.getSubject()

Code Unlock

On door bell, enter unlock password by keypad and confirm with "#" key; APP wil have "lock opened" push notification. If input password is wrong, doorbell tips "password incorrect". In case of continuous wrong password input by 3 times, APP has "illegal unlock" push notification. In case of continuously inputting wrong password 5 times, unlock by outdoor unit is disabled in 10 minutes. "unlock" and "illegal unlock" images can be viewed in activity list. SAFE UNLOCKING!



aeProduct.getSubject()

Night Vision

The outdoor unit has 6 IR LED, to make sure ot have better night vision!

aeProduct.getSubject()

720P HD Camera

The camera is 720P HD image. Duplex intercom is used. Without manual setting, network rate is timely monitored to achieve fluent and simple intercom

aeProduct.getSubject()

Support TF card

All events that happen can be recorded. Moreover, this item has video message function and all important information will not be missed. Outdoor unit\'s videos can be remotely downloaded by mobile devices; removing TF card and downloading
from other terminals are not necessary.   The outdoor units supports maximum 32G TF card, and there is a 8G SD card comes with this kit.

aeProduct.getSubject()

433 MHZ

This items supports to add 433MHZ products.

aeProduct.getSubject()







Products

aeProduct.getSubject()


Electric Strike Lock







This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.



  • NC Mode - (Locked while supplied with power) Unlock Safe Mode.
  • If you need NO mode, please contact us before bidding.
  • Made of Stainless Steel
  • Performance Testing: 1000000 times aging test
  • Opening Mode: 90 degree swinging door
  • Authority Certification: CE & MA Approve
  • Application: wood door
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 400g
  • Dimension (Face Plate): 150mmx39.5mmx 28mm
  • Pack includes: One electric strike lock
aeProduct.getSubject()



Remote Control

when you want to go out, you just need to click this Remote control, then you can go out:



aeProduct.getSubject()

Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()

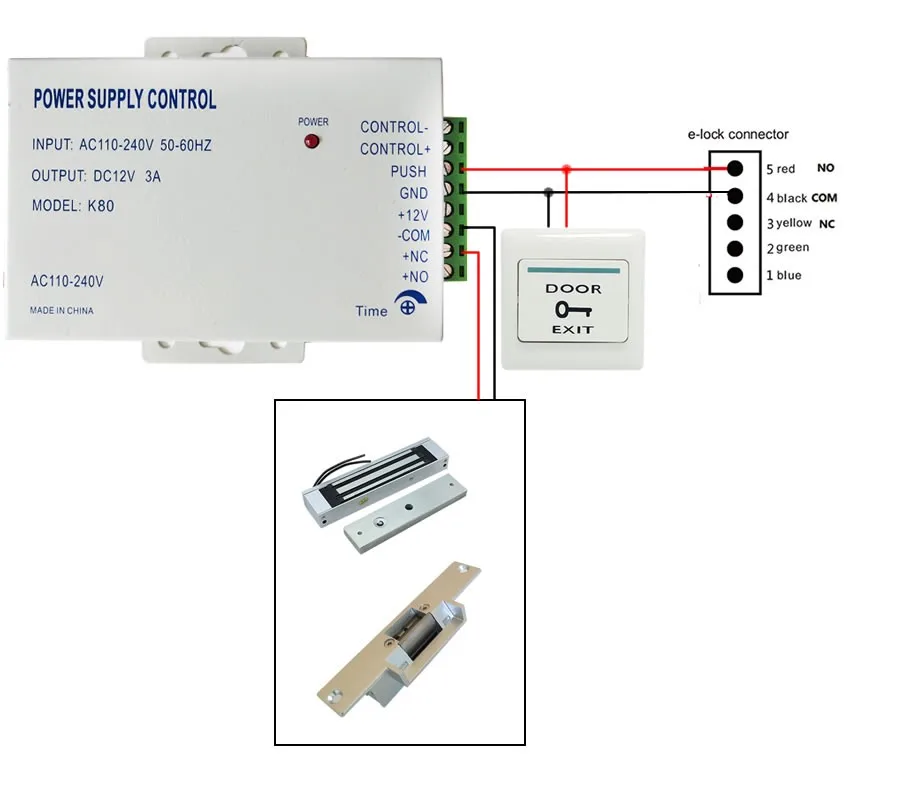

Lock Wiring







aeProduct.getSubject()


Specification

System CPU DSP
Priority PnP: Plug & Play, Full Wi-Fi Setting
Mobile View Mobile Software iOS, Android
User Administrator & 4 Users
Video Compression Format M-JPEG
Sensor 1/3 CMOS
Horizontal resolution 720P
Frame rate 1-30fps
Resolution VGA(640*480), QVGA(320*240)
Lens 3.6mm
Night Vision Night vision 6pcs LED Lights, IR 3m
Audio Compression Format ADPCM
Processor 2-way audio
Network Wireless WIFI, 802.11 b/g/n
Others Waterproof IP55
Power DC12V 1A
Temperature -20~55 °C
Humidity 10-95% RH
Size Packaging size: 182 x 163 x 75mm (L×W×H)
Weight N.W: 300g   G.W.: 580g (Note: for real products )
Accessories Power adaptor, CD, manual, warranty card, bracket, screws
Alarm Motion detection Support Motion detection
Action Calling to Mobile
Certification Certificate ISO FCC CE RoHS
