Report item
Item specifics
  • Sensor Size(Inch): 1/3
  • Communication Interface: Wired
  • Samrt Home Interface: No
  • Access Control: Inductive Card
  • Display Screen Size(inch): 7
  • Material: METAL ABS
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Brand Name: JERUAN
  • Model Number: 720W-C2V-P-2-lock
  • Zone Input: None
  • Kit Configuration: One to Two video doorphone
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Viewing Angle (°): 92
  • Power: 15V DC
  • Doorbell: Yes
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Resolution: > 420 TV Line
  • Camera: color
  • Power: 100V~240V
Product Description

7" Wired Home Security Video Intercom Door Phone RFID Keyfob Doorbell System

Unlock via RFID cards, Remote control and unlock button

720W-C2V-P-2-LOCK









Description:

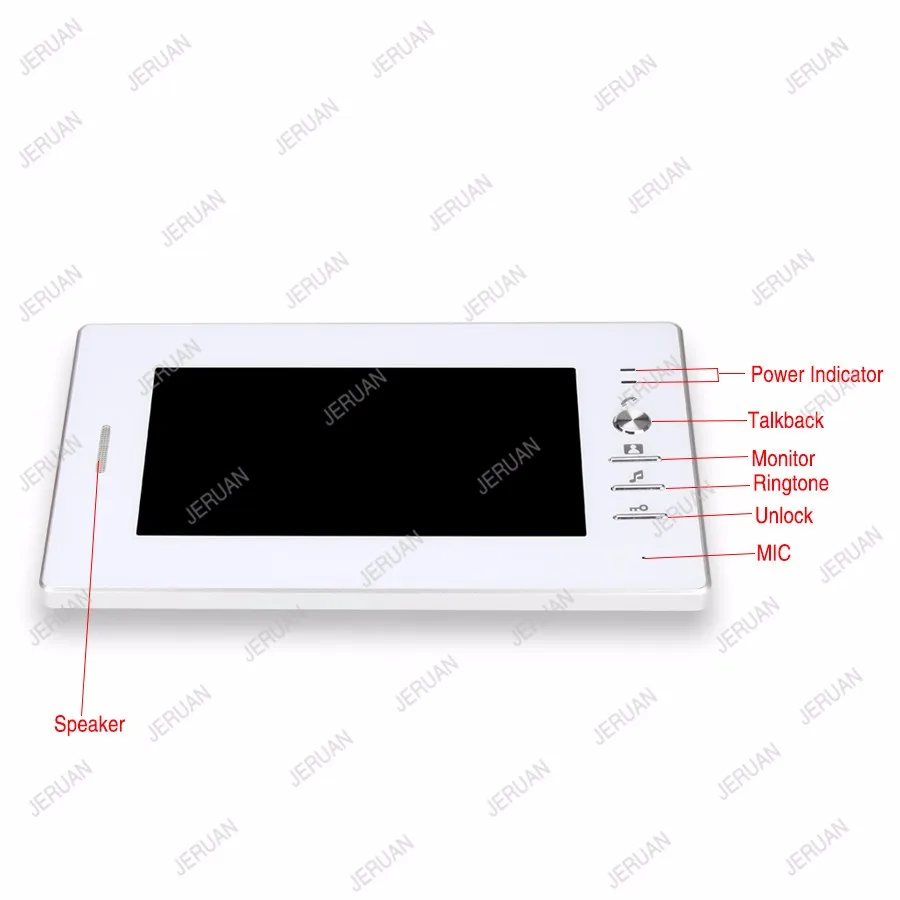

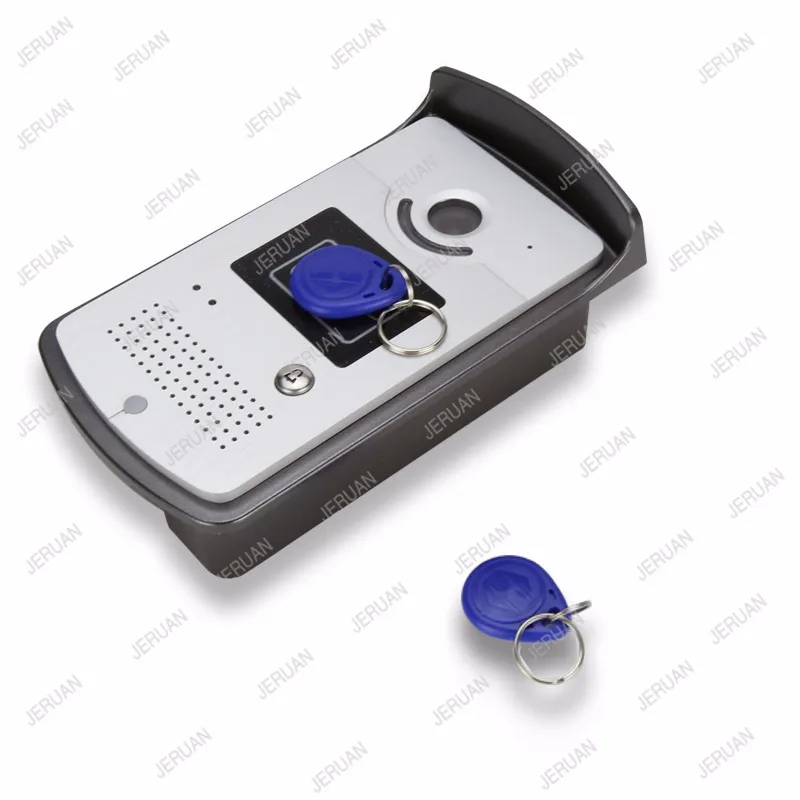

This Hardwired Video Door Phone Intercom System consists of one 7" ultrathin LCD monitor and one outdoor station. Upgraded chips are adopted for highly stable performance. With this special outdoor station, you can open the lock from unlock button on the monitor. You can also  monitor outside image even without people pressing the Monitor button on the Indoor unit. It is your perfect choice to use this system which can achieve monitoring, two way intercom and unlocking.  With the id reader camera.   You can unlock via id card, remote control, exit button and unlock button on monitor.
It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors.

Features:
  • With micro-processing technology, auto-remote control, excellent performance and high reliability.

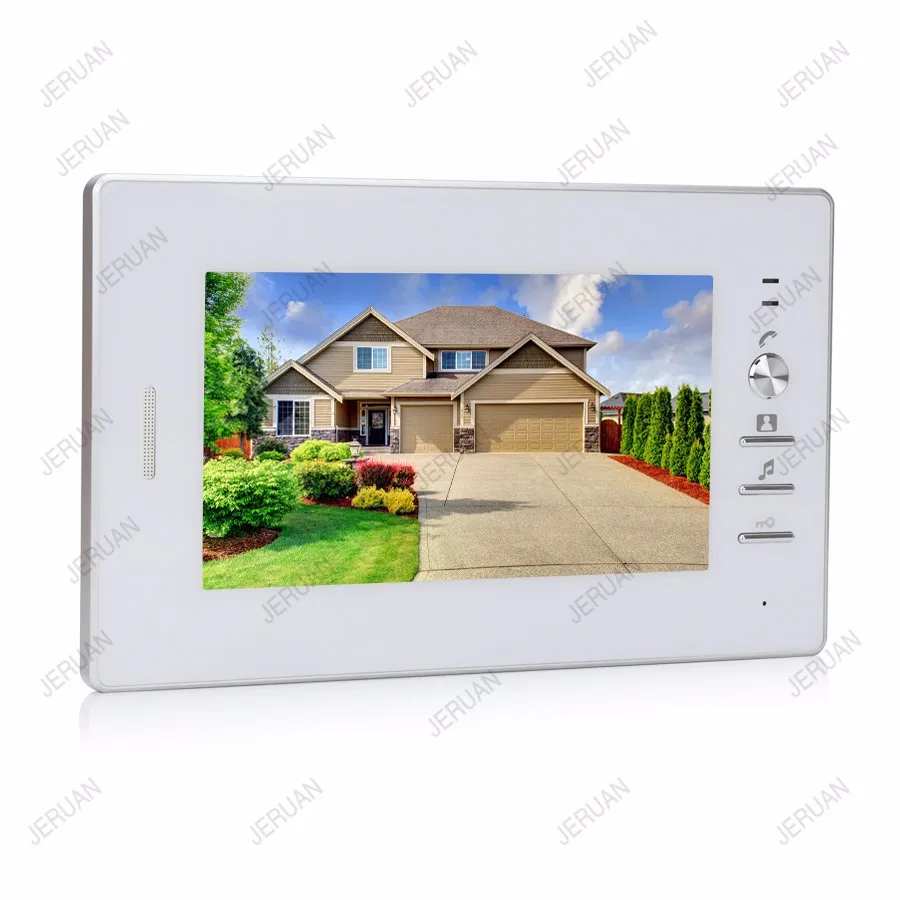

  • The TFT 7 inch digital color LCD for monitor.

  • Monitor outside manually.

  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking.

  • Additional monitor available up to 4(optional) and 1 outdoor cameras at most.

  • TFT color screen with low power consumption, no radiation and high definition.

  • Hands-free intercommunication.

  • Brightness, chroma and volume adjustable.

  • 16-chord melody rings for option.

  • 700TVL 1/3" Sony COMS camera. Results in clearer video.

  • Do not disturb mode



720-W-1 720-W-2 720-W-3ls 720-W-4 720-W-5 C2V-1 C2V-2 C2V-3 C2V-4 C2V-5 C2V-6

Electric Control Lock:

This is a 12V Electric Lock Rim lock, unlock electronically or by hand, flexible switch, low electricity consumption. This Door Locks fit for different kinds of doors. When bolt extends out, the door can be locked normally.

·                     NO Mode - (Locked while power is off);

·                     Material: Stainless Steel;

·                     Authority Certification: CE & MA Approved

·                     Application: wood/iron doors;

·                     Working Voltage: 12VDC

·                     Working Current: 0.2-0.45A

·                     Weight: 1500g;

·                     Dimension (Face Plate): 120mm x 105mm x 35mm

·                     Center distance: 60mm

·                     Door distance: 35-55mm



HTB1l_I_JpXXXXa0aXXXq6xXFXXXO





Power supply:

This is a 110V-240V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.

  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button

Remote Control:

If you purchase this video intercom system now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:
NOTE:The remote control without batteries

Wiring




Note:
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.




0.2mm2

0.5mm2

1.0mm2

Indoor to outdoor max distance

30m

50m

100m

Indoor to indoor max distance

20m

50m

100m

Outdoor to Electric lock max distance

2m

3m

5m

Specification

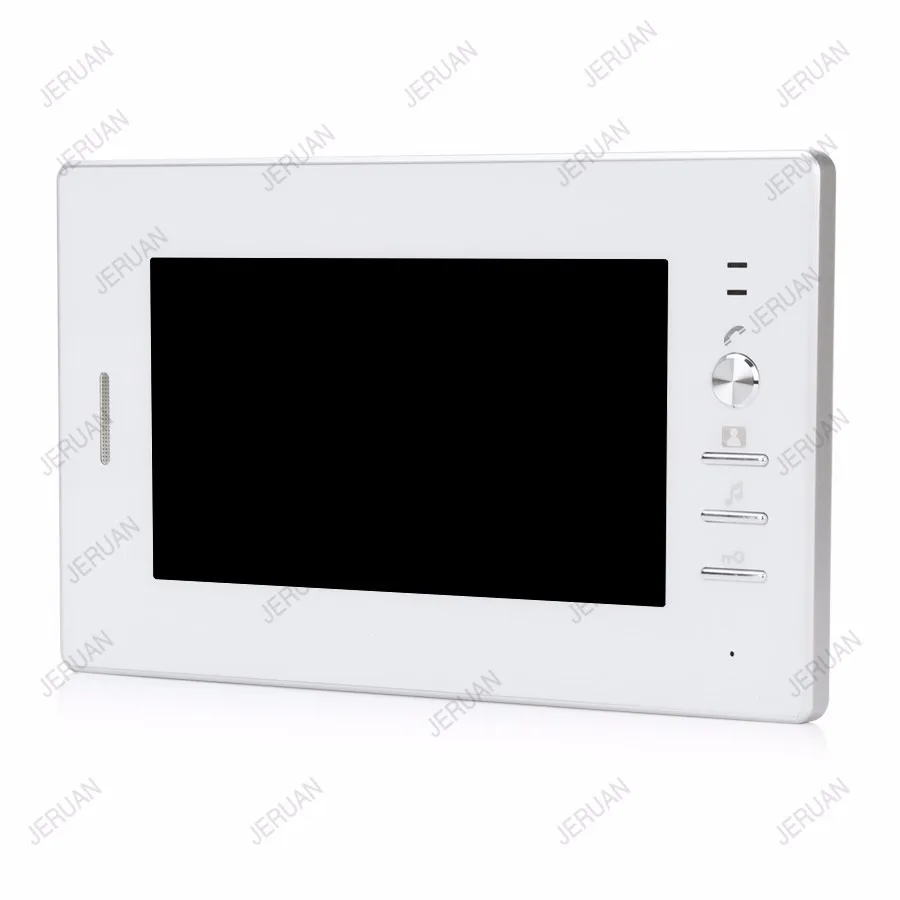

Indoor Monitor

Display

7” TFT(16:9 display)

Resolution

800 x 480

Charger

Adapter input voltage
AC100-240V 50Hz-60Hz

Adapter output

DC15V 1500mA

Material

Aluminum panel

Installation

Surface mounting

Power consumption

waiting-0.2W Working-0.8W

Ring the bell

16-chord

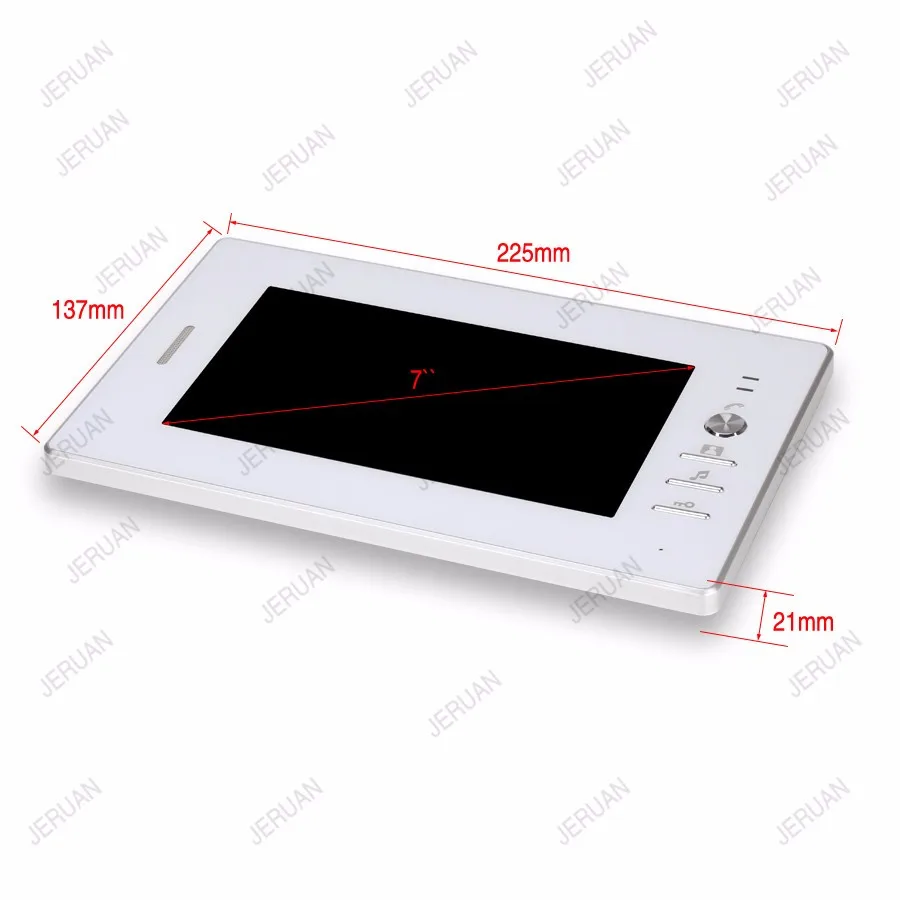

Dimensions

225 x 137 x 21mm (H x W x T )

Net Weight

0.32kg

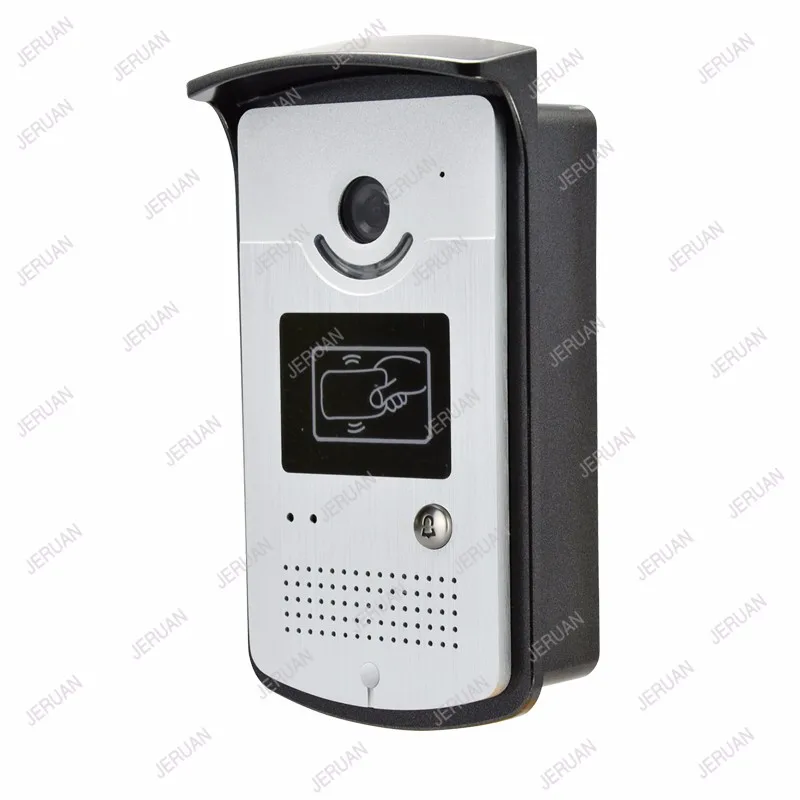

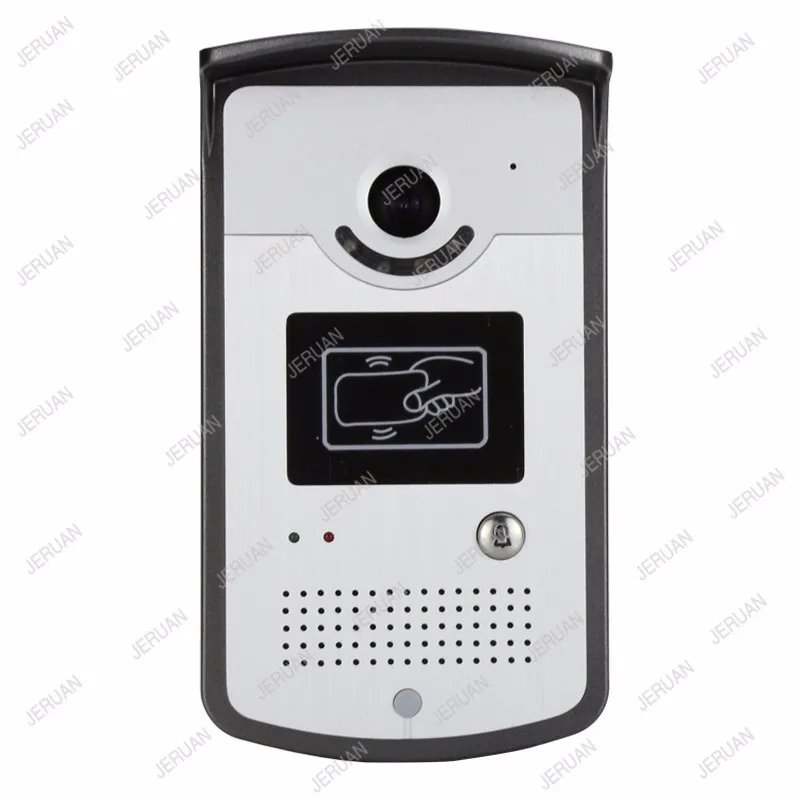

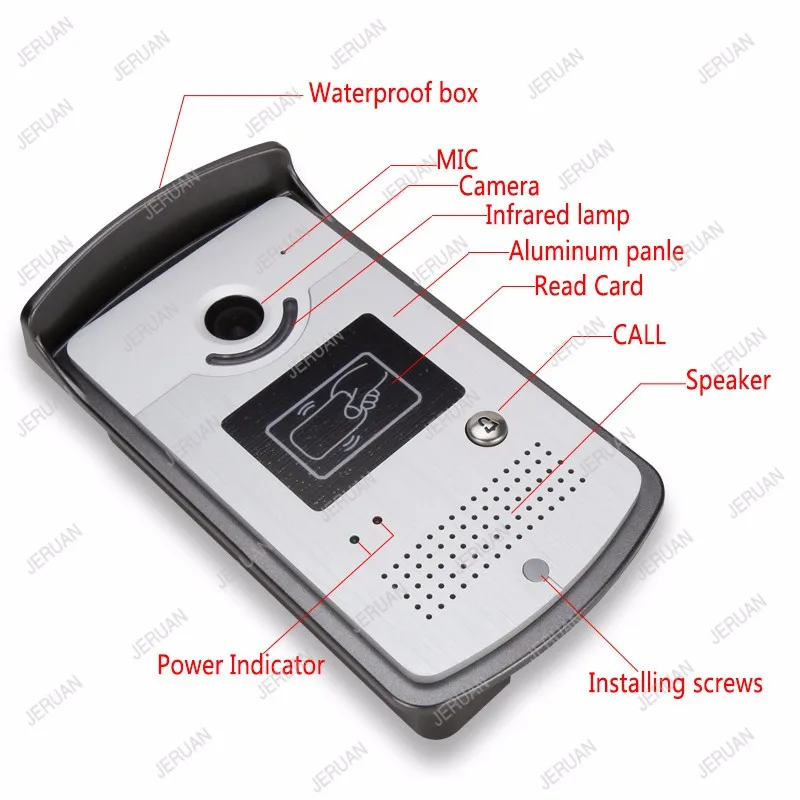

Outdoor Camera

Power

input: AC 100-240V
50/60Hz
output: DC 15V/2A

Camera

SONY 700TVL

Powe consumpt ion

Standby:2W; unlock:12w

Valid distance

80m(6*0.65MM2)

Viewing angle

92 degrees

Working temperature

-10C~+50C

Installation

Wall mounted

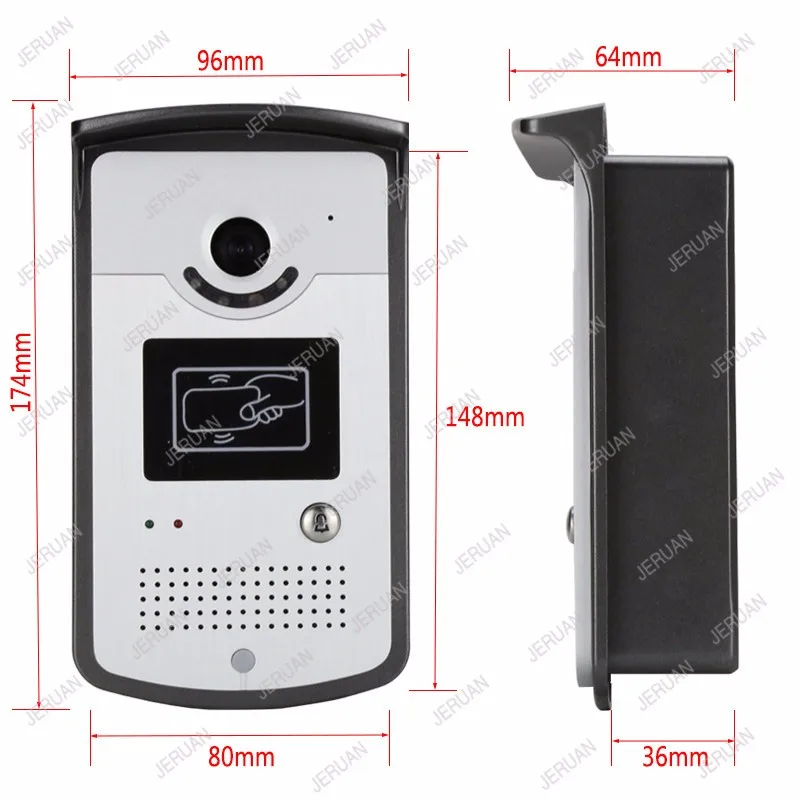

Dimensions

174*96*36mm(L*W*H)

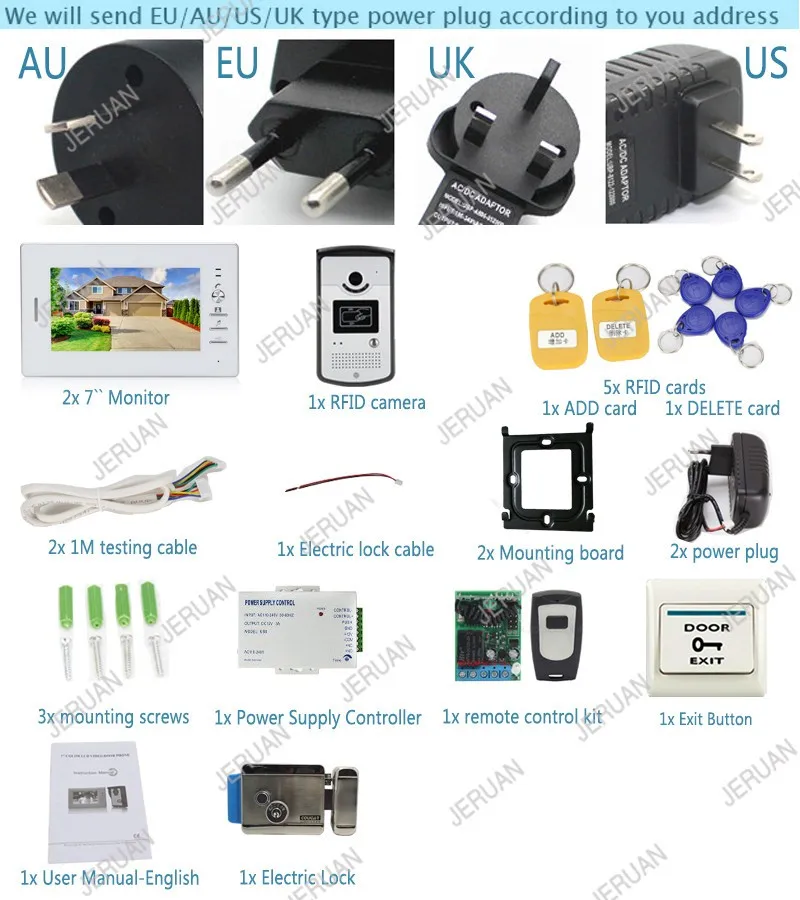

Package

720W-02-LOCK
