Item specifics
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Power: DC12V
  • Doorbell: Yes
  • Communication Interface: Wired
  • Kit Configuration: One to One video doorphone
  • Sensor Size(Inch): 1/4
  • Installation: Wall Mounting
  • Model Number: HN-998+666
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Technology: Digital
  • Display Screen Type: Color
  • Display Screen Size(inch): 9
  • Waterproof: Yes
  • Samrt Home Interface: Yes
  • Zone Input: None
  • Viewing Angle (°): 50
  • Resolution: 1/4" COMS 700TV
  • Access Control: Open the lock
Product Description



9 Inch Color LCD Video Door Phone Intercom System video citofono Video Doorbell with IR camera






How to handle a situation when someone (a stranger) is knocking on your door ?

It happens to all of us, sometimes regularly depending on the neighborhood. But if we hear an unexpected knock on your front door. The question is, what should we do ? Normally, we will do below things:

1. Open the door directly (It is not the best idea if you do not know who is outside. Obviously if you know it is the trusted person, then you can.)

2. Look out the door\'s window (if it has one) first to see who is knocking, if you don\'t recognize the person, you could ask through the door who they are and what they want. But the main thing is, it\'s best to look first, before blindly opening the door.

3. Ignore the knock on the door: If you are a woman(or child, older) at home alone, you may ignore the knock on the door. But if the stranger is a burglar – that person may go ahead and break-in if they think no-one is home. By making some noise or turning on a light, the stranger will know someone is home. On the other hand the person may continue to knock hoping to get your attention.

Now, the extremely effective and simple way is using our video door phone intercom speaker system.



Descriptions

The item you are watching is our new arrival video door phone system. The monitor is equipped with 9" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design, which can also be used a decoration of your house. It is a good choice for your home security and intercom.
This item contains 1 outdoor unit and 1 indoor unit, it supports 2 outdoor cameras and 4 indoor monitors at most. If you need more cameras and monitors, please feel free to contact us for quotation.

1







Indoor monitor:

Special point:

9inch color TFT-LCD
Room to room intercom
Auto IR night vision
Max. System capacity: 2 cameras & 4 monitors

Detailed Info.:

Main function: Monitoring,Unlocking,and Intercom
No.s of locks: 3 locks
Typed of unlocking: Singal or voltage unlocking
Unlimited time surveillance: Yes
No.s of chord melodies: 11 melodies for option
Wiring: 4-wire Pin end
Volume,Brightness,Color: adjustable
Power supply: DC 12V 2A
Power comsumption(complete set): working:  6W; Standby: <0.5W
Screen resolution: 800*480
Dimensions: 255(L)*155(W)23*(H)mm

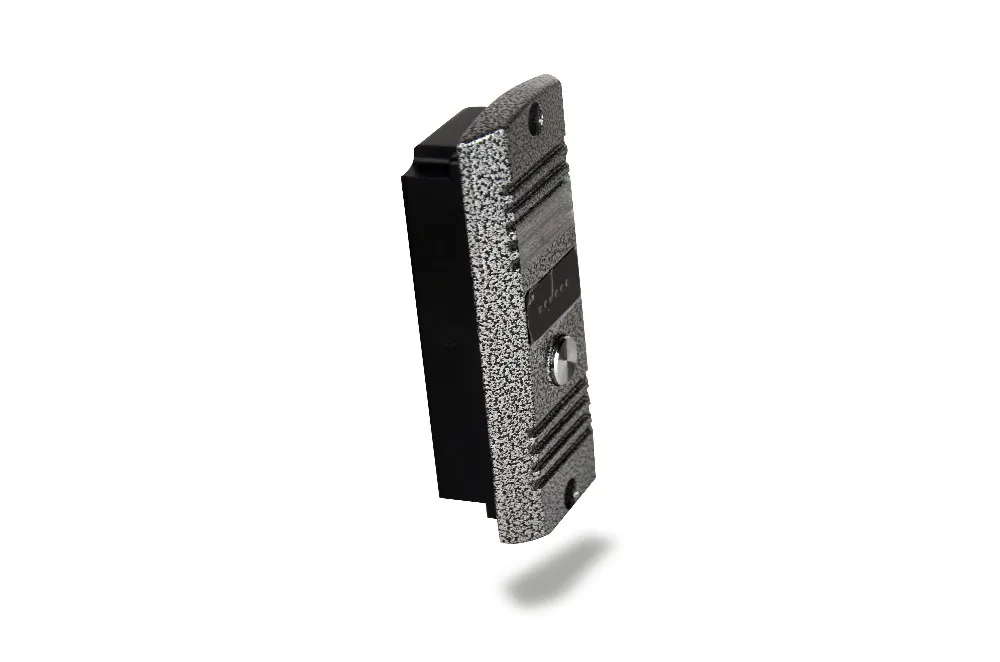

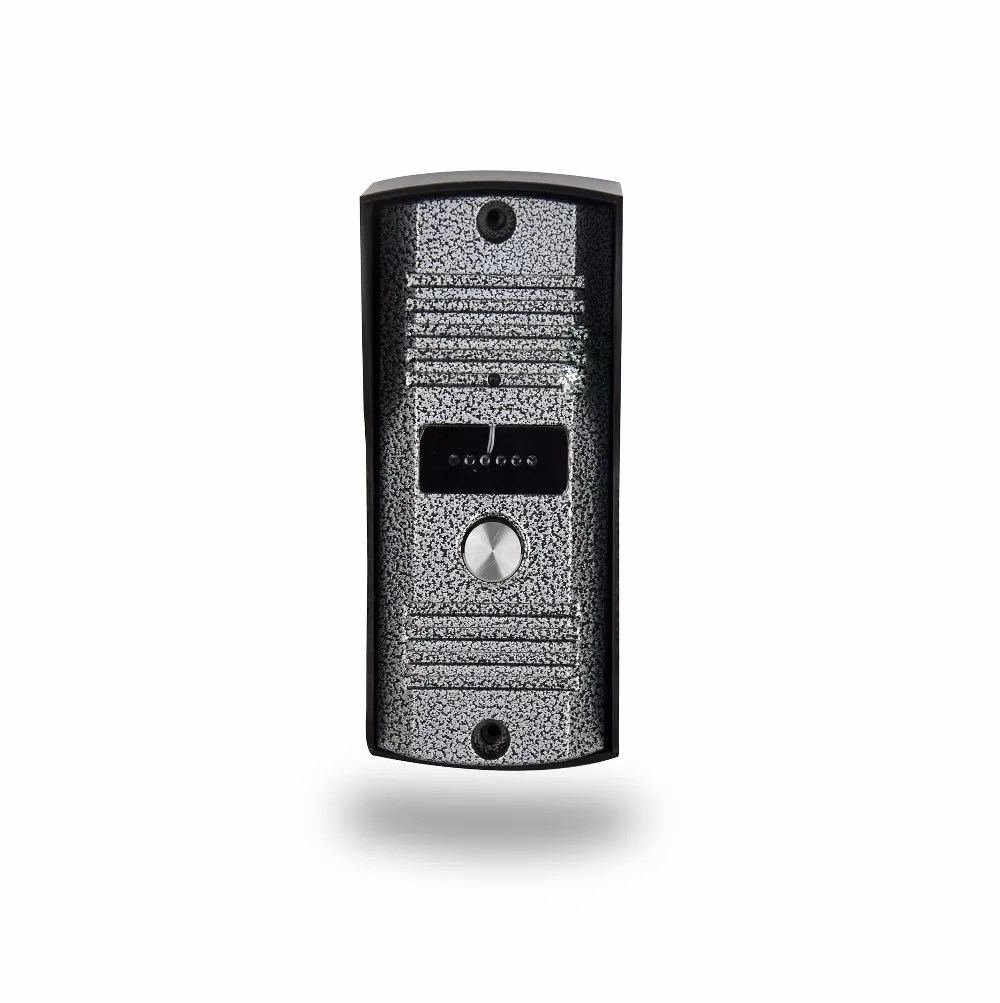

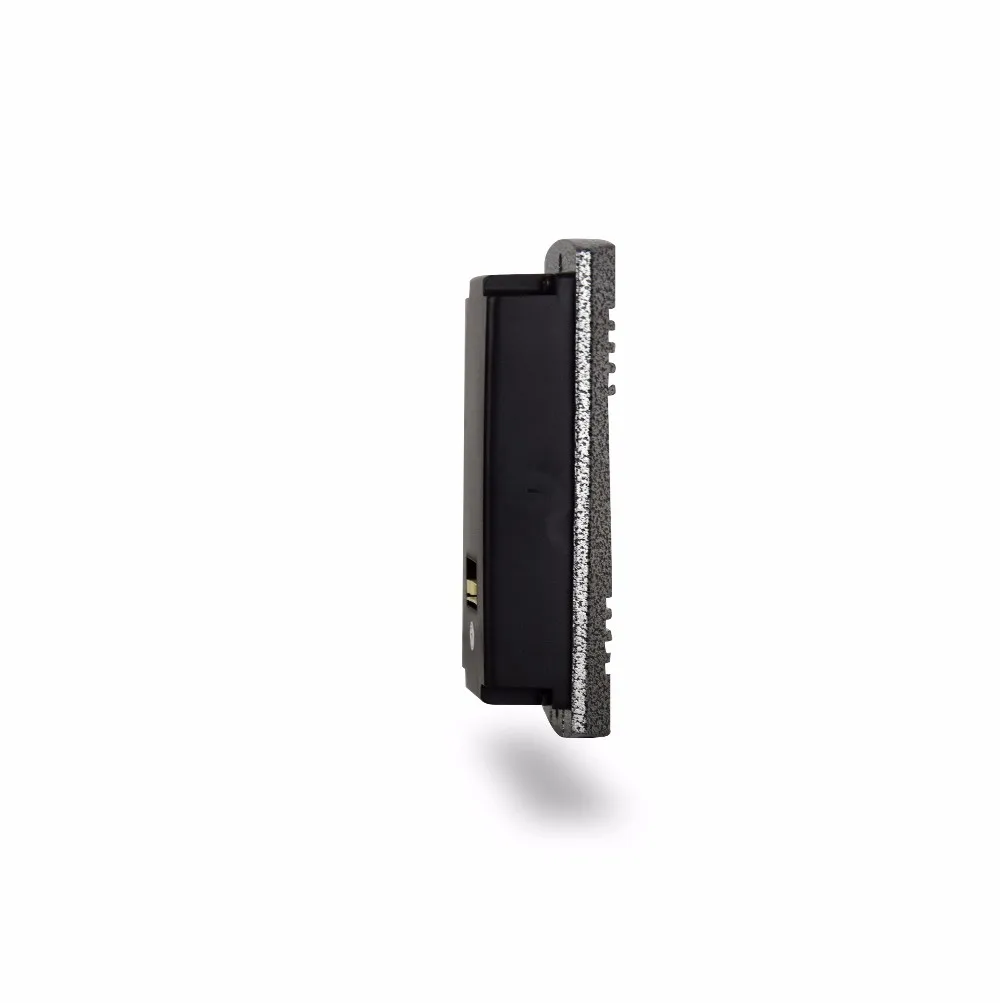

Outdoor Unit

1. 700TVL HD camera.
2. 940nanometer IR LEDs for night vision.
3. Adjustable intercom volume.
4. Dual-way intercom.
5. IR sensor, turn on/off IR LEDs automatically.
6. View angle: 50°, Lens: 6mm.
7. Easy to install and DIY installation.
8. Zinc Alloy Shell, Vandal-proof design and Waterproof Cover.



1 5 3












Package

Giftbox+Inner box
Standard accessories
1 x 9 inch LCD Indoor Device
1 x Outdoor Camera Device
1 x Power Supply Adapter
4-core wire+2-core lock controlling wire
a set of mounting screws1 x User Manual



Install wiring diagram
