Item specifics
  • Brand Name: Grenseure
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 12V 2A
  • Zone Input: None
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 65
  • Display Screen Type: Color Touch Screen
  • Model Number: DRM705R-666H 1V1
  • Camera: 700TVL
  • Power: 15v
  • Access Control: Unlock from indoor monitor
  • Monitor amount: one
  • monitor size: 7 inch Color Touch Sensor Button Screen
  • type: video intercom / video doorphone / doorbell camera
  • color of monitor: white
  • waterproof: Yes
  • Room to Room intercom: Yes
  • Max. System capacity: 2 outdoor cameras and 1 monitors
  • Time and Date display: Yes
  • video recording: yes
  • Touch Sensor Button: Yes
Product Description

 New Arrival 7" Wired Video Door Phone Intercom System With Recording Function

1 X 700TVL CMOS Camera + 1 X 7" Color TFT Recording Monitor

aeProduct.getSubject()





Description



The item you are watching is our new arrival video door phone system with recording function, it will record video automatically when someone press ring the bell. This allows you can see who visited your house when you are not at home or when you missed the call, if the visitors leave a message via the outdoor unit, you can also get more information via the video when you come back.
The monitor is equipped with 7" high resolution color screen and the camera is 700TVL, which will enable you to see clearly who is at the door. The camera mounted at the outside of the door allows you to talk outside and the people at outside can also talk to you. This 2-way communication is an inexpensive and effective way to talk with the stranger at the door without actually opening the door. You will experience great benefit from this video door phone system. Besides, both of the outdoor unit and indoor unit have good appearance and modern design. There is an important function compared to old version, this kit supports video recording, it can record a video automatically and it has a micro SD card slot supports Max. 32GB SD card.  It is a good choice for your home security and intercom.

This item contains 1 outdoor unit and 1 indoor unit. We provide a 8G SD card.





Features

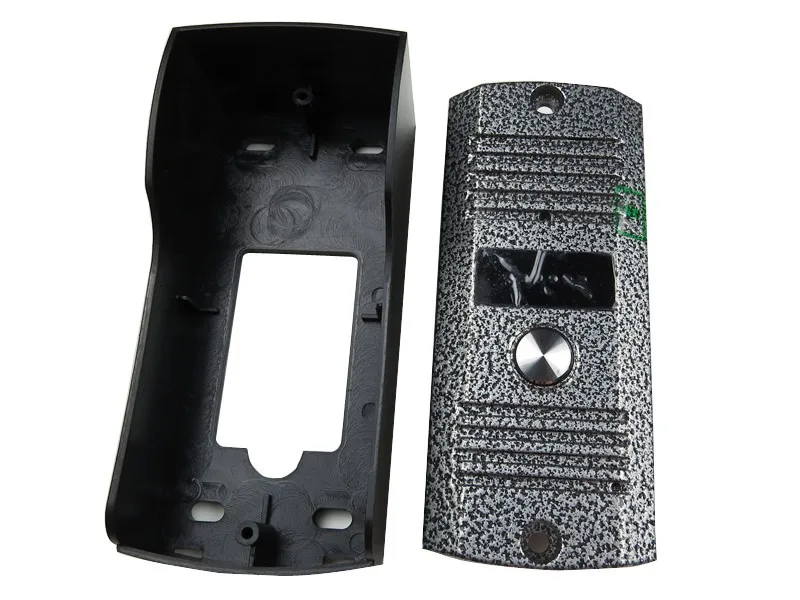

Outdoor Unit

1. Rain-proof cover, can work outdoor.

2. High resolution camera, 1/4" CMOS 700TV Line

3. Auto IR night vision

4. Power supplied by indoor monitor DC 12V

5. Operating temperature is -35~50°C

6. Relative humidlty less than 90%

7.Zinc Alloy Shell, Vandal-proof design and Waterproof Cover.



Indoor Monitor

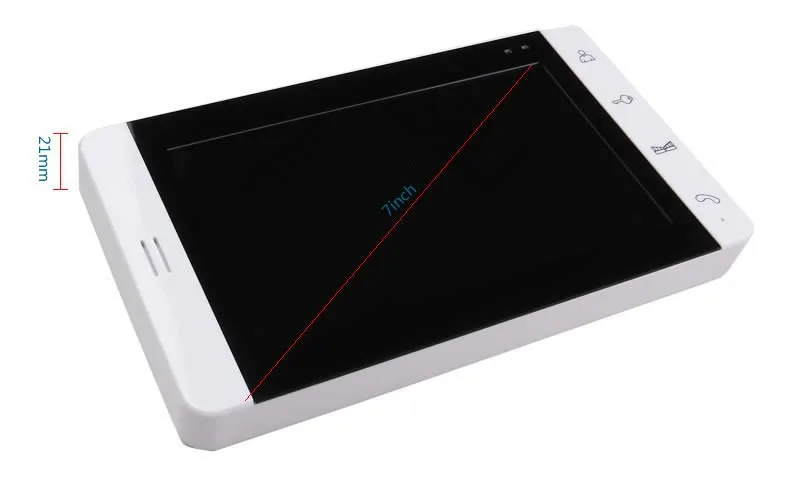

1.   7" TFT Hight resolution Color screen.
2. Super Slim design.
3. 11 Ringtones for choice.
4.   Door answering, monitoring and Unlocking.
5. Adjustable color, brightness and volume.
6. Video Recording and Photo Taking Function

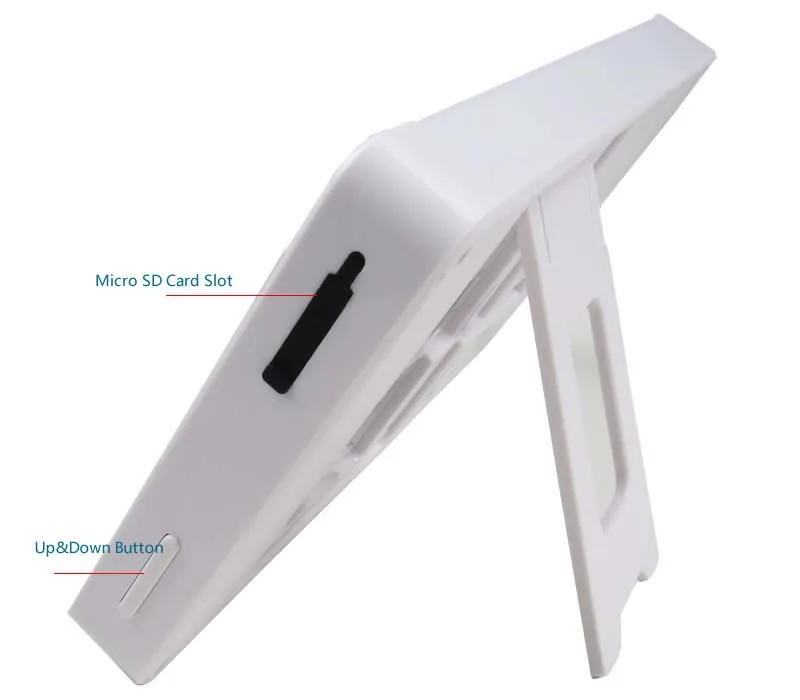

7. Support Max. 32GB SD card
8. Touch sensor button
9. Elegant Apperance.



Details



aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()

aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()


Electrical lock and indoor Unlock, make house safer

This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don\'t need to go to the door to unlock the lock for your guest, you just need to press unlock button on monitor, then the lock will open. It will bring great convenience for you and your family members.
(Please note the E-lock is not included, if you need, please contact us for quotation)

aeProduct.getSubject()







Warm Prompt

1.We provide cable connectors in the package, you can buy additional cable to extend the cable from your local market.

Cable Requirements:(Camera-to-monitor uses 4 core cable, Monitor-to-monitor uses 5 core cable)
0-30M: RVV4/5 *0.5mm⊃2;
30-50M: RVV4/5 *0.75mm⊃2;
50-100M: RVV4/5 *1mm⊃2;

2.In case of the damage during transportation, we place a protective film on the screen. You can tear it down if you don’t like it.

3.Please install the products according to this instruction manual to avoid of damaging the products.

4.Please do bench test this system before installing it.

5.If you need more extra monitors or camera or other model, please feel free to contact us.





Specification

Outdoor Camera
Camera Resolution
700TVL
Night Vision Distance More than 2 meters
Working Temperature -25 °C ~ +50°C
Intensity of Illumination 0.01 lux
Lens 5mm
Dimension 145mm(L) x 65mm(W) x 51mm(H)
Installation surface mounted
Material Metal
Net Weight 400G
Model 666H
Indoor Monitor
Screen 7" LCD Digital 16:9 Display
Video recording Yes, support Max.32 GB SD card
Time and date display Yes
Max.Nos.of locks 2 locks
Type of unlocking Singal or voltage unlocking
Adapter Input AC100 - 240V 50-60HZ
Adapter Output DC12V

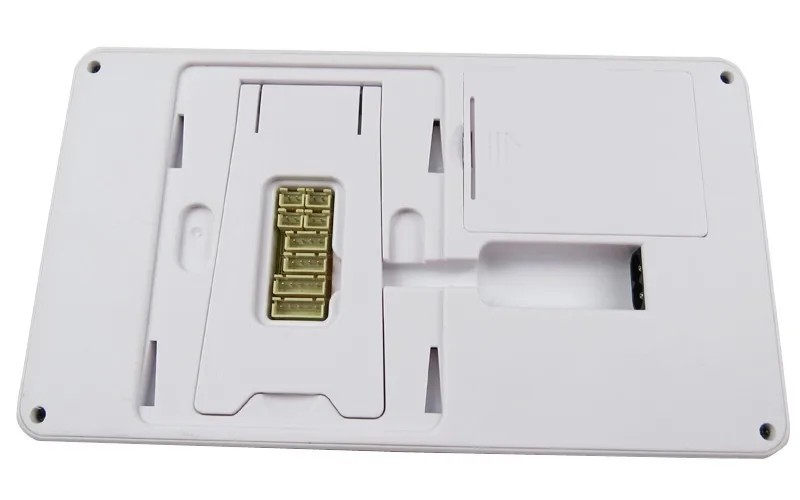

Wiring 4-wire Pin end
Room to room intercom Yes

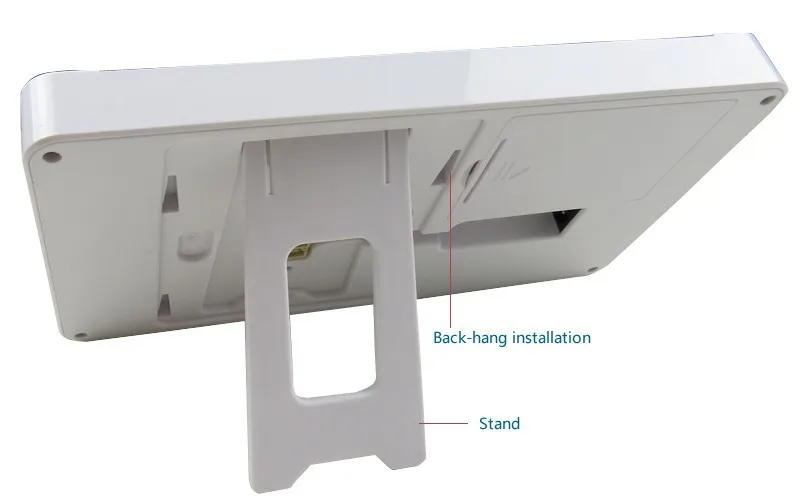

Installation Wall mounted

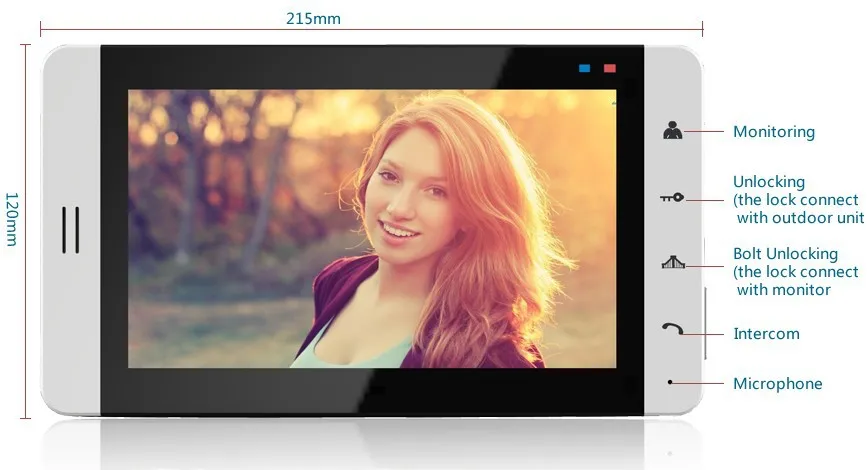

Dimension 215mm(L) x 120mm(W) x 21mm(H)
Weight 600G
Max. System capacity 2 outdoor stations & 4 monitor
