Item specifics
  • Brand Name: Grenseure
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 15V DC
  • Material: Metal ABS PMMA
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: No
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to One video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 90
  • Display Screen Type: Color
  • Model Number: XSL-V7C-ID-1V1 + Electric strike lock
  • Camera: color in daylight and B/W in night vision
  • Power: 110-240V AC
  • E-lock: Electric strike lock
  • type: video intercom / video door phone / door bell intercom
  • monitor size: 7 inch TFT Color monitor
  • remote control: support
  • room to room intercom: support
  • night vision: support
  • waterproof: support outside working
  • RFID access: support
Product Description

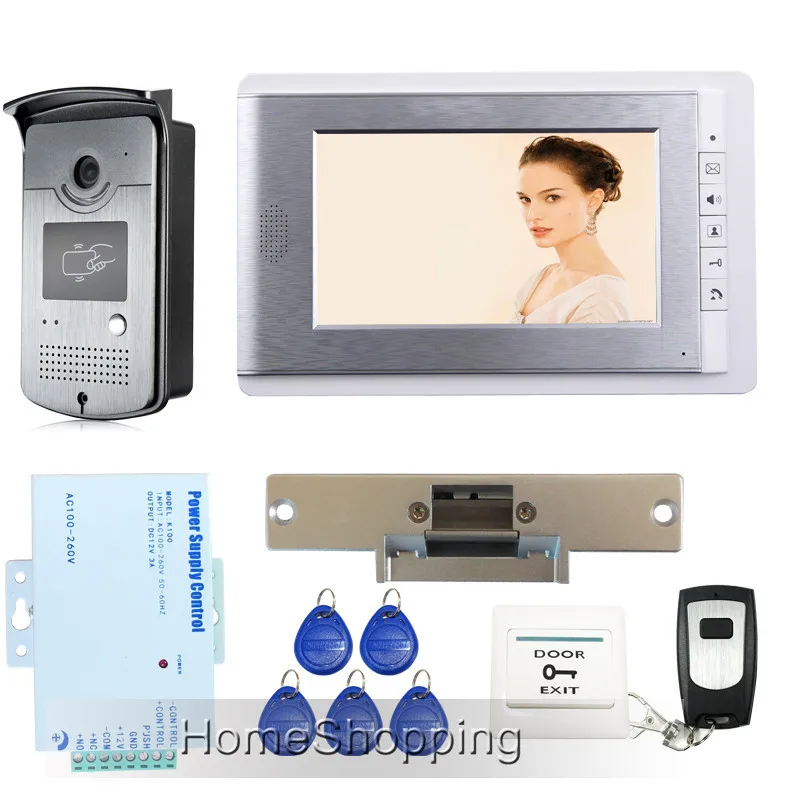

WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!



aeProduct.getSubject()




In order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, a push release button, electric strike lock and remote control module have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.






Features


  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Supports communication between two indoor monitors.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 rfid keyfobs.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.




aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()



aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject() aeProduct.getSubject()











Electric Strike Lock

This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.





  • NC Mode - (Locked while supplied with power) Unlock Safe Mode.
  • If you need NO mode, please contact us before bidding.
  • Made of Stainless Steele
  • Performance Testing: 1000000 times aging test
  • Opening Mode: 90 degree swinging door
  • Authority Certification: CE & MA Approved
  • Application: wood door
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 400g
  • Dimension (Face Plate): 150mmx39.5mmx 28.5mm
  • Pack includes: One electric strike lock
aeProduct.getSubject()


Remote Control



aeProduct.getSubject()



Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()



Wiring

aeProduct.getSubject()




Note:
  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m





Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -35 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 150(W) * 26(H)mm
Net Weight 500g
Outdoor Camera
Camera Lens 1/3" CMOS
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -35 ~ 50 Celsius
Case Alunimum panels
Installation Wall mounting
Size 174(L) *96(W) * 36(H)mm
Net Weight 640g
