Item specifics
  • Power: 110V to 240V AC
  • Power: 220v
  • Material: ABS Metal
  • Samrt Home Interface: No
  • Communication Interface: Wired
  • Access Control: Inductive Card
  • Kit Configuration: One to Three video doorphone
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Technology: Digital
  • Model Number: XSL-V70F520 1V3 + RFID access system
  • Zone Input: None
  • Resolution: 420TVLine
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 90
  • Doorbell: Yes
  • Size: 30cm*20cm*28cm (11.81in* 7.87in* 11.02in)
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Brand Name: MagicVision
  • Camera: Color
Product Description

WIRED 7" Apartment VIDEO INTERCOM SYSTEM for 4 Household

700 TVL  Camera, Clearer Video!
3951-mainThis Hard-wired Video Door phone Intercom System consists of three 7\'\' color TFT monitor and one door camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.



The system has 1 doorbell and 3 monitors. 1 call button for 1 monitor. You can call directly the room you want. It supports max 8 monitors.



Features

  • With micro-processing technology, auto-remote control, excellent performance and high reliability.

  • The TFT 7 inch digital color LCD for monitor.

  • Clear night-viewing , 24 hours monitoring, calling, speaking and unlocking remote controlling etc.

  • Additional monitor available up to 8(optional) at most.

  • TFT color screen with low power consumption, no radiation and high definition.

  • Hands-free intercommunication.

  • Brightness, chroma and volume adjustable.

  • 25-chord melody rings for option.

  • Cabling: 4-core connection cable

  • 700 TVL Camera.

  • Do not disturb mode

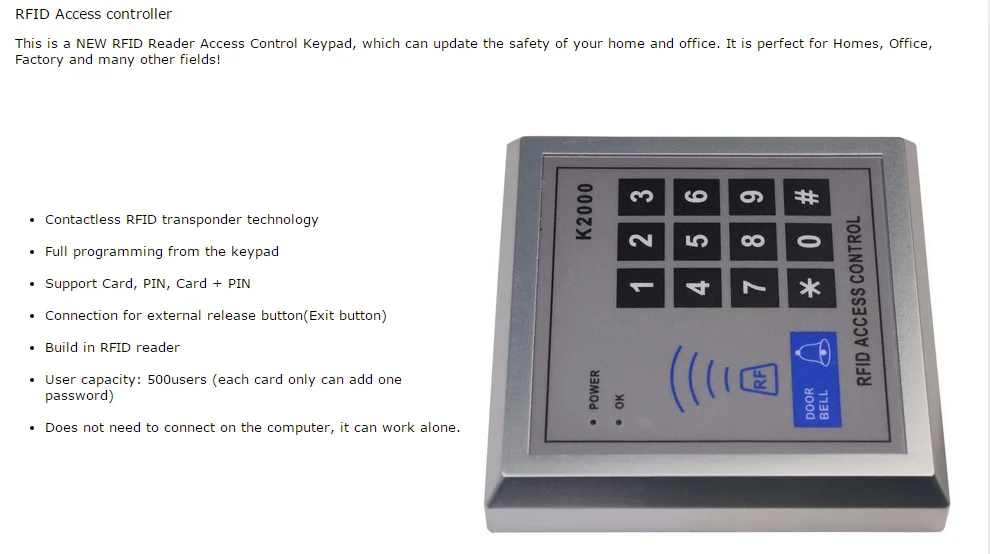

  • Comes with a RFID access control system

Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.



















520-3hu-2520-ad1

V70F-520 1V3 + RFID access system-3V70F-520 1V3 + RFID access system-4V70F-520 1V3 + RFID access system-5V70F-520 1V3 + RFID access system-6




Application:
Note:
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m

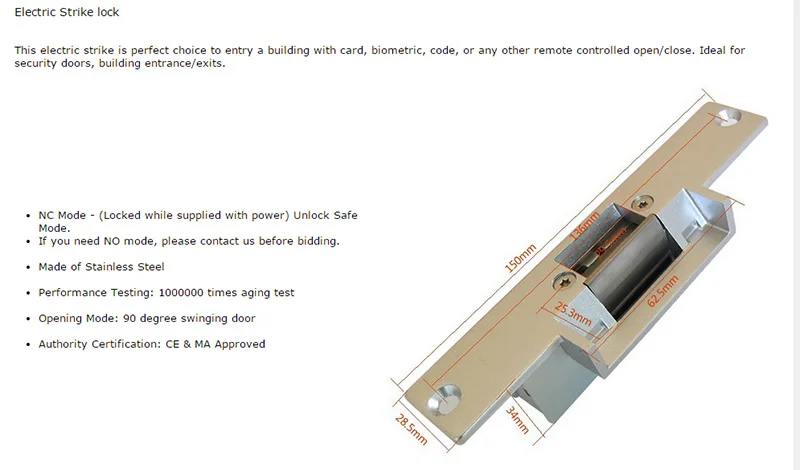

    Outdoor to Electric lock max distance 2m 3m 5m



Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W

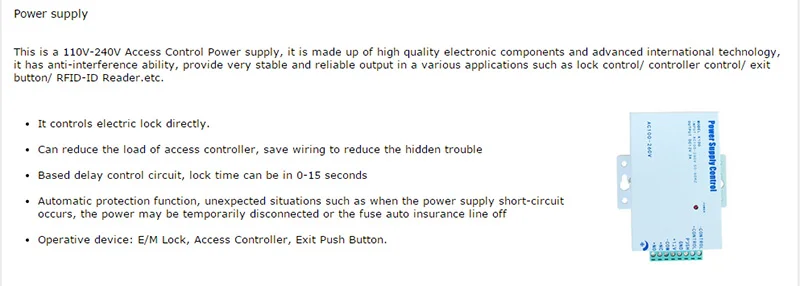

Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -30 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 150(W) * 26(H)mm
Net Weight 500g
Outdoor Camera
Camera Lens 1/3" CMOS
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -30 ~ 50 Celsius
Case Alunimum panels, waterproof
Installation Wall mounting
Size 276(L) *122(W) * 45(H)mm
Net Weight 840g





Package

NOTE:
We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.



3951-package







Packaging Details
  • Unit Type: piece
  • Package Weight: 4.5kg (9.92lb.)
  • Package Size: 30cm x 28cm x 20cm (11.81in x 11.02in x 7.87in)
