Item specifics
  • Connection Method: Wired
  • Camera Sensor type: CMOS
  • Answering Mode: Hands-free
  • Display Screen Size(inch): 7
  • Kit Configuration: One to One video doorphone
  • Viewing Angle (°): 90
  • Type: Intercom System
  • Display Screen Type: Color
  • Zone Input: None
  • Communication Interface: Wired
  • Installation: Wall Mounting
  • Technology: Analog
  • Samrt Home Interface: No
  • Waterproof: Yes
  • Access Control: None
  • IP Camera Interface: No
  • Model Number: V70H-B-L-1V1
  • Camera: B/W
  • Power: 220v
  • Sensor Size(Inch): 1/3
  • Power: DC15V 1500mA
  • Material: Plastic
  • Doorbell: Yes
  • Resolution: Other
  • waterproof: Yes
  • size: 7 inch
Product Description


Package Included

Package Included:

  1x Outdoor Camera

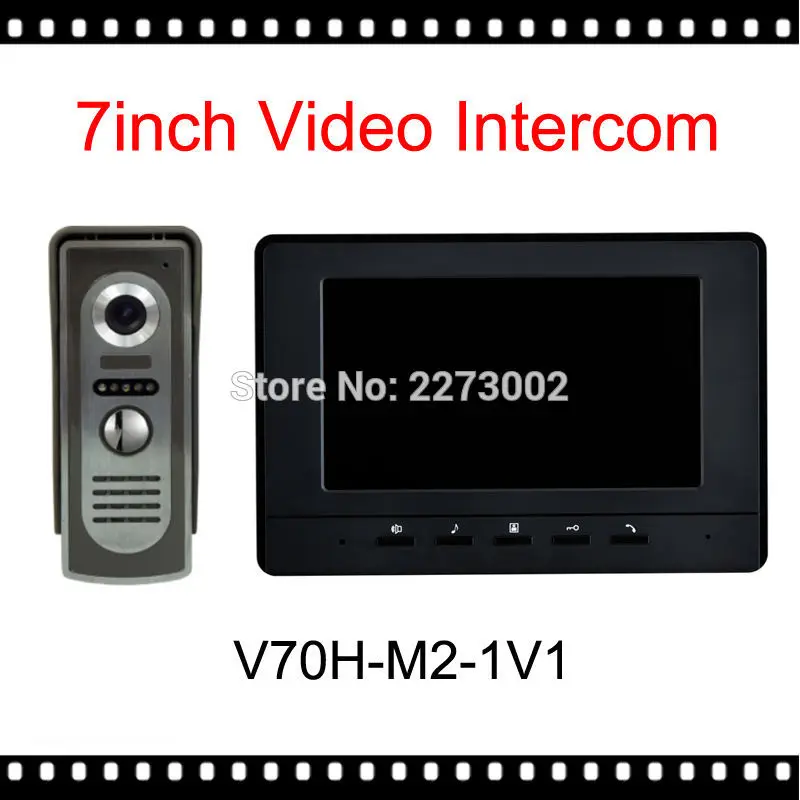

   1x 7 inch Indoor Monitor

   1 x Hanging plate

   1 x Power Adapters

   3 x connection cable

   4 x Screws

   1 x User Manual






Photos List

Main Features
New Brand Wired Video Doorphone, High - definition cameras and Night vision, Remote control open the door , 7 inch Digital High-definition TFT-LCD for Indoor Monitor. With micro-processing technology, auto-remote control, excellent performance and hight reliability.
Main Funcitons

* With micro-processing technology, auto-remote control, excellent performance and high reliability
* The TFT 7 inch digital color LCD for monitor
* Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc
* Additional monitor available up to 6(optional) and 3 outdoor cameras at most
* TFT color screen with low power consumption, no radiation and high definition
* Hands-free intercommunication
* Brightness, chroma and volume adjustable
* 25-chord melody rings for option
* Cabling: 4-core connection cable
* Do not disturb mode

Main Specifications
* Type: Wired Video Doorphone & LCD Wired Indoor Monitor
* Wiring requirements: 30 meters: RVV4 x 0.5mm; 50 meters: RVV4 x 0.75mm; 100 meters: RVV4 x 1.0mm
* Monitor:
7-inch TFT-LCD 800 x480
* Imaging Sensor: 700TV Line CMOS
* Working temperature: -15~55 degrees
* Relative humidity: 10 % ~ 90%(RH)
* Dissipation: stand-by <0.5W working <10W
* Talk time delay: 60 seconds
* Monitor time delay: 60 seconds


Indoor Monitors Specifications

* Function: Intercom, Monitor, Unlock the door

* Power supply: Input AC100-249V

* Output: DC 15V 1500mA

* Screen size: 7inch colour TFT-LCD

* Resolution: 800*480

* Case:ABS  Plastic                                                                                                                                           *

* Dimensions: 240x150x26mm

* Installation: Surface mounting

* Weight: 0.44kg


Outdoor Camera Specifications

* Camera:  700CMOS Super backlight compensation

* Night vision distance: WLED   3m

* Case:  Aluminum Alloy

* Viewing angle: 85 to 92 degrees

* Dimensions:  52x125x35(mm)

* Installation: Surface mounting

* Net Weight: 0.24kg
