Item specifics
  • Samrt Home Interface: No
  • Access Control: Password
  • Communication Interface: Wired
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Technology: Digital
  • Size: 225 x 128 x 23mm
  • Zone Input: None
  • Kit Configuration: One to Two video doorphone
  • Resolution: 420TVLine
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 92
  • Doorbell: Yes
  • Model Number: SY807MJIDS12
  • Power: 110V - 240V AC
  • IP Camera Interface: Yes
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Brand Name: DIYSECUR
  • Material: Plastic
  • Power: DC 110V-240V
  • Camera: Colours
  • Type: Video door phone / door bell / intercom
  • Special function: RFID reader
  • Frequency: 125KHz RFID
  • Color: White
  • is_customized: Yes
Product Description


NEW Version Hardwired 7" Video Door Phone System Compatible With CCTV Camera


Unlock via unlock button on the monitor, RFID key fobs, password or remote control



This system consists of an outdoor unit with keypad and an 7" indoor monitor. It has a bi-lateral intercom. The indoor unit has a provision for remote unlock function and can monitor the outdoor situation at any time. The outdoor unit come with code keypad,it integrate the intercom system and the access controller system,it make the security system more convenient. And the advanced infrared-assisted lighting features, enables you to identify the visitors even during night time.What\'s more,the 7" monitor can connect with the CCTV camera,it supports 4 CCTV cameras at most.
More importantly, this door phone kit can be connected with up to 4 CCTV cameras to meet your needs. And the 4 CCTV pictures can be transformed by adjusting CH1, CH2, CH3 or CH4. As to the applications, it can be widely used in apartments, villas, hotels and offices etc. The CCTV cameras may help you to monitor the dead angles around your apartments, villas or offices.
  • 7" TFT digital color LCD;
  • Touch sensor button on the panel;
  • Ringing volume can be adjusted;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Monitor unlock control;
  • CCTV monitoring;
  • CCTV image can be switched by the Channel Switch button ;
  • Color CMOS 420TVL Camera with high resolution;
  • Camera with 6 IR LED. Auto light-on led for night view;
  • Keypad password access control;
  • RFID keyfob access control;
  • Rainy cover or full flush mounting;
  • Supports 500 ID cards;
  • Supports maximum 3 remote controllers .
  • IP55 protection rate;

Detail shows:


  • This door phone intercom adopt advanced touch technology, the full touch panle brings more sensitive touch experience.


5 .jpg

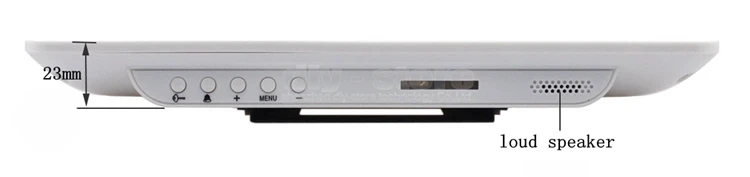

  • The ultrathin LCD display feels light and convenient. Furthemore, the piano bakes lacquer panel also looks more fashionable, elegant and luxury.


IMG_60740 .jpg
  • With the large 7\'\' color LCD, the display image in the monitor is very clear for viewing or monitoring, which will definitly suit for general use.
4 .jpg
  • The Volume, brightness and chroma can be adjusted to meet your need. Besides, there are 16 kinds of music rings for selection.



  • The built-in infared LEDs make it available to see the vistor outside at night or at dark. It benefits more for the home security.




  • The back-hang design also is one of the advantages, which make the monitor be installed more easily and convenient. It can be installed anywhere you want.


IMG_6053 .jpg


  • The outdoor camera is attached with a rain proof cover to prevent the water. You needn\'t worry about the outdoor camera would be wet in the rainy day.





  • One to four respective CCTV cameras can be connected to this door phone kit. It is very useful for you to monitor the dead angles around your apartments, villas or offices. Besides, the CCTV image can be alternated by pressing the shift button.


IMG_6070 .jpg



  • Electric door release
    Unlock by unlock button on the monitor, RFID key fobs, password or remote control.



4 in 1.jpg




Dual-way intercom and indoor monitoring

When someone press the call button on outdoor unit, it will active the indoor monitor, monitor will turn on, ring and show the video outside. So you can see who is outside, a postman? a neighbor? a salesman? an old friend? or a burglar? Then you can press the response button on monitor to talk with the people outside, unlock the lock and press the response button again to end the conversion. When the monitor in standby mode, you can see what\'s going on outside by press monitoring button.





Electrical lock and indoor Unlock, make house safer

This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don\'t need go to the door to unlock for your guest, you just need to press unlock button on monitor. It will bring great convenience for you and your family members.

( This electric lock is not included, if you need please feel free to contact us. )






This door phone system can be widely used in Villa, office, private house, and other place needs intercom. It is not only a intercom system, but also a home security system.






  1. We probide 5m 4-core cable. Please feel free to contact us for quotation if you need longer cables.
  2. The cables are very easy to be found in your local market as they are international standard like cat5 cable.
  3. The power supply is used to be connected with monitor.
  4. We only suggest using this type e-lock for this door phone system as shown on the picture, if you want to connect this door phone system to another type e-lcok, you can purchase other type door phone in our store.
  5. We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  6. The total length of the 4-core connection cable can NOT exceed 120 meters.







Outdoor Camera

Model No.


Night Vision

IR Light, visible within 5 meters

Vision Angle

92º Wide Angle


> 420 TV Line

Plus Control


Power Consumption

Standby: 0.1W; Working: 4W

Working temperature



Wall mounted



Net Weight


Indoor Monitor

Model No.



7\'\' wide angle TFT LCD, 16:9 Display



Power input

AC100V-240V 50Hz-60Hz

Power output

DC 15V  2A

Current output


Delay Calling time

120s ±10%

Delay Monitoring time

40s ±10%

Valid Distance

80M (4x0.65 mm2)

Power Consumption

Standby: 0.5W; Working: 8W

Transmitting Distance of Image

about 200m

Viewing Angle


Adapter Input

AC100~ 240V, 50/60Hz

Adapter Output

DC 15V

Working Temperature


Standby Temperature



Wall mounted/lift on desk



Net Weight






Packing list:








Packaging Details
  • Unit Type: piece
  • Package Weight: 2.0kg (4.41lb.)
  • Package Size: 20cm x 25cm x 20cm (7.87in x 9.84in x 7.87in)
