7" TFT Video Door Phone Intercom System Video Recording & photo taking monitor doorphone TF support Up to 32GB 708-C2V
Video Recording & photo taking +8GB TF Card+EXIT Button
Indoor Unit Specification:
- Screen size:7”(16:9 display)
- Resolution: digital:800(RGB)×480Pixel
- Visual angle: up 50 degree, down 70 degree, left or right 70 degree
- Brightness: 200cd/centiare
- Ringtone: chorded polyphonic ringtone
- Sensitivity: 56db
- Signal system: PAL/NTSC (optional)
- Input voltage: AC 100V-240V ~ 50Hz/60Hz
- Overall Power Consumption:≤6W(400mA)
- Stand-by Power Consumption:<1.1W
- Power Adapter Specifications: DC 15V 1000-1500mA
- Talk Time Delay: 120S±10%
- Monitor Time Delay: 40S±10%
- Effective distance:200M(4×0.75M centiare)
- Operating Temperature:-20~+60 degree
- Relative humidity:10%~90%(KH)
- Indoor unit installation method: wall-mounted type

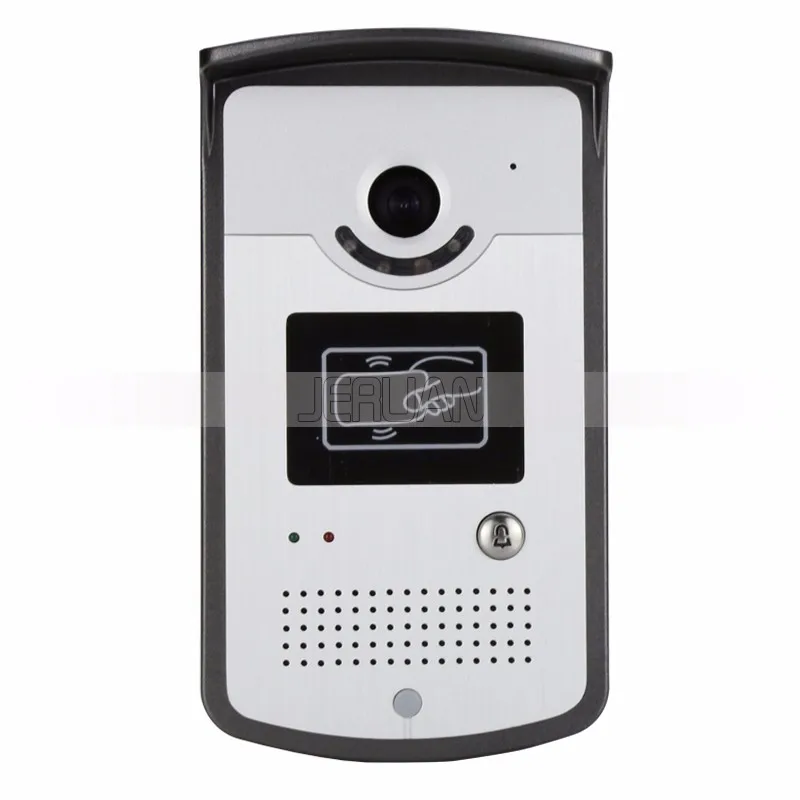

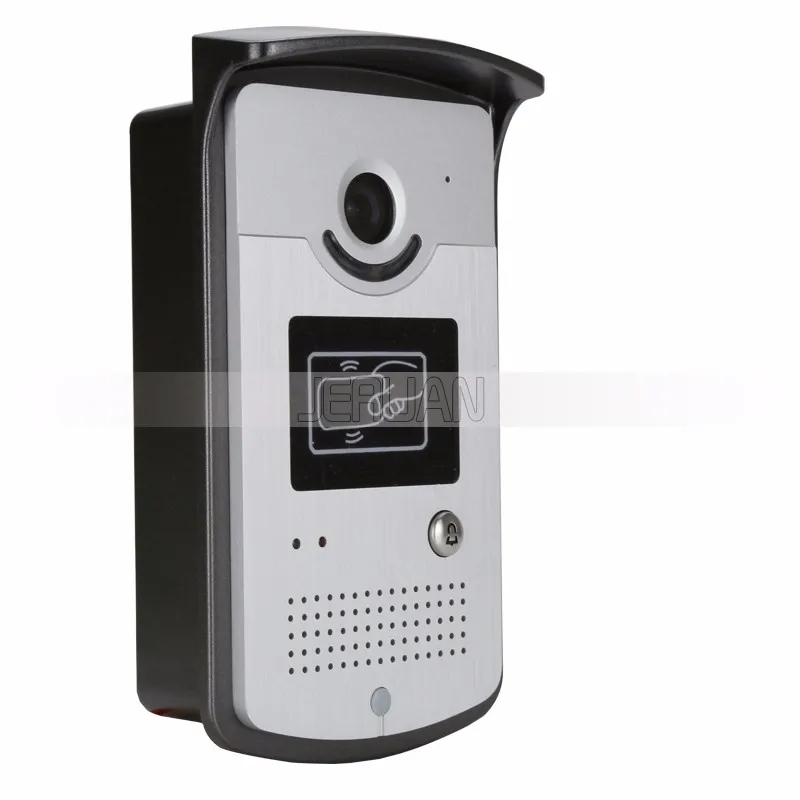

Outdoor Unit Specification:
- Infrared lamp lighting distance: approximate 4 meters
- Gain control: auto
- Resolution: 700 lines
- Talk time delay: 120S±10%
- Image transmission distance: approximate 200 meters
- Visual angle: 92
- KW: <2W
- Power: DC 15V (provided by the extension phone directly)
- Camera : High definition and colorful CMOS/CCD(optional)
- Outdoor infrared night vision function: 10 LUX infrared
- Operating Temperature:-20~+60 degree
- Outdoor unit installation method: embedded or wall-mounted type
1.7 inch color TFT digital LCD screen,low power consumption without rediation real widedisplay with high resolution
2.Hands-free talkhack funtion
3.Electronic control lock function
4.Outdoor monitioring function
5.Indoor mutual talkback funtion
6.Voiding disturbing during rest time function

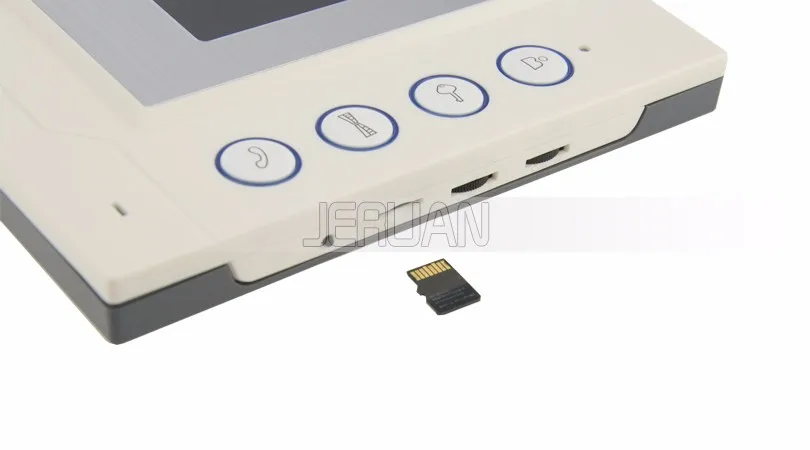

The unit is with build in 2M memory(can store 50pcs photos),also you can insert external memory card into the system for photo/recording,It will photo automatically and make a 15S video once the visitor pressing the outdoor camera call bottom.if the memory is full,The new file will overwrite the earlier file automatically(Note:the item should be installed with TF card in advance)
8.Brighness,color and sound volume of indoor phone can be adjusted
9.Indoor phone has thin design,aluminum deck or top grad Acrylic panel electroplating buttoms;all of this makes its luxurious high-quality decorative style
10.There are 24 pieces beautiful chord music ringtone can be chosen
11.outdoor station is exquisite and durable;it has function of viewing at night by infrared.The embedded istalltion makes it nice and safe
12.The available distance is 200M to connect the connection wire;it will not affect the picture it shows and talkback
13.Complete accessories are attached.users can install the machine by themseves according to the“Operation instruction".they also enjoy the happiness which is from the installation
7`` TFT Hight Quality panle with Resolution（800*480）,Ultra-thin Design Video Door Phone with Video Recording & Photo Taking Function, External Micro-TF Support Up to 32GB.

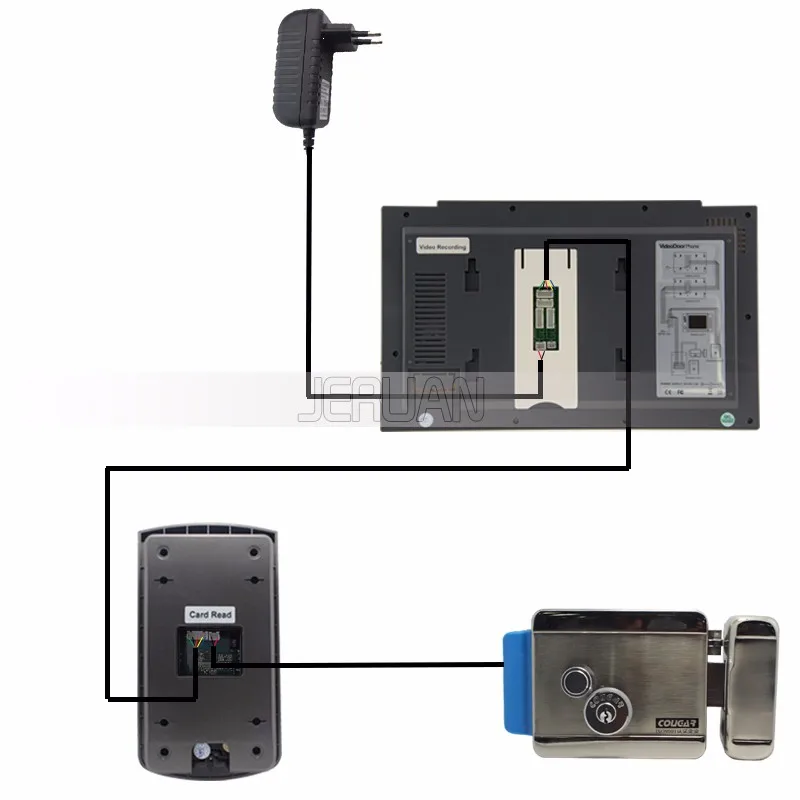

Note: Your door is electrically controlled lock can be directly connected to the outdoor unit to unlock the door if you are installing mute lock or electromagnetic locks, please access the power connection of the outdoor unit. Thank you
The cables are very easy to be found in your local market as they are international standard.
We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
The total length of the connection cables can NOT exceed 100 meters.
If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.

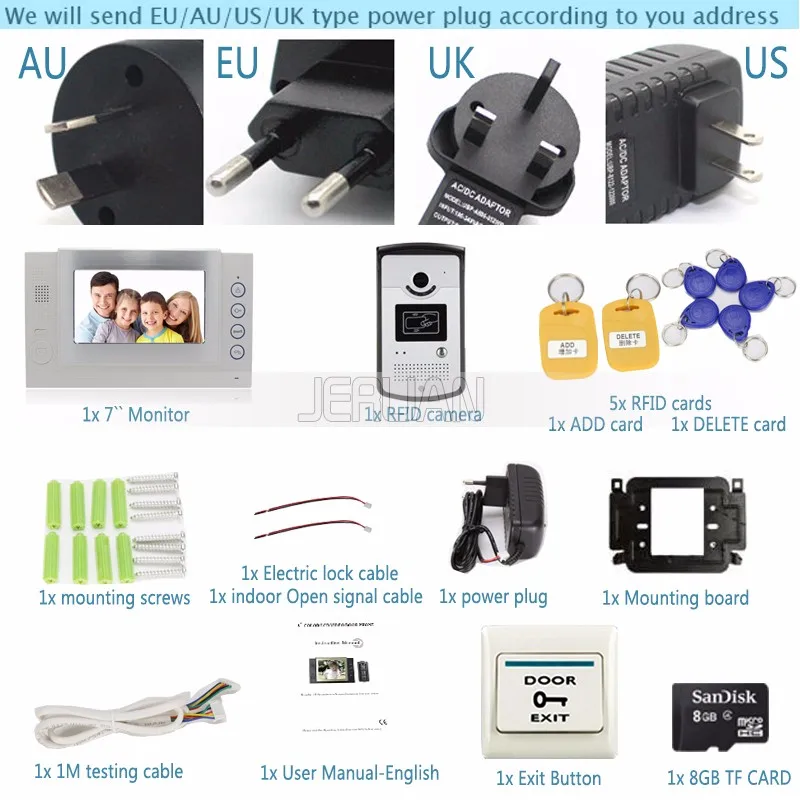

What\'s in the box:
