Item specifics
  • Brand Name: Grenseure
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wired
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Power: 15VDC
  • Material: ABS Metal
  • Zone Input: None
  • Access Control: Inductive Card
  • Resolution: > 420 TV Line
  • Samrt Home Interface: No
  • Display Screen Size(inch): 7
  • Doorbell: Yes
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • IP Camera Interface: No
  • Kit Configuration: One to Two video doorphone
  • Installation: Wall Mounting
  • Viewing Angle (°): 90
  • Display Screen Type: Color
  • Model Number: XSL-V70F-ID-1V2 + long plate Electric strike lock
  • Camera: color 700TVL
  • Power: 110v-240VAC
  • Color: White
  • E-LOCK: 250mm long plate Electric strike door lock
  • size: 7 inch monitor
  • type: video intercom / video door phone / door bell intercom
  • room to room intercom: support
  • remote control unlock: support
  • RFID access control: support
  • function: intercom / unlock / monitor
  • power supply control: 12V 3A
  • monitor amount: two monitors
Product Description

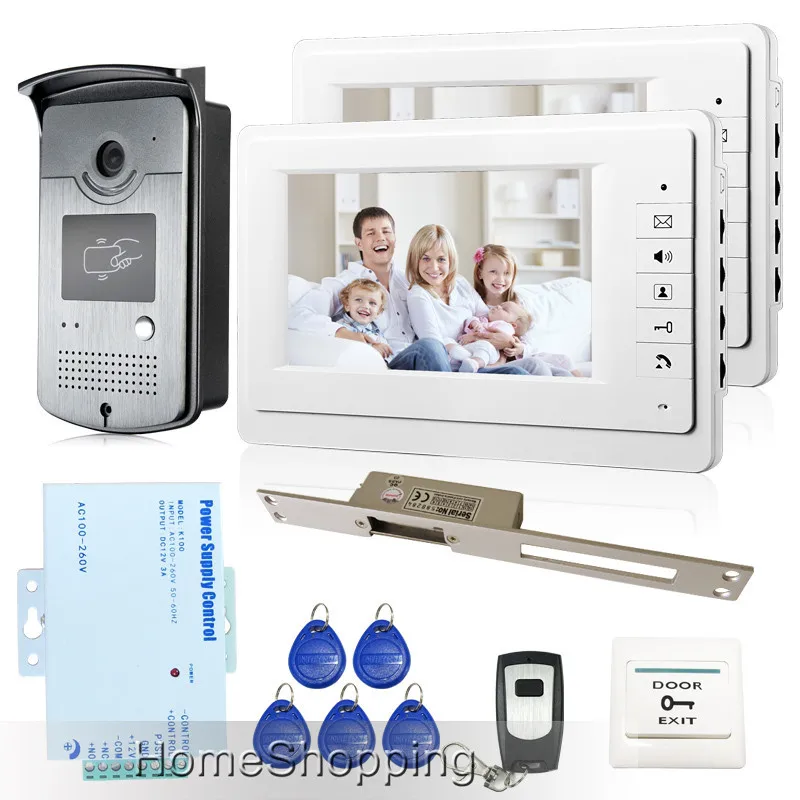

WIRED 7" TFT LCD HOME VIDEO INTERCOM SYSTEM

700 TVL Camera, Clearer Video!
Unlock Via Remote control, ID keyfobs!



aeProduct.getSubject()




Description

Brand New Wired Video Doorphone, High - definition cameras and Night vision, Remote control open the door , 7 inch Digital High-definition TFT-LCD for Indoor Monitor. With micro-processing technology, auto-remote control, excellent performance and hight reliability. This Hard-wired Video Door phone Intercom System consists of one 7\'\' color TFT monitor and one camera. Upgraded chips are adopted for highly stable performance and it has a nice appearance. It is your perfect choice to use in villas with 700 lines CMOS camera, which can achieve monitoring, dual-way intercom and unlocking. You also can monitor outside image even without people pressing the Monitor button on the Indoor unit.





In order to satisfy most of the customers, a complete doorphone system with 5 RFID keyfobs, electric door strike lock, power supply, exit release button, remote controller have been launched. With this full kit, it will be more convenient to build the full access control system for the home security. You can open the door lock either from indoor or outdoor through several methods.



Features

  • 7" TFT digital color LCD;
  • 16 melodies for ringing selection;
  • Show outdoor image manually.
  • Dual-way intercom;
  • Supports communication between two indoor monitors.
  • Monitor unlock control;
  • Clear night-viewing, 24 hours monitoring, calling, speaking and unlocking remote controlling etc.
  • TFT color screen with low power consumption, no radiation and high definition Resolution: 800*480.
  • Hands-free intercommunication.
  • Brightness, chroma and volume adjustable
  • Ring cancel function, do not disturb mode.
  • Comes with 5 RFID keyfobs, a push release button switch.
  • Support maximum 500 rfid keyfobs.
  • With micro-processing technology, auto-remote control, excellent performance and high Reliability.
  • This system supports 4(optional) and 4 outdoor cameras at most.(It needs a controller when install 2/3/4 outdoor cameras, please contact us if you want to install 2/3/4 cameras)



Details

It is a door phone which can show you what is going on outside doors on a clearly 7" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.


aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

aeProduct.getSubject()

aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()aeProduct.getSubject()

Remote Control

If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:





aeProduct.getSubject()

Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.



  • It controls electric lock directly.

  • Can reduce the load of access controller, save wiring to reduce the hidden trouble

  • Based delay control circuit, lock time can be in 0-15 seconds

  • Automatic protection function, unexpected situations such as when the power supply
  • short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

  • Operative device: E/M Lock, Access Controller, Exit Push Button.
aeProduct.getSubject()



Electric Strike Lock

aeProduct.getSubject()

This electric strike is perfect choice to entry a building with card, biometric, code, or any other remote controlled open/close. Ideal for security doors, building entrance/exits.





  • NC Mode - (Locked while supplied with power) Unlock Safe Mode.
  • If you need NO mode, please contact us before bidding.
  • Made of Stainless Steele
  • Performance Testing: 1000000 times aging test
  • Opening Mode: 90 degree swinging door
  • Authority Certification: CE & MA Approve
  • Application: wood door, metal door, pvc door
  • Working Voltage: 12VDC
  • Working Current: 0.2-0.45A
  • Weight: 400g
  • Dimension (Face Plate): 250mmx25mmx 31mm
  • Pack includes: One electric strike lock
aeProduct.getSubject()

Wiring

aeProduct.getSubject()

Note:
  • We provide 4-core or 5-core or 6-cables.(please see the packaging contents.)
  • The cables are very easy to be found in your local market as they are international standard.
  • We suggest testing the door phone kit with our original cable before installation, and the distance between the units should not be too close(3 meters distance may be OK) while testing, or it will cause noise sound.
  • The total length of the connection cables can NOT exceed 100 meters.
  • If your cable is too long and NOT thick enough,Not pure copper, it will cause many problems, please check the wiring requirement.
      0.2mm2 0.5mm2 1.0mm2
    Indoor to outdoor max distance 30m 50m 100m
    Indoor to indoor max distance 20m 50m 100m
    Outdoor to Electric lock max distance 2m 3m 5m





Specification





Indoor Monitor
LCD Screen 7" TFT
Resolution 800x480
Calling duration About 120 seconds
Monitor duration About 60 seconds
Power Consumption Working: 9W; Standby: 2W
Adapter Input AC 100-240V, 0.6A, 50/60Hz
Adapter Output DC 15V, 2000mA
Working Temperature -30 ~ 50 Celsius
Installation Wall mounting
Material PMMA and ABS
Size 240(L) * 150(W) * 26(H)mm
Net Weight 500g
Outdoor Camera
Camera Lens 1/3" CMOS
Resolution 700TVL
illumination 0LUX / F1.2
Night Vision Visible within 1m
Power Supply DC 15V, 0.5A
Working Temperature -30 ~ 50 Celsius
Case Alunimum panels
Installation Wall mounting
Size 174(L) *96(W) * 36(H)mm
Net Weight 640g



Package

NOTE: We have the user manual in English , French, Spanish and Russian language.
We send the user manual in English/Russian language in default, please leave us message if you want the user manual in other language.

aeProduct.getSubject()

aeProduct.getSubject()











customer_service-Greentech

Payment

We accept Alipay, West Union, TT. All major credit cards are accepted through secure payment processor ESCROW before placing your order, please confirm details with us if you have request on items.

Shipping

1. When you place an order, please choose a shipping method and pay for the order including the shipping fee. We will send the items within 3 days once your payment is completed.

2. We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.

Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery.

We will not refund shipping charges for refused shipments.

3. The shipping cost does not include any import taxes, and buyers are responsible for customs duties.

4. We only ship to the confirmed address provided by Alipay. Before you pay, please make sure your address and phone number in Alipay address notes for safe shipping.

5. If your address is remote area of DHL / FEDEX fast shipping and you want DHL/FEDEX shipping, then you needs to pay extra 30USD for the remote area cost.

Return

1. We will refund you if you return the items within 30 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are in their original conditions.

 2. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund.  The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.

Warranty & Maintenance

30 Days Money Back Guarantee:

If you are not satisfied with the item purchased from us. Please inform us in writing within 30 days of receipt of goods. We will guide you to return and refund the item. Please note that the postages / custom fees(if any) spended in such an order are on the customer\'s cost.

Free Replacement:

If you receive a not-as-described (e.g. defective, incorrect, part missing) item, please contact us when you get the item. We will arrange a replacement as soon as the case is confirmed.

Suppliers Warranty:

We offer ONE YEAR warranty on this product. If your item has any warranty issue, please contact us for a satisfying solution.

Feedback:

Your satisfaction and positive feedback is very important to us.  Please leave positive feedback and 5 stars if you are satisfied with our items and services.

If you have any problems with our items or services, please feel free to contact us first before you leave negative feedback.  We will do our best to solve any problems and provide you with the best customer services.

Packaging Details
  • Unit Type: piece
  • Package Weight: 3.5kg (7.72lb.)
  • Package Size: 30cm x 23cm x 23cm (11.81in x 9.06in x 9.06in)
