Item specifics
  • Communication Interface: Wireless
  • Samrt Home Interface: No
  • Access Control: Inductive Card
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Technology: Digital
  • Brand Name: SYSD
  • Zone Input: None
  • Resolution: 420TVLine
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 92
  • Connection Method: Wireless
  • Doorbell: Yes
  • Model Number: SY818MJ11
  • Power: 15V DC
  • Kit Configuration: One to One video doorphone
  • Material: Metal ABS
  • Installation: Wall Mounting
  • Display Screen Type: Color
  • Waterproof: Yes
  • Camera: Color
  • Power: 110V-220V
  • 7" doorbell: video door phone system
  • Doorbell camera: Video doorbell
  • Door intercom: video intercom
  • Door bell : video intercom monitor
Product Description

Luxury & HD 7" TFT Door Monitor Video Intercom Home Door Phone Recorder System Supported Doorbell Camera Intercom Kit Waterproof Rain Cover



We are professional manufacturer of video door phone.High Quality promise.

20160927d818MJW (14

Product main functions:

1, photo and video archive functions: master is not at home, have a guest visit, and as long as the light ring the bell, and automatically take pictures or videos automatically stored (can only set up a kind of way), the master came back free query, not miss any important meetings.
2, visual intercom function: have a guest come to visit, pressed the doorbell and intercom call freely, voice is clear, such as before;

The function and characteristics:
1, 2.4 G transmission frequency, barrier-free communication distance of about 150 m;
2, USES the digital processing technology, automatic wireless transceiver functions, good performance, high reliability;

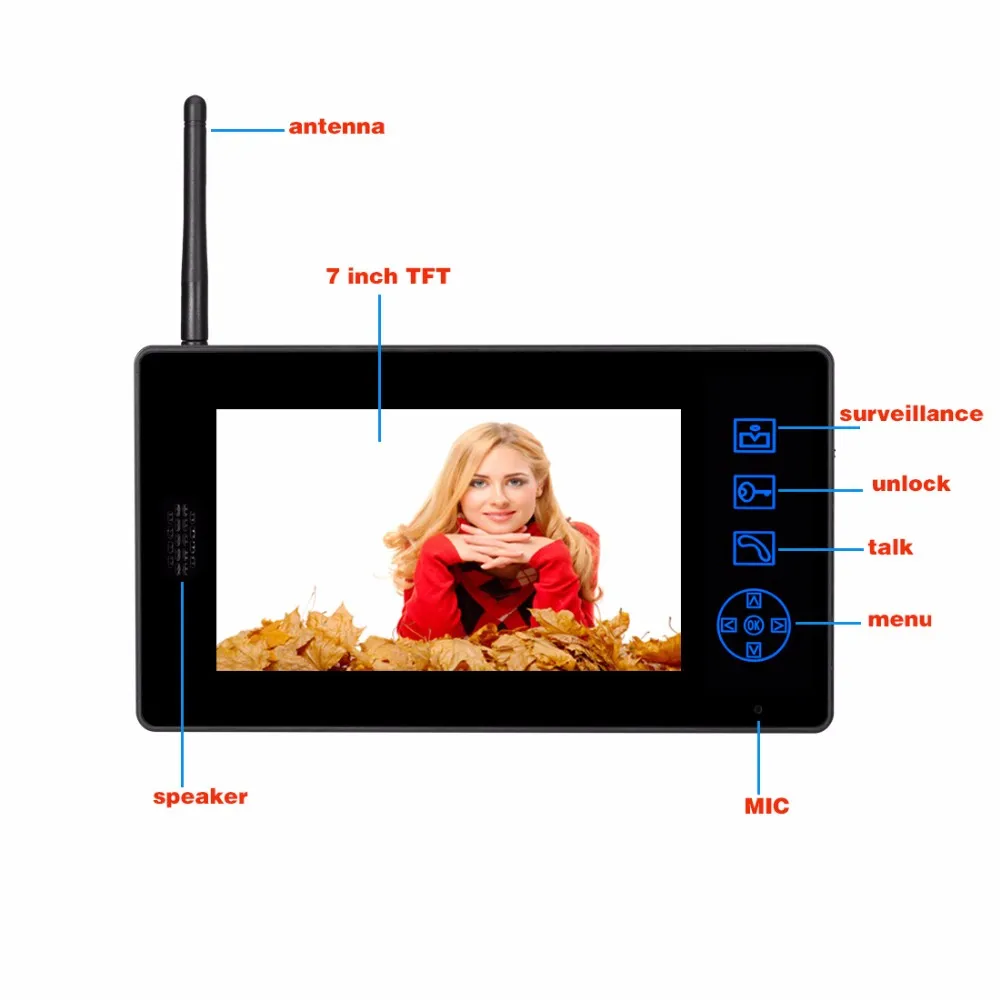

3, indoor machine use TFT true color display 7 inch digital;
4, outdoor use CMOS 100 megapixel digital camera;
5, clear night vision function, and can realize 24-hour call, intercom, lock, etc;
6, indoor machine automatically by the outdoor take photos or video recording.
3. Display parameters


Screen size: 7 inches
Display size: 235 * 130 * 20 mm
The LCD resolution: 800 * 480
Image resolution: 640 * 480
Main functions: monitoring, video, photo, video intercom, open the lock.
Extended memory: maximum support 32 gb TF card (standard does not include memory card)
Video formats: the ASF (can be directly playback, computers should be installed with the software to play)
State of a single picture: 640 * 480 @ 25 FPS
Four images status: 320 * 240 @ 25 FPS
Photo format: 640 * 480 JPG
power input: 100-100,50/60 hz
The power output: 5 v / 2 a
Video output formats: PAL and NTSC
video output: 1vp - p CVBS
Working current: less than or equal to 400 ma
Operating frequency: 2.4 GISM digital public spectrum

outdoor camera:
Camera: 1/4" CMOS
Camera lens: 3.6mm
Camera viewing angle: 92 degrees
Call duration time: 30-120 Seconds Adjustable
Monitor duration time: 30-120 Seconds or long times
Power consumption: Static state <0.5W, calling <10W
Power input: AC 100V-240V 50/60 Hz
Power output: DC5V
Operating frequency: 2.4 GISM digital public spectrum
Outdoor camera:168*110 *65mm
20160927d818MJW (12)20160927d818MJW (2)

20160927d818MJW (12)20160927d818MJW (11)20160927d818MJW (7)20160927d818MJW (6)20160927d818MJW (13)20160927d818MJW (8)20160927d818MJW (9)20160927d818MJW (10)
20160927d818MJW (4)20160927d818MJW (2)20160927d818MJW (1)20160927d818MJW (5)
The standard accessories:
1 * indor monitor
1 * outdoor camera
2 * 3.7 V lithium battery
2 * power adapter
1 * screw package
1 * 5 core terminal
1 * user menual

1245






Packaging Details
  • Unit Type: piece
  • Package Weight: 1.2kg (2.65lb.)
  • Package Size: 30cm x 30cm x 10cm (11.81in x 11.81in x 3.94in)
