Item specifics
  • Sensor Size(Inch): 1/3
  • Communication Interface: Wired
  • Samrt Home Interface: No
  • Access Control: None
  • Material: METAL ABS
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Brand Name: JERUAN
  • Zone Input: None
  • Kit Configuration: One to Two video doorphone
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Technology: Analog
  • Viewing Angle (°): 92
  • Power: 15V DC
  • Doorbell: Yes
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Model Number: JEX801-C4-2
  • Camera: Color
  • Display Screen Size(inch): 8 inch TFT screen
  • Power: 100V~240V
  • Resolution: 600TVL line
  • Color: Black
  • Connectivity: Wired
  • Monitor Size: 8" TFT LCD (4 : 3)
  • Resolution: 800 x 600 pixels
  • Camera: 600TVL
Product Description

801-C45

Features:

  • This package includes 2 Indoor Monitor + 1 Outdoor Camera
  • 8" (4:3) TFT LCD Screen
  • 1/3" CMOS outdoor camera
  • High quality dual-way audio communication
  • Outdoor monitoring function
  • Support video recording and photo taking functions

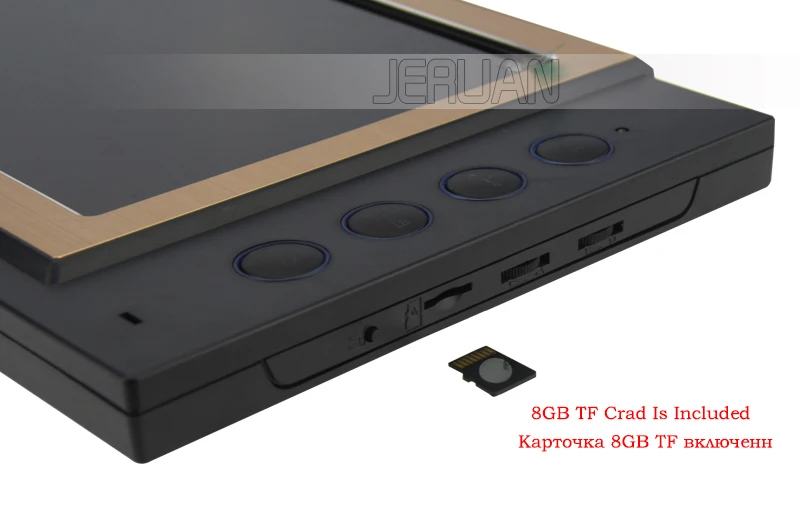

  • System supports SD card up to 32GB

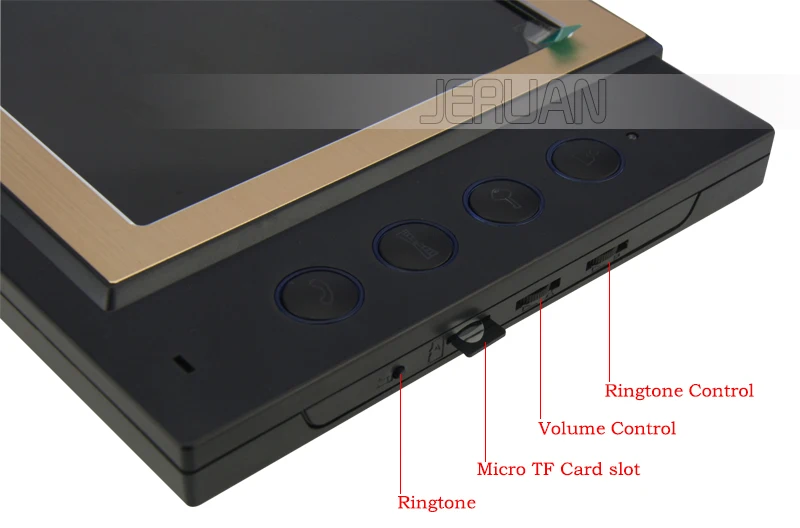

  • Volume, brightness and chroma are adjustable
  • Do not disturb mode
  • Infrared night vision supported
  • Hands-free intercom
  • Electronically unlocking control
  • 24 kinds of polyphonic chord ringtones
  • Low standby power consumption: <1.1

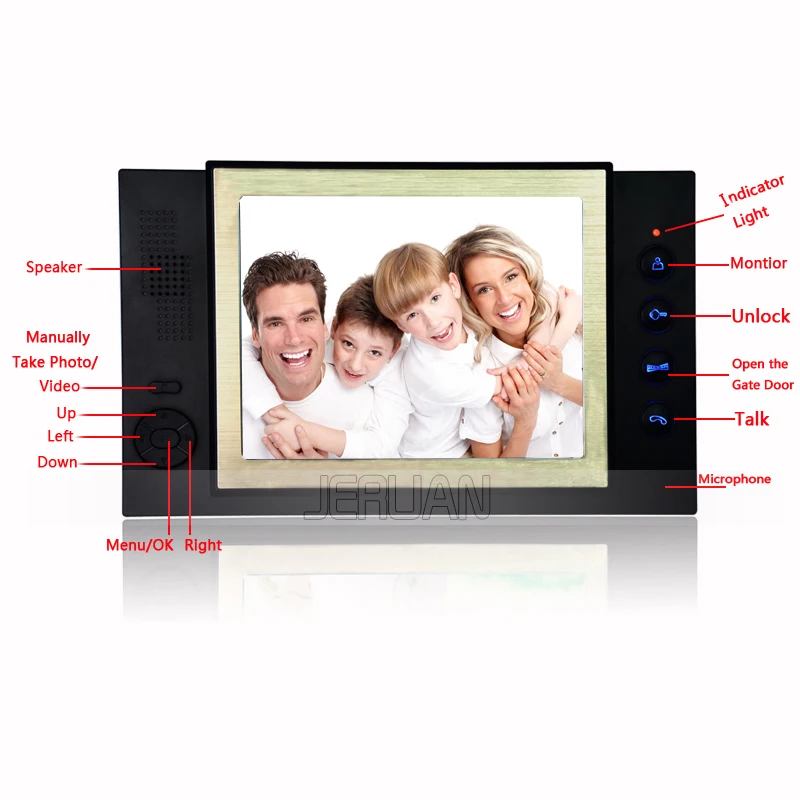

Indoor Unit Specification:

Screen size: 8`` (4:3 display)
Resolution:  digital:800(RGB)×600Pixel
Visual angle: up 50 degree, down 70 degree, left or right 70 degree
Brightness: 200cd/centiare
Ringtone: 24 chorded polyphonic ringtone
Sensitivity: 56db
Signal system:  PAL/NTSC (optional)
Input voltage: AC 100V-240V ~ 50Hz/60Hz
Overall Power Consumption: ≤6W(400mA)
Stand-by Power Consumption: <1.1W
Power Adapter Specifications: DC 15V 1000-1500mA
Talk Time Delay:  120S±10%
Monitor Time Delay:  40S±10%
Effective distance: 200M(4×0.75mm⊃2;)
Operating Temperature :-20~+60 degree
Relative humidity: 10%~90%(KH)
Size: 274mm*170mm*23mm(L*W*H)
support:Photo Taking / Video Recording
Weight: 570g
Model:801R

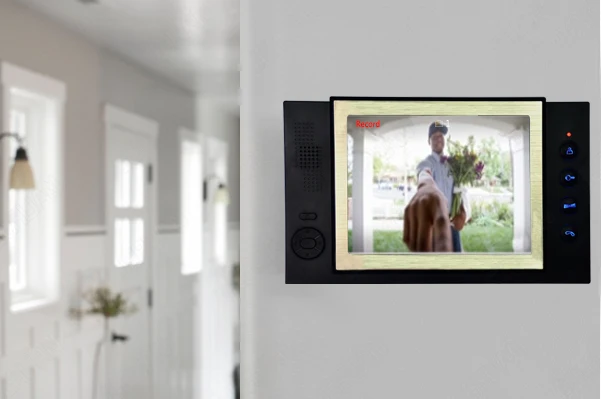

Installation: Wall mounted

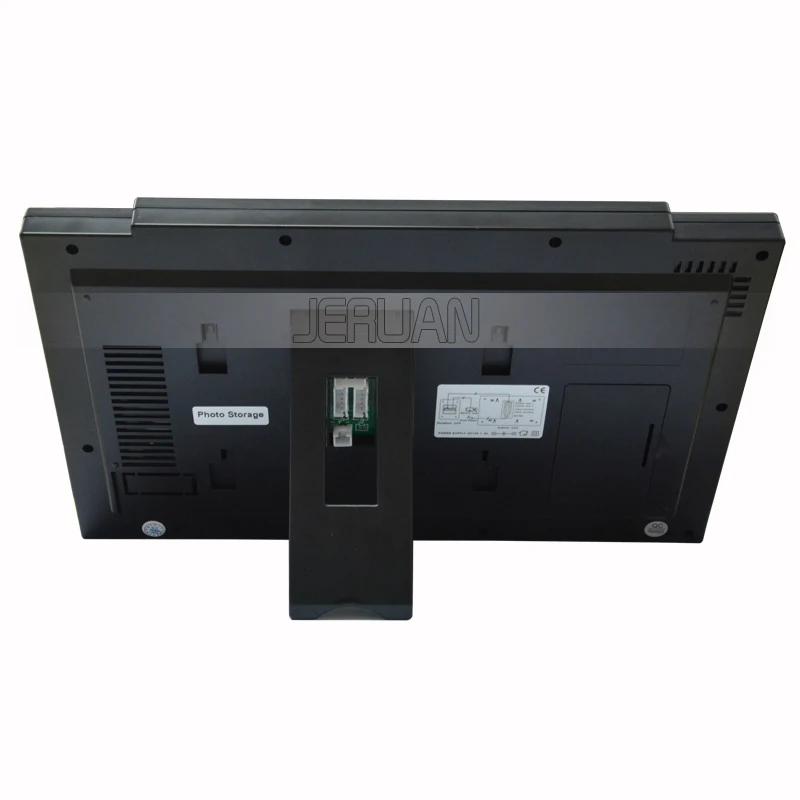

Indoor unit installation method: wall-mounted type

Outdoor Unit Specification:

Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Resolution: 700 TVL
Lens: 2.3mm
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle:  92 degree
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Outdoor infrared night vision function: 10 LUX infrared
Operating Temperature:-20~+60 degree
Material: METAL
Size: 185mm*93mm*30mm(L*W*H)
Model: C4-2
Outdoor unit installation method: embedded or wall-mounted type

Photo/Recording:
The unit is with build in 2M memory(can store 50pcs photos),also you can insert external memory card into the system for photo/ recording ,It will photo automatically and make a 15S video once the visitor pressing the outdoor camera call bottom .
if the memory is full , The new file will overwrite the earlier file automatically(Note: the item should be installed with TF card in advance).
801H
801 1 801 (1) 801 (4) 801 (7) 801 2 801 3
out





C4-2-1C4-2-2C4-2-3C4-2-4C4-2-5C4-2-6C4-2-7

wiring

2SS





Package includes:

801H-D8-2w
