Item specifics
  • Waterproof: No
  • Type: Intercom System
  • Communication Interface: Wired
  • Camera Sensor type: CMOS
  • Display Screen Size(inch): 7
  • Answering Mode: Hands-free
  • Connection Method: Wired
  • Kit Configuration: One to Four Video Doorphone
  • Installation: Wall Mounting
  • Display Screen Type: Color
  • Viewing Angle (°): Up 50 degree, down 70 degree, left or right 70 deg
  • Type: Video Intercom
  • Model: WD02K14
  • Visual angle: Up 50 degree, down 70 degree, left or right 70 deg
  • Connectivity: Wired
  • Country/Region of Manufacture: China
Product Description

1. Applied ultra high definition camera board, with good camera shooting effect.

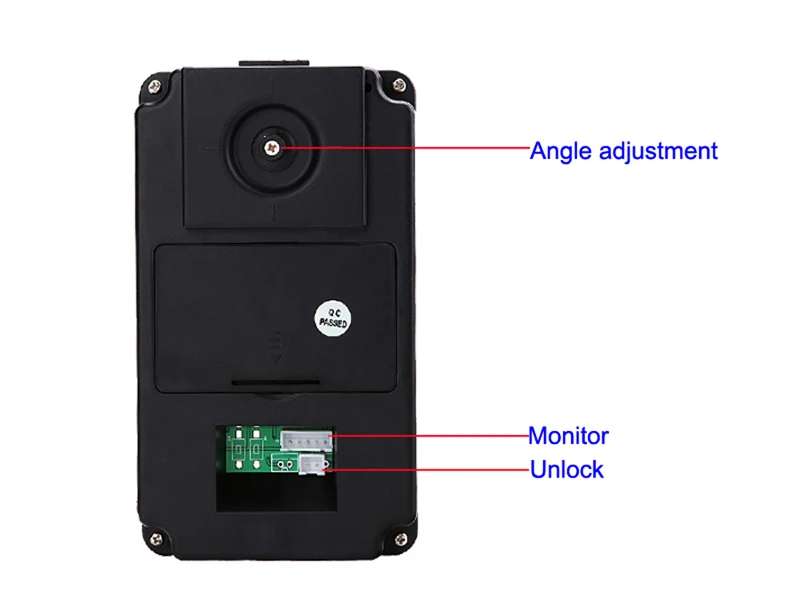

2. The lens viewing angle can be adjusted up and down according to need.
3. Hands-free talkback function.
4. Electronic control lock function.
5. High Sensitivity touches keys.
6. The indoor unit can be wall-mounted, it can be placed on the desktop.
7. Outdoor monitoring function.
8. Indoor mutual talkback function.

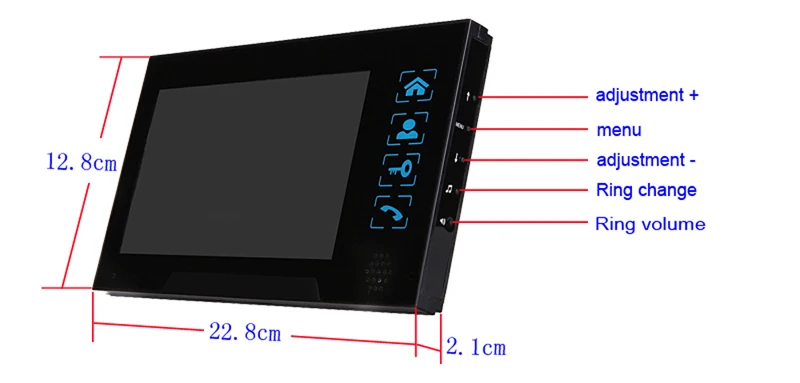

9. Brightness, color and sound volume of indoor phone can be adjusted.
10. Indoor phone has thin design, all of this makes its luxurious high-quality decorative style.
11. There are 25 pieces beautiful chord music ringtone can be chosen.
12. Outdoor station is exquisite and durable; it has function of viewing at night by infrared.
13. The available distance is 200M to connect the connection wire; he guide line with 4×0.75MM square meter can be used. it will not affect the picture it shows and talkback.
14.Complete accessories are attached, users can install the machine by the mselves according to the "Operation Instructions", they also can enjoy the happiness which is from the installation.
15.packagesize 260mm×240mm×150mm
gross weight 3400g

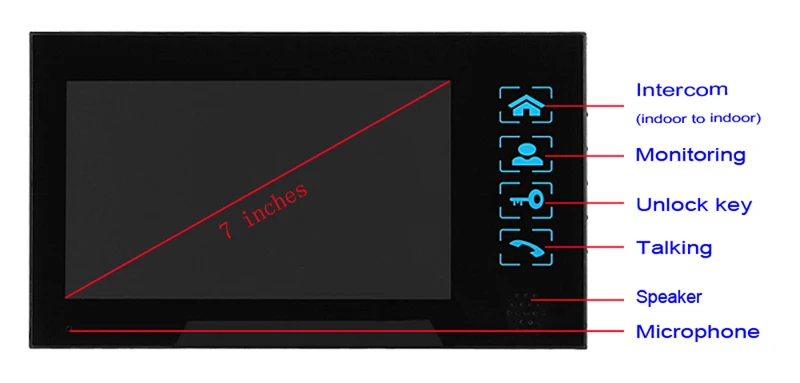

Indoor Unit Specification

Screen size: 7"(16:9 display)
Resolution: digital: 800×(RGB)×480
Visual angle: up 50 degree, down 70 degree, left or right 70 degree
Brightness: 200cd/M2
Ringtone: chorded polyphonic ringtone
Sensitivity: 58db
Signal system: PAL/NTSC (optional)
Input voltage: AC 100V-240V~ 50Hz/60Hz
Overall Power Consumption: <6W(400mA)
Stand-by Power Consumption: <1.1W
Power Adapter Specifications: DC 15V 2000mA
Talk Time Delay: 120S±10%
Monitor Time Delay: 60S±10%
Effective distance: 200M(4×0.75M)
Operating Temperature: -20°C ~+55°C
Relative humidity: 10%~85%(KH)
Indoor unit installation method: wall-mounted type

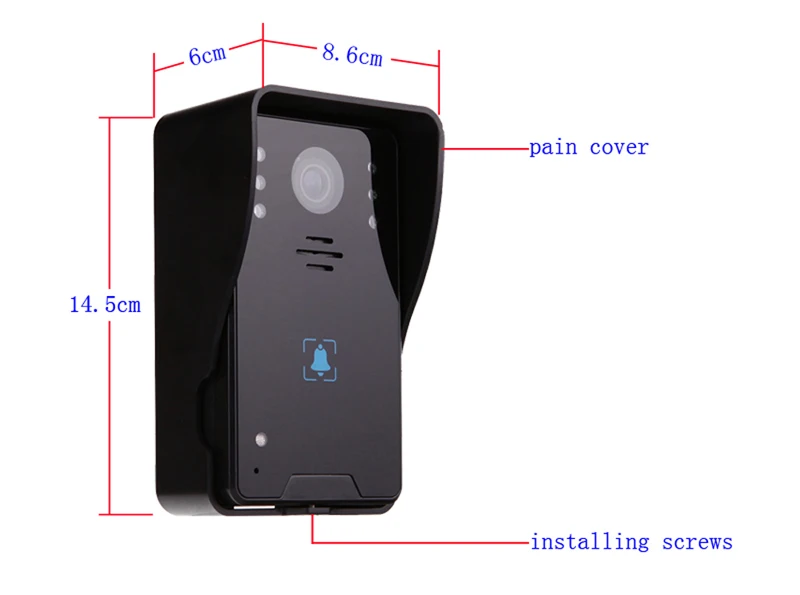

Outdoor Unit Specification

Infrared lamp lighting distance: approximate 4 meters
Gain control: auto
Talk time delay: 120S±10%
Image transmission distance: approximate 200 meters
Visual angle: <92°/<120°(optional)
KW: <2W
Power: DC 15V (provided by the extension phone directly)
Camera : High definition and colorful CMOS/CCD(optional)
Operating Temperature: -20°C~+55°C


1. Indoor unit x4
2. Outdoor unit x1
3. Connection cable x4
4. Power adaptor x4
5. Electric lock cable x1
6. Screw kit x4

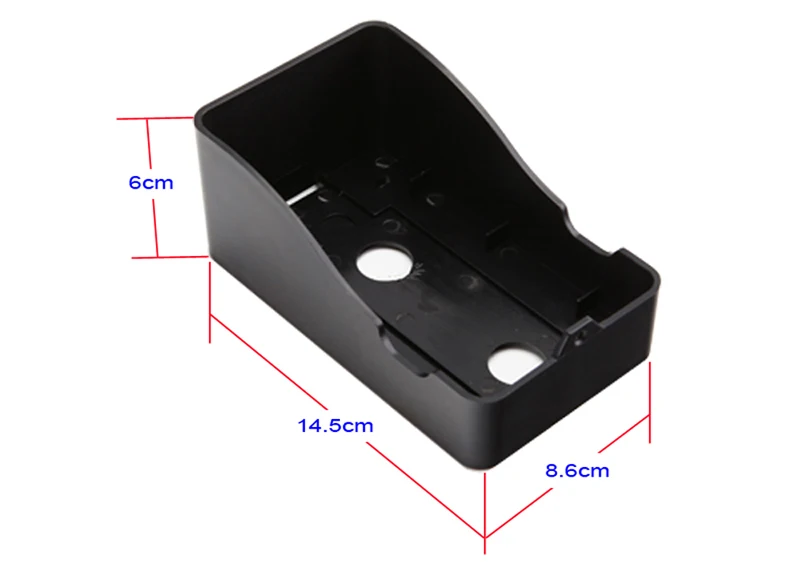

7. Pain cover x1

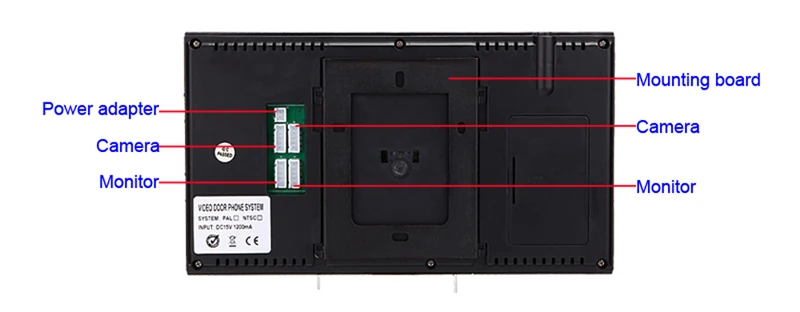

8. Mounting board x4
