Item specifics
  • Waterproof: Yes
  • Type: Intercom System
  • Communication Interface: Wireless
  • Technology: Digital
  • Camera Sensor type: CMOS
  • Zone Input: None
  • Access Control: Password
  • Samrt Home Interface: No
  • Answering Mode: Hands-free
  • Connection Method: Wireless
  • IP Camera Interface: Yes
  • Installation: Wall Mounting
  • Display Screen Type: Color
  • Display Screen Size(inch): No screen
  • Kit Configuration: 1 doorbell camera+1 electronic lock+1 door chime
  • Viewing Angle (°): other
  • Camera : High Definition 1.0MP
  • Connection: WIFI/ RJ45 Ethernet Cable
  • Support system: IOS/Android system phone and tablet
  • Color: default Silver color, golden color optional
  • Material: Aluminum Alloy Panel
  • Feature1: Anti Vandal,Dustproof, Waterproof
  • Feature2: Wireless Door Chime / IP Camera
  • Feature3: Support P2P and 10 mobile users
  • Feature4: Motion Detection, Snap&Recording
Product Description

Password/RFID Card Access Control Intercom System,1 Night Vision Doorbell Camera+1 Mute Electronic Lock+1 Dingdong Doorbell,Free Shipping



Feature

  • 1.0MP High Definition outdoor camera

  • Support password unlock the door, monitoring, unlocking and talking by mobile phone

  • Max. Support 10 mobile users, each phone support intercom and transfer function

  • Support IOS/Android system phone and tablet

  • With POE for quicky&easy install

  • WIFI Enabled or Wired Router

  • P2P Protocol

  • Independent servers all over the world

  • Separate antenna and outdoor station

  • Connection: WIFI/ RJ45 Ethernet Cable

  • Dual way communication

  • In-call ringtone alert

  • Snap&Recording

  • Motion Detection

  • Support limitless IP camera and wireless door chime

Specification of camera



System

Main Processor

Embedded microcontroller Hi3518E

Operation System

Embedded LINUX operation system

Video

Image Sensor

CMOS 1.0 Megapixel

Compression

H.264

Video Standard

PAL

Picture Resolution

1280*720, 640*480, 320*240

Video Quality

VGA@25FPS

Motion Dection

Yes

Low Illumination

0.1LUX/F1.2

Snap picture

Yes

Audio

Code Standards

G.711A

Audio Input

Built-in 38dB Microphone

Audio Output

Built-in 8OΩ, 1Watt loudspeaker

Recording

Recording Mode

Manual, Calling, Alarm

Recording Storage

Save in machine TF card or cell phone TF Card

Alarm

Alarm Input

Tamper alarm, wrong passward 5 times alarm triggle, Card error 5 times alarm triggle, Magnetic Lock alarm trigger

Triggle Alarm

Alarm for record, snapshot pushed to the phone or tablet

Unlock

Unlock Methods

APP password verify unlock, outdoor station password unlock, RFID card unlock

Device unlock

2 (dry contact)

Safety Insulation Unlock

Wireless verify unlock, Communication verify unlock(optional)

Indoor Device

Indoor Monitor

Support connecting wireless door chime and limitless IP cameras

Others

Network

RJ45 interface, 10/100 auto-adaptation

TF

1 TF card interface

Wifi

Support 802.11. b/g/n

Power

DV 5V 1A

Back up power

1000MAH/ 3.7V

Power consumption

1.5 W

Operation Temp.

-40°C-+50°C

Working condition

IP65

Size

(L)210MM*(W)95MM*(T)33MM, Wall hole size: 95MM(W)*200MM(L)*33MM(H)

Installtion

Embedded

Support system

Android, IOS





Specification of electronic lock

Working voltage:12-18VDC The max voltage drop:1VDC

Active current:<350mA Energizing time: < 1 sec

Unlock power:4W Noise:<30DB

Operating temp:-40-80 Humidity:70%

Dielectric strength:250V(2 minutes without breakdown)

Life:>1million times



Specification of wireless doorbell

Frequency: 433.92MHZ±1MHZ

Power supply(chime):AC 220V-250V AC 110V

Operating range(open area): up to 120m

Sound options:16 polyphonic melody 36 music

Size: 510×390×520mm

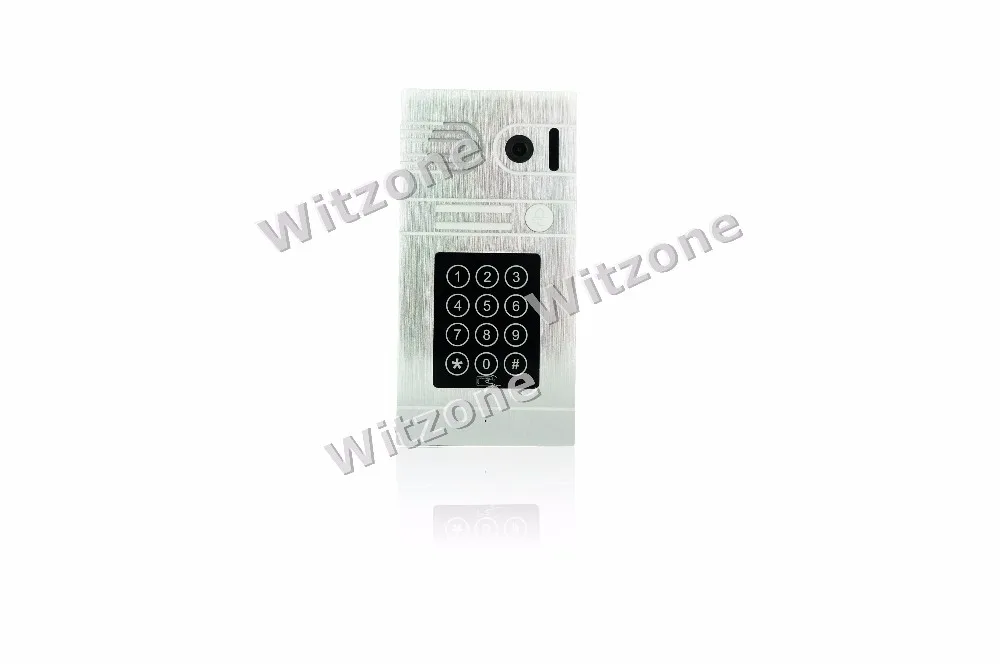

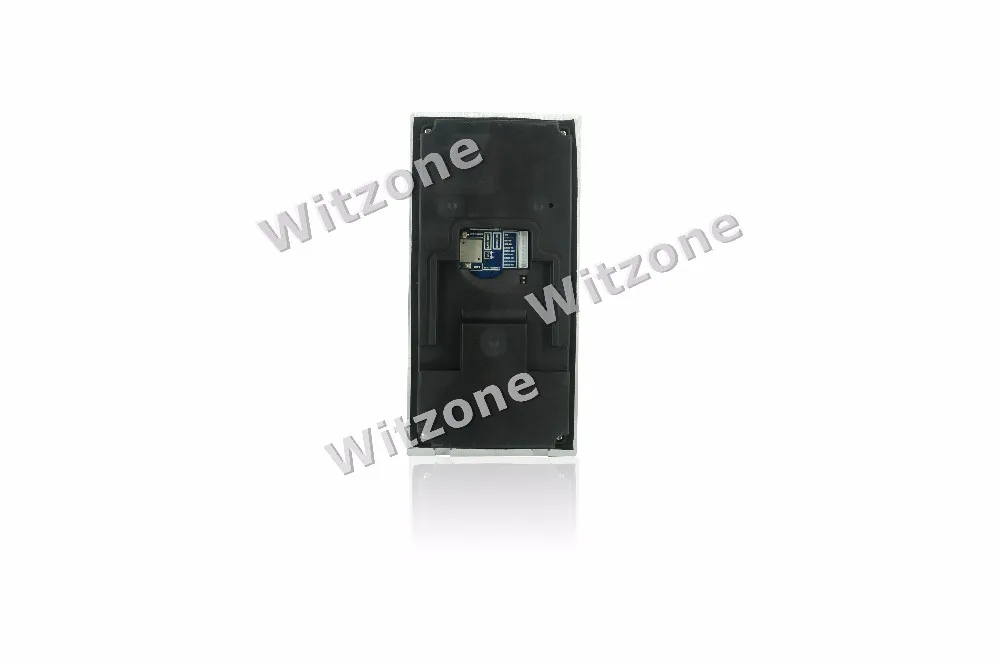

Product Show

   DSC_0023DSC_0030DSC_0027DSC_0025

IMG_0248IMG_0252



Connection



1.Connect with wireless door chime and two electronic locks

2. WIFI or RJ 45 optional

3.Features











Installation







Packaging:



Package Content:

1pc outdoor station; 1pc antenna; 1pc adapter; 1pc english user manual; bracket and screws

1pc mute electronic lock

1pc wireless doorbell





 Pls advise what plug you need, or we will send EU plug as default.

Also advise if you need   low value invoice  , or we will show full price in the customs invoice.







HTB1uDtDJFXXXXbkXVXXq6xXFXXXo













Packaging Details
  • Unit Type: Set
  • Package Weight: 2.88kg (6.35lb.)
  • Package Size: 22cm x 15cm x 10cm (8.66in x 5.91in x 3.94in)
