Item specifics
  • Sensor Size(Inch): 1/3
  • Model Number: V80P-ID
  • Samrt Home Interface: No
  • Communication Interface: Wired
  • Access Control: Inductive Card
  • Display Screen Size(inch): 7
  • Power: AC 110V - 240V
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Technology: Digital
  • Zone Input: None
  • Type: Intercom System
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 90
  • Doorbell: Yes
  • Kit Configuration: One to One video doorphone
  • Size: 228 x 114 x 20mm
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Brand Name: DIYSECUR
  • Material: Plastic
  • Camera: Colours
  • Power: AC 110V - 240V
  • Resolution: 700TVLine
Product Description









HTB19VSpKVXXXX





Video Record 7" Video Door Phone Intercom System Keyfobs Unlocking



1 x Outdoor Unit & 1 x Indoor Monitor

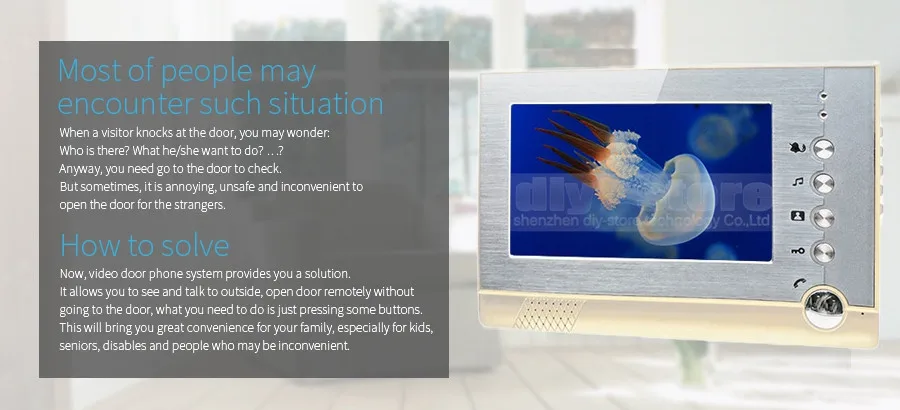

Why Do You Need A Video Door Phone Intercom System
6xXFXXXT



Description

Video door phone is a system that enables you to receive "calls" from your front door or some other door on the outside of your building, which enables you to actually see who is at the outside station and talk to them. It will add security and peace of mind to your house.
The item you are watching now is our new arrival video door phone system. It has nice appearance and excellent performance. About the outdoor unit, a 700tvl camera lets you see clearly who is at the door, built-in led lights enhance the night view, the cast-iron aluminum alloy panel and rainproof cover provide a good protection for it. About indoor monitor, a 7” LCD color screen gives you great view, with SD card slot, with both auto-photo & video record function . Besides, it is wire system, the installation is not difficult, both of the outdoor unit and indoor unit have plug-and-play connector. It is a great system for home intercom and security.
It supports Handsfree Dual-way Intercom, Indoor Monitoring, Indoor Unlocking, Night Vision, Mute Mode and Keyfobs Unlocking. It contains 1 outdoor unit and 1 indoor unit. It supports Max 2 outdoor units and 6 indoor units, if you need more cameras and monitors, please feel free to contact us. (For 2 outdoor unit kit, you need a mutil door controller; for 5 or 6 indoor units kit, you need a mutil monitor amplifer.)













Main Functions


TB2z21212TB2zNH14079167586899147XXXcuXXXXXXXXXXX302539457











If you use NO lock, you can connect it to outdoor unit directly without extra power supply. But for an NC strike lock or magnetic lock, you need to add an extra 12V power supply module. We can provide such power supply module, electrical lock, remote controller and exit button, if you need these kits, please contact us for quotation.



00










Applications

This apartment door phone system is mostly used in 6 units apartment or 6 families house, which allows the vistor call separate room directly.








Other options

We provide more options for the outdoor and indoor unit. There are several models that you can choose as you wish, please contact us for quotation with the model.



HTB1JhBVKVXXXXb9XXXXq6xXFXXXw













Specifications:



Outdoor Camera
Model No. ID
Night Vision 5 LED Light, visible within 2 meters
Vision Angle 90 Wide Angle
Resolution 700 TV Line
Plus Control Automatically
Power Consumption Standby: 0.1W; Working: 4W
Working temperature -10°c~+55°c
Installation Wall mounted
Material Aluminum alloy and ABS
Size 173(L)*96(W)*43(H)mm
Net Weight 380g
Indoor Monitor
Model No. V80P
Screen 7\'\' wide angle TFT LCD, 16:9 Display
Resolution 800*RGB*480
Power input AC100V-240V 50Hz-60Hz
Delay Calling time 120s 10%
Delay Monitoring time 40s 10%
Valid Distance 100M (4x0.75 mm2)
Power Consumption Standby: 0.5W; Working: 8W
Adapter Input AC100~ 240V, 50/60Hz
Adapter Output DC 15V
Working Temperature -40°c~+70°c
Standby Temperature -20°c~+60°c
Installation Wall mounted/lift on desk
Size 230(L)*150(W)*27(H)mm
Materail ABS
Net Weight 550g











What\'s in:













HTB1_SXeGFXXXXXGXVXXq6x

Packaging Details
  • Unit Type: piece
  • Package Weight: 1.6kg (3.53lb.)
  • Package Size: 25cm x 20cm x 15cm (9.84in x 7.87in x 5.91in)
