Item specifics
  • Samrt Home Interface: No
  • Communication Interface: Wired
  • Access Control: None
  • Display Screen Size(inch): 7
  • Sensor Size(Inch): 1/4
  • Answering Mode: Hands-free
  • IP Camera Interface: No
  • Technology: Digital
  • Size: Camera:125x52x35mm; Monitor:240x150x26mm
  • Type: Intercom System
  • Power: DC 15V 1.5A
  • Camera Sensor type: CMOS
  • Viewing Angle (°): 92
  • Doorbell: Yes
  • Kit Configuration: One to One video doorphone
  • Brand Name: ELESECUR
  • Model Number: V70E-M3
  • Installation: Wall Mounting
  • Connection Method: Wired
  • Display Screen Type: Color
  • Waterproof: Yes
  • Material: ABS
  • Camera: Color
  • Zone Input: None
  • Power: 110V/220V
  • Resolution: 700TVL
Product Description



New Wired Video Door Intercom Doorbell System 700TVL Rainproof Camera Unit IR Night Vision 7" LCD Color Monitor Home Kit

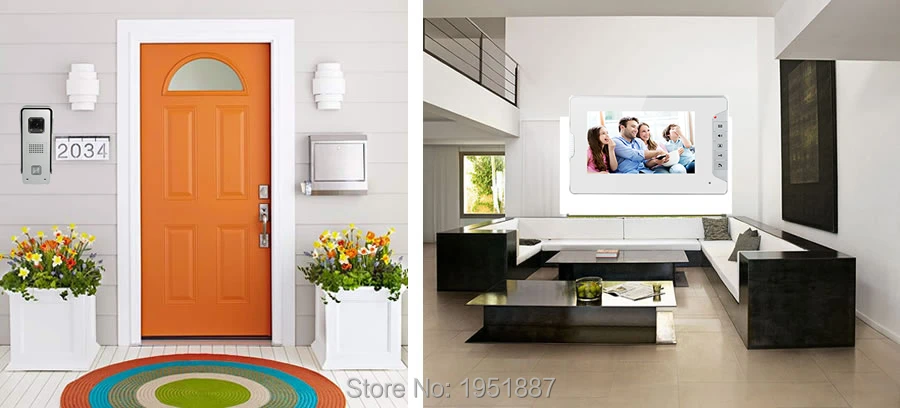

Video door phone system enables you can see and talk to the people outside when the visitor presses the call button. The people inside the house does not need go to the door to check who is at the door, Anyway, this system will bring great convenience for you and your family members, especially for the children, the aged and the disabled. The outdoor unit has 700TVL camera and aluminum alloy outer casing, the indoor unit equips a 7inch LCD Color screen and fashionable white color make it looks more beautiful. It can be widely used in villa house, office, factory and other place needs intercom, it is a good choice for home security and intercom.

This video door phone contains 1 outdoor camera and 1 indoor monitor, it support max 2 outdoor units and 4 monitors. If you need more cameras and monitor, please feel free to contact us.

Main Feature
  • Brand new and excellent performance
  • Fashionable 7Inch color TFT LCD monitor with high resolution
  • High definition 700TVL Camera with aluminum alloy outer casing
  • 2-way intercom and handsfree intercom
  • Bulit-in white light leds provide better night view, enables you see color image at night
  • Indoor monitoring
  • Brightness, chroma and volume adjustable
  • 26-chord melody ringtone for choice
  • Can work with electric lock and support lock-control function
  • Monitor support mute mode and avoid get disturbed at night
  • Support max 100m, 4 wire connection
Main Function
2-Way Intercom

The monitor will ring to remind you that there is a visitor at the door, then you can press the answer button on monitor to talk to outside. Both outdoor unit and monitor has microphone and speaker, enables the visitor can also hear and talk to you.

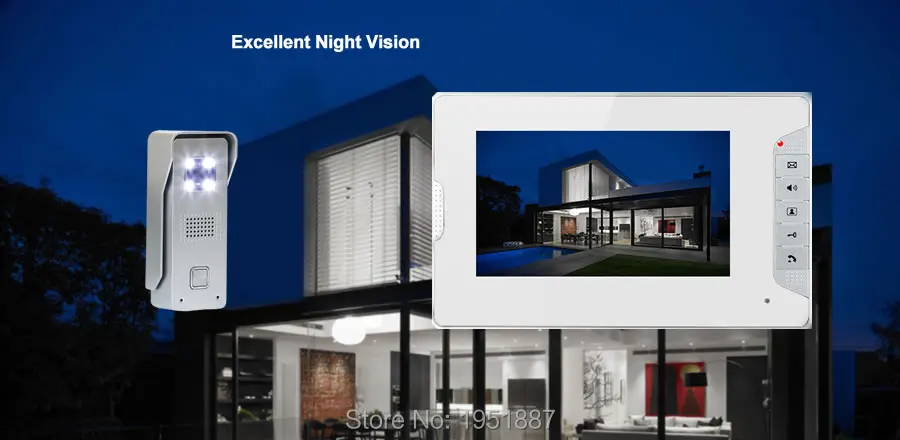

Night Vision

The outdoor unit equips white light leds and IR sensors, the leds will turn on automatically at night. It enables you can see color imgae even at night. This feature is much better than other door phone use IR leds, which can only see black and white image. It is a wonderful design.

Indoor Unlock

The outdoor unit has e-lock port, you can connect an electric lock to the outdoor unit, then you can open the door via Unlock button on monitor. It is a wonderful design. (The lock is not included, if you need, please contact us for quotation)

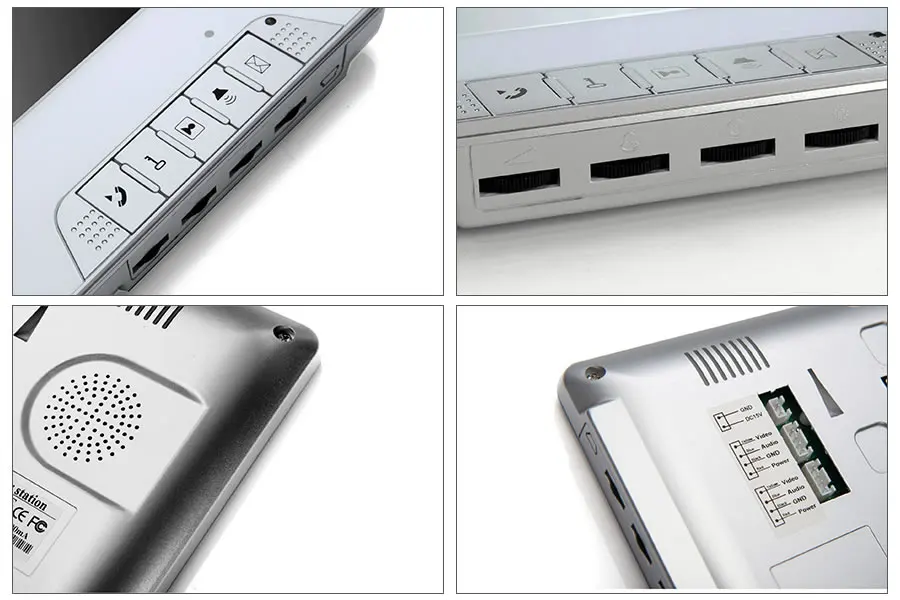

Detail Shown
m3-6 m3-5 m3-4

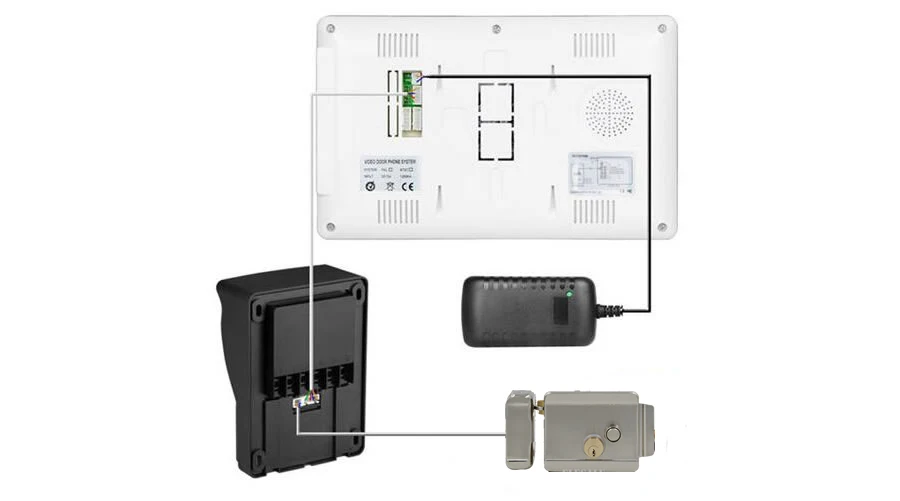

Wiring For Reference

The electric lock in below photo is not included in the package. If you need, please feel free to contact us for quotation.


1, We provide a testing cable in the package, you can buy additional cable to extend the cable from your local market.

2, Please do bench test before installation.

3, In case of the damage during transportation, we place a protective film on the screen. You can tear it down if you do not like it.

4, It supports max 100m. You should use suitable according to the distance.
0-10M: RVV4 *0.3mm2
10-30M: RVV4 *0.5mm2
30-50M: RVV4 *0.75mm2
50-100M:RVV4 *1mm2

Camera Resolution
Night Vision Distance More than 2 meters
Working Temperature -20 degrees ~ +60 degrees
Intensity of Illumination 0.01 lux
Lens 2.3mm, 92degree
Dimension 128x52x40mm(LxWxH)
Installation Surface Mounted
Net Weight 300g
Model M3
Screen 7" LCD Digital 16:9 Display
Effective Pixels 800 x 480
Delay Calling Time 60s+-10%
Delay monitoring time 60s+-10%
Adapter Input AC100 - 240V 50-60HZ
Adapter Output DC15V 1.5A
Unit Consumption Less than 6W, standby less than 0.5W
Working Temperature -20 degree ~ +60degree
Installation Wall mounted
Dimension 240mm(L) x 150mm(W) x 23mm(H)
Weight 500G
Model V70E(white)
